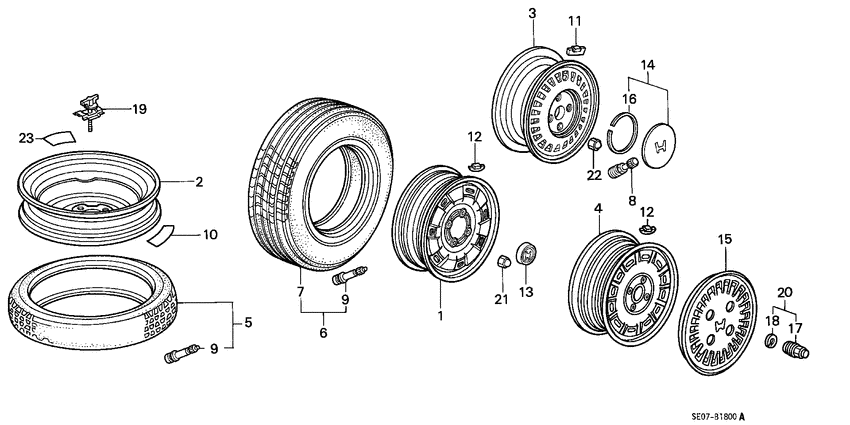

Tire/wheel disk Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42700-SE0-003 DiskWHEEL (13X5J) (KANAI) (ALUMINIUM TONE SILVER) |
42700-SE0-003 |
US $117.12 |
||
|
1
|
1
42700-SE0-004 DiskWHEEL (13X5J) (TOPY) (ALUMINIUM TONE SILVER) |
42700-SE0-004 |
US $117.12 |
||
|
1
|
1
42700-SE0-005 DiskWHEEL (13X5J) (YUNO) (ALUMINIUM TONE SILVER) |
42700-SE0-005 |
US $117.12 |
||
|
2
|
2
42700-SE0-632 DiskWHEEL (13X4T) (TOPY) |
42700-SE0-632 |
US $151.04 |
||
|
2
|
2
42700-SE0-631 DiskWHEEL (13X4T) (KANAI) |
42700-SE0-631 |
US $151.04 |
||
|
3
|
3
42700-SE0-651
Disk
|
42700-SE0-651 |
— | ||
|
5
|
5
42750-SB0-631
Tire assy
|
42750-SB0-631 |
— | ||
|
5
|
5
42750-SB2-612
Tire assy
|
42750-SB2-612 |
— | ||
|
5
|
5
42750-SA0-764
Tire assy
|
42750-SA0-764 |
— | ||
|
6
|
6
42750-SA5-601
Tire assy
|
42750-SA5-601 |
— | ||
|
6
|
6
42750-SA5-625
Tire assy
|
42750-SA5-625 |
— | ||
|
6
|
6
42750-SA5-624
Tire assy
|
42750-SA5-624 |
— | ||
|
8
|
8
42753-SB0-680
Valve assy.
|
42753-SB0-680 |
— | ||
|
9
|
9
42753-634-003 ValveRIM (BRIDGESTONE) |
42753-634-003 |
US $2.01 |
||
| replacement | |||||
|
9
|
9
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
9
|
9
42753-634-006 ValveRIM (YOKOHAMA) |
42753-634-006 |
US $2.01 |
||
| replacement | |||||
|
9
|
9
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
9
|
9
42753-671-962 ValveRIM (DUNLOP) |
42753-671-962 |
US $2.01 |
||
| replacement | |||||
|
9
|
9
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
9
|
9
42753-671-003 ValveRIM (TAIHEIYO) |
42753-671-003 |
US $2.01 |
||
| replacement | |||||
|
9
|
9
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
10
|
10
42767-SE1-F00
Plate
|
42767-SE1-F00 |
— | ||
|
11
|
11
44728-SE0-652
Weight
|
44728-SE0-652 |
— | ||
|
11
|
11
44729-SE0-652
Weight
|
44729-SE0-652 |
— | ||
|
11
|
11
44721-SE0-652
Weight
|
44721-SE0-652 |
— | ||
|
11
|
11
44730-SE0-652
Weight
|
44730-SE0-652 |
— | ||
|
11
|
11
44722-SE0-652
Weight
|
44722-SE0-652 |
— | ||
|
11
|
11
44726-SE0-652
Weight
|
44726-SE0-652 |
— | ||
|
11
|
11
44723-SE0-652
Weight
|
44723-SE0-652 |
— | ||
|
11
|
11
44727-SE0-652
Weight
|
44727-SE0-652 |
— | ||
|
11
|
11
44724-SE0-652
Weight
|
44724-SE0-652 |
— | ||
|
12
|
12
44730-693-000
Weight
|
44730-693-000 |
— | ||
|
12
|
12
44725-693-000
Weight
|
44725-693-000 |
— | ||
|
12
|
12
44722-693-000
Weight
|
44722-693-000 |
— | ||
|
12
|
12
44726-693-000
Weight
|
44726-693-000 |
— | ||
|
12
|
12
44723-693-000
Weight
|
44723-693-000 |
— | ||
|
12
|
12
44727-693-000
Weight
|
44727-693-000 |
— | ||
|
12
|
12
44724-693-000
Weight
|
44724-693-000 |
— | ||
|
12
|
12
44728-693-000
Weight
|
44728-693-000 |
— | ||
|
12
|
12
44729-693-000
Weight
|
44729-693-000 |
— | ||
|
12
|
12
44721-693-000
Weight
|
44721-693-000 |
— | ||
|
13
|
13
44732-SE0-000
Cap assy.
|
44732-SE0-000 |
— | ||
|
14
|
14
44732-SE0-681
Cap assy.
|
44732-SE0-681 |
— | ||
|
16
|
16
44735-SD2-900
Ring
|
44735-SD2-900 |
— | ||
|
19
|
19
74654-SE0-000 BoltANCHOR (64MM) |
74654-SE0-000 |
US $5.18 |
||
|
21
|
21
90304-SA5-013 NutWHEEL (CHROME PLATED) (FUSE RASHI) |
90304-SA5-013 |
from US $4.44 |
||
|
22
|
22
90304-SE0-901 NutWHEEL (FUSE RASHI) |
90304-SE0-901 |
US $5.32 |
||
