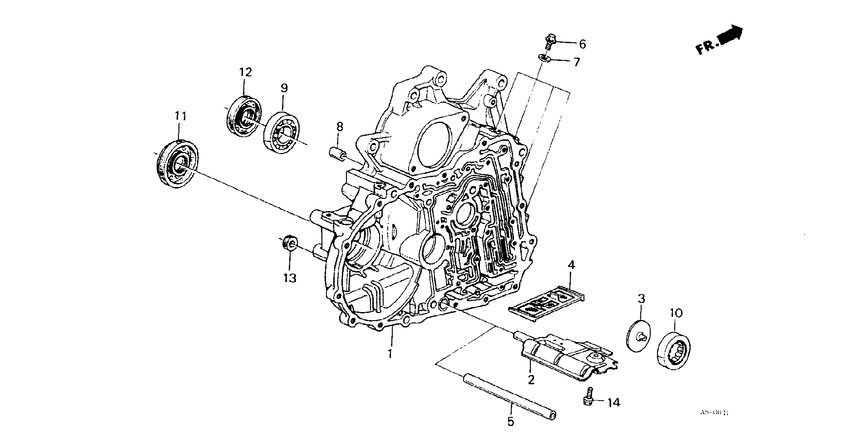

Torque converter housing Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KF
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21110-PC9-910
Case comp.
|
21110-PC9-910 |
— | ||
|
2
|
2
21220-PC9-000
Plate comp
6011590 - |
21220-PC9-000 |
— | ||
|
3
|
3
23225-PF0-850 PlateOIL GUIDE |
23225-PF0-850 |
from US $3.78 |
||
|
4
|
4
25420-PC9-000
Strainer
|
25420-PC9-000 |
— | ||
|
5
|
5
25425-PF4-000 PipeSUCTION 00000000 - 6011589 |
25425-PF4-000 |
US $12.74 |
||
|
6
|
6
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
7
|
7
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.48 |
||
|
8
|
8
90705-PF4-000 Dowel pin14X20 |
90705-PF4-000 |
US $2.24 |
||
|
9
|
9
91001-591-004
Bearing
|
91001-591-004 |
— | ||
| replacement | |||||
|
9
|
9
91001-PX4-004 BearingBALL, 40X68X9 (KOYO) |
91001-PX4-004 |
US $14.50 |
||
|
10
|
10
91102-PF0-003 BearingNEEDLE, 38.5X67X17 |
91102-PF0-003 |
US $15.36 |
||
|
11
|
11
91206-PC9-003
Oil seal
|
91206-PC9-003 |
— | ||
|
11
|
11
91206-PC9-005
Oil seal
|
91206-PC9-005 |
— | ||
|
12
|
12
91207-639-015 Oil seal44X68X8 (NOK) |
91207-639-015 |
US $10.36 |
||
|
13
|
13
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
13
|
13
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
