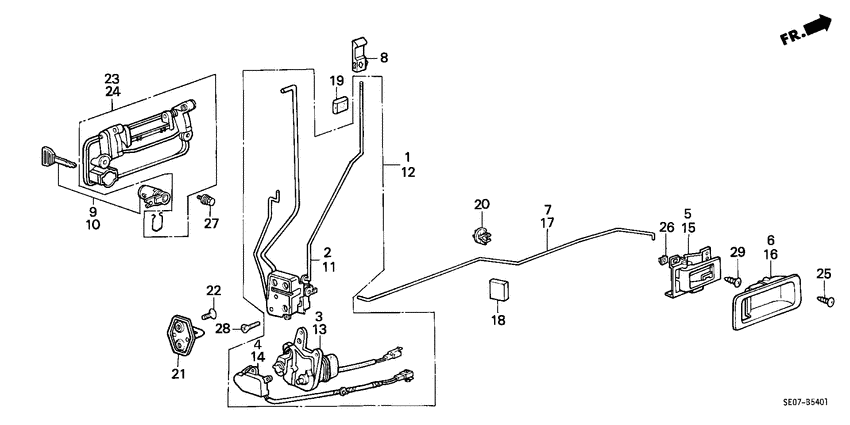

Front door locks (4D) Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- yellow bulb
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
72110-SE3-A01 Lock assyR. FR. DOOR |
72110-SE3-A01 |
US $101.76 |
||
|
5
|
5
72120-SE3-003
Handle assy
|
72120-SE3-003 |
— | ||
|
6
|
6
72125-SE3-003ZC
Case
|
72125-SE3-003ZC |
— | ||
|
6
|
6
72125-SE3-003ZB CaseR. INSIDE HANDLE *NH89L* |
72125-SE3-003ZB |
US $7 |
||
|
6
|
6
72125-SE3-003ZE
Case
|
72125-SE3-003ZE |
— | ||
|
7
|
7
72131-SE3-003
Rod
|
72131-SE3-003 |
— | ||
|
8
|
8
72137-SE3-003ZB KnobDOOR INSIDE LOCK *NH89L* |
72137-SE3-003ZB |
US $4.62 |
||
|
8
|
8
72137-SE3-003ZE KnobDOOR INSIDE LOCK *YR89L* |
72137-SE3-003ZE |
US $4.62 |
||
|
8
|
8
72137-SE3-003ZC
Knob
|
72137-SE3-003ZC |
— | ||
|
9
|
9
72145-SE0-023
Cylinder
0C005509 - |
72145-SE0-023 |
— | ||
|
9
|
9
72145-SE0-013
Cylinder R. DOOR
00000000 - 0C005508 |
72145-SE0-013 |
— | ||
|
10
|
10
72146-SE0-003 CylinderL. DOOR 00000000 - 0C005508 |
72146-SE0-003 |
US $44.93 |
||
|
10
|
10
72146-SE0-013
Cylinder
0C005509 - |
72146-SE0-013 |
— | ||
|
11
|
11
72150-SE3-A01 Lock assyL. FR. DOOR |
72150-SE3-A01 |
US $101.76 |
||
|
15
|
15
72160-SE3-003
Handle assy
|
72160-SE3-003 |
— | ||
|
16
|
16
72165-SE3-003ZB CaseL. INSIDE HANDLE *NH89L* |
72165-SE3-003ZB |
US $7 |
||
|
16
|
16
72165-SE3-003ZE
Case
|
72165-SE3-003ZE |
— | ||
|
16
|
16
72165-SE3-003ZC
Case
|
72165-SE3-003ZC |
— | ||
|
17
|
17
72171-SE3-003
Rod
|
72171-SE3-003 |
— | ||
|
18
|
18
75513-SB2-000 CushionLOCK ROD (35MMX58MM) |
75513-SB2-000 |
US $2.24 |
||
|
19
|
19
75513-SB4-000
Cushion
|
75513-SB4-000 |
— | ||
|
20
|
20
75551-692-003
Holder
|
75551-692-003 |
— | ||
|
21
|
21
75555-SB2-003
Striker
|
75555-SB2-003 |
— | ||
|
22
|
22
75556-605-010 BoltLOCK STRIKER |
75556-605-010 |
from US $1.92 |
||
|
23
|
23
75610-SB3-014
Handle assy
0C005509 - |
75610-SB3-014 |
— | ||
|
23
|
23
75610-SB3-003 Handle assyR. OUTSIDE (MITSUI) 00000000 - 0C005508 |
75610-SB3-003 |
US $38.02 |
||
|
23
|
23
75610-SB3-004 Handle assyR. OUTSIDE (HONDA LOCK) 00000000 - 0C005508 |
75610-SB3-004 |
US $38.02 |
||
|
23
|
23
75610-SB3-013
Handle assy
0C005509 - |
75610-SB3-013 |
— | ||
|
24
|
24
75620-SB3-003 Handle assyL. OUTSIDE (MITSUI) 00000000 - 0C005508 |
75620-SB3-003 |
US $38.02 |
||
|
24
|
24
75620-SB3-004 Handle assyL. OUTSIDE (HONDA LOCK) 00000000 - 0C005508 |
75620-SB3-004 |
US $38.02 |
||
|
24
|
24
75620-SB3-013
Handle assy
0C005509 - |
75620-SB3-013 |
— | ||
|
24
|
24
75620-SB3-014 Handle assyL. OUTSIDE (HONDA LOCK) 0C005509 - |
75620-SB3-014 |
US $36.86 |
||
|
25
|
25
90111-SA0-000 ScrewTAPPING, 4X8 |
90111-SA0-000 |
US $3.40 |
||
|
26
|
26
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
27
|
27
93493-060-100-8 Bolt-washer6X10 |
93493-060-100-8 |
US $0.59 |
||
|
28
|
28
93600-06028 ScrewFLAT, 6X28 |
93600-06028 |
from US $0.52 |
||
| replacement | |||||
|
28
|
28
93600-060-280-A ScrewFLAT, 6X28 |
93600-060-280-A |
from US $0.52 |
||
|
29
|
29
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
||
