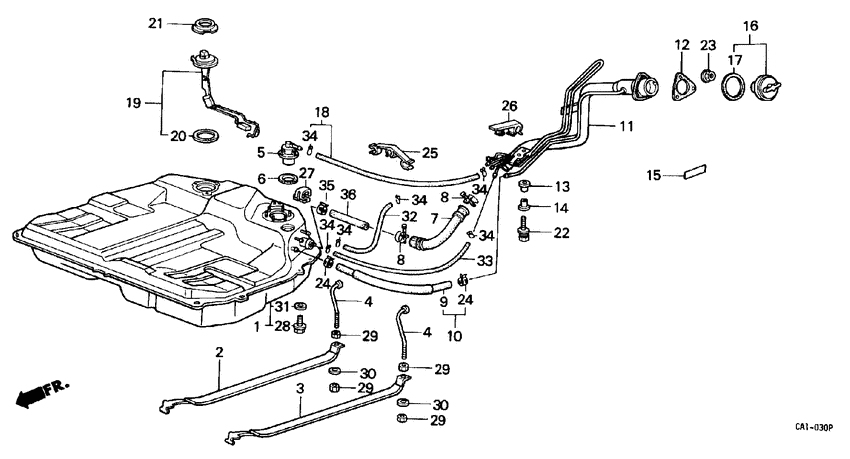

Fuel tank Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-SE0-A03
Tank comp.
|
17500-SE0-A03 |
— | ||
|
2
|
2
17521-SE0-010
Band
|
17521-SE0-010 |
— | ||
|
3
|
3
17522-SE0-010
Band
|
17522-SE0-010 |
— | ||
|
4
|
4
17525-SE0-000
Bolt
|
17525-SE0-000 |
— | ||
|
5
|
5
17570-SB2-040
Valve
|
17570-SB2-040 |
— | ||
|
6
|
6
17575-SE0-000
Packing
|
17575-SE0-000 |
— | ||
|
7
|
7
17651-SE0-000
Tube
|
17651-SE0-000 |
— | ||
|
8
|
8
17652-SE0-000
Clip
|
17652-SE0-000 |
— | ||
|
9
|
9
17653-SB4-000
Tube
|
17653-SB4-000 |
— | ||
|
10
|
10
17658-SE0-000
Tube assy
|
17658-SE0-000 |
— | ||
|
11
|
11
17660-SE0-010 Pipe compFUEL FILLER |
17660-SE0-010 |
US $135.68 |
||
|
12
|
12
17662-692-000
Packing
|
17662-692-000 |
— | ||
|
13
|
13
17664-SE0-000 BushFILLER PIPE MOUNT |
17664-SE0-000 |
US $3.29 |
||
|
14
|
14
17665-SE0-000 CollarFILLER PIPE MOUNT |
17665-SE0-000 |
US $4.76 |
||
|
16
|
16
17670-SA5-003
Cap comp.
00000000 - 0C005497 |
17670-SA5-003 |
— | ||
|
16
|
16
17670-SA5-013
Cap comp.
0C005498 - |
17670-SA5-013 |
— | ||
|
17
|
17
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
18
|
18
17706-SE0-000
Tube
|
17706-SE0-000 |
— | ||
|
19
|
19
37800-SE3-013 Meter unitFUEL (NS) |
37800-SE3-013 |
US $113.28 |
||
|
19
|
19
37800-SE3-004
Meter unit
|
37800-SE3-004 |
— | ||
| replacement | |||||
|
19
|
19
37800-SE3-024
(meter) unit assy
|
37800-SE3-024 |
— | ||
|
20
|
20
37801-SA5-000
Packing
|
37801-SA5-000 |
— | ||
|
21
|
21
37802-SE0-000
Retainer
|
37802-SE0-000 |
— | ||
|
22
|
22
90011-471-000 BoltSPECIAL, 6X26 |
90011-471-000 |
from US $3.25 |
||
|
23
|
23
90103-SB0-000 NutFLANGE, 5MM |
90103-SB0-000 |
US $2.03 |
||
|
24
|
24
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
25
|
25
91591-SE0-003
Clip
|
91591-SE0-003 |
— | ||
|
27
|
27
91691-SE0-003
Clip
|
91691-SE0-003 |
— | ||
|
28
|
28
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.33 |
||
|
29
|
29
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
29
|
29
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
30
|
30
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
31
|
31
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
32
|
32
95001-451-403-0
Tube
|
95001-451-403-0 |
— | ||
|
33
|
33
95001-451-703-0 TubeFUEL, 4.5X170 (95001-45001-60M) |
95001-451-703-0 |
US $1.55 |
||
|
34
|
34
95002-02084 ClipTUBE (B8) |
95002-02084 |
from US $0.44 |
||
|
35
|
35
95002-410-000-8 ClampTUBE (D10) |
95002-410-000-8 |
from US $0.74 |
||
|
36
|
36
95003-190-196-0 TubeVINYL, 7X11X190 (95003-19001-60M) |
95003-190-196-0 |
US $2.01 |
||
