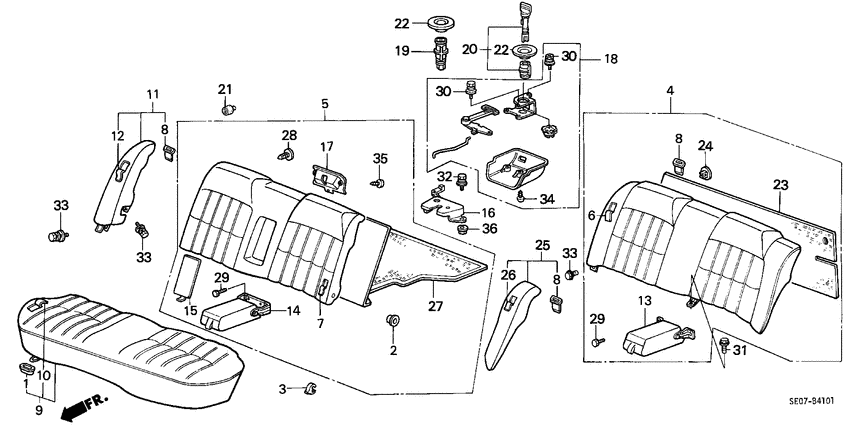

Rear seat (4D) Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82137-SE3-004
Rubber
|
82137-SE3-004 |
— | ||
|
4
|
4
82120-SE3-W02ZA
Seatback assy.
|
82120-SE3-W02ZA |
— | ||
|
4
|
4
82120-SE3-W02ZC Seatback assy.RR. *YR89L* |
82120-SE3-W02ZC |
US $1,541.12 |
||
|
4
|
4
82120-SE3-W02ZB
Seatback assy.
|
82120-SE3-W02ZB |
— | ||
|
6
|
6
82121-SE3-W02ZB
Cover
|
82121-SE3-W02ZB |
— | ||
|
6
|
6
82121-SE3-W02ZA
Cover
|
82121-SE3-W02ZA |
— | ||
|
6
|
6
82121-SE3-W02ZC
Cover
|
82121-SE3-W02ZC |
— | ||
|
8
|
8
82127-SE3-004
Collar
|
82127-SE3-004 |
— | ||
|
9
|
9
82130-SE3-W02ZC
Cushion assy
|
82130-SE3-W02ZC |
— | ||
|
9
|
9
82130-SE3-W02ZB
Cushion assy
|
82130-SE3-W02ZB |
— | ||
|
9
|
9
82130-SE3-W02ZA
Cushion assy
|
82130-SE3-W02ZA |
— | ||
|
10
|
10
82131-SE3-W02ZB
Cover
|
82131-SE3-W02ZB |
— | ||
|
10
|
10
82131-SE3-W02ZA
Cover
|
82131-SE3-W02ZA |
— | ||
|
10
|
10
82131-SE3-W02ZC
Cover
|
82131-SE3-W02ZC |
— | ||
|
23
|
23
82325-SE3-004ZA
Insulator
|
82325-SE3-004ZA |
— | ||
|
24
|
24
82326-SE3-004ZA
Clip
|
82326-SE3-004ZA |
— | ||
|
28
|
28
90667-SA7-003ZX
Clip
|
90667-SA7-003ZX |
— | ||
|
29
|
29
92000-06012-0A BoltHEX., 6X12 |
92000-06012-0A |
from US $0.44 |
||
| replacements | |||||
|
29
|
29
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
31
|
31
93492-060-200-8 Bolt-washer6X20 |
93492-060-200-8 |
from US $0.52 |
||
| replacement | |||||
|
31
|
31
93402-060-200-8 Bolt-washer6X20 |
93402-060-200-8 |
from US $0.52 |
||
|
33
|
33
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
33
|
33
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
