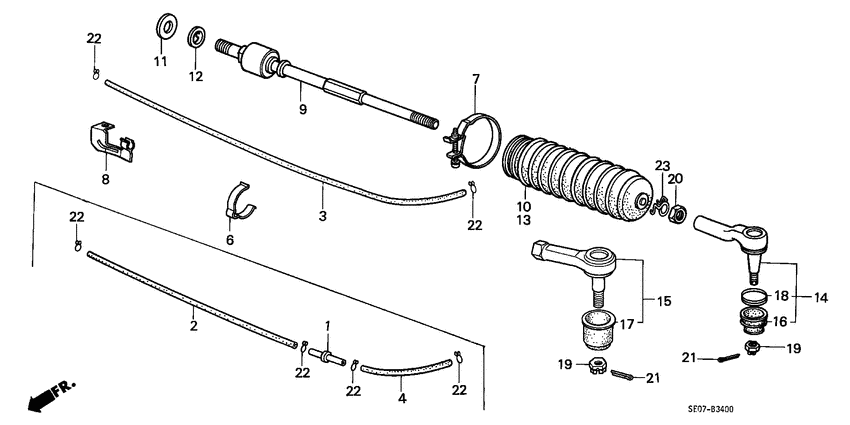

Tie rod Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
53449-SE0-000 BandBELLOWS |
53449-SE0-000 |
US $4.20 |
||
|
9
|
9
53521-SE0-003
End comp
|
53521-SE0-003 |
— | ||
|
11
|
11
53535-SB3-000
Washer
|
53535-SB3-000 |
— | ||
|
12
|
12
53536-SB2-000 WasherTIE ROD LOCK |
53536-SB2-000 |
US $5.37 |
||
|
13
|
13
53537-SE0-013 Dust sealTIE ROD |
53537-SE0-013 |
US $16.26 |
||
|
14
|
14
53540-SB2-003
End comp
|
53540-SB2-003 |
— | ||
|
15
|
15
53540-679-004
End comp
|
53540-679-004 |
— | ||
| replacement | |||||
|
15
|
15
53540-SC2-004
End,r tie rod
|
53540-SC2-004 |
— | ||
|
16
|
16
53546-SA0-003 BootTIE ROD END (MUSASHI) |
53546-SA0-003 |
US $13.44 |
||
|
17
|
17
53546-679-004 SealBALL JOINT (TOKAI) |
53546-679-004 |
US $15.74 |
||
|
18
|
18
53548-SA0-003
Circlip
|
53548-SA0-003 |
— | ||
|
19
|
19
90320-601-000 NutCASTLE, 10MM |
90320-601-000 |
from US $3.15 |
||
|
20
|
20
94030-12280 NutHEX., 12MM |
94030-12280 |
from US $0.59 |
||
|
21
|
21
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
21
|
21
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
23
|
23
53434-SD9-000 ClipTIE ROD |
53434-SD9-000 |
US $2.38 |
||
| replacement | |||||
|
23
|
23
53434-S04-J51 CLIP, TIE ROD |
53434-S04-J51 |
from US $5.62 |
||
