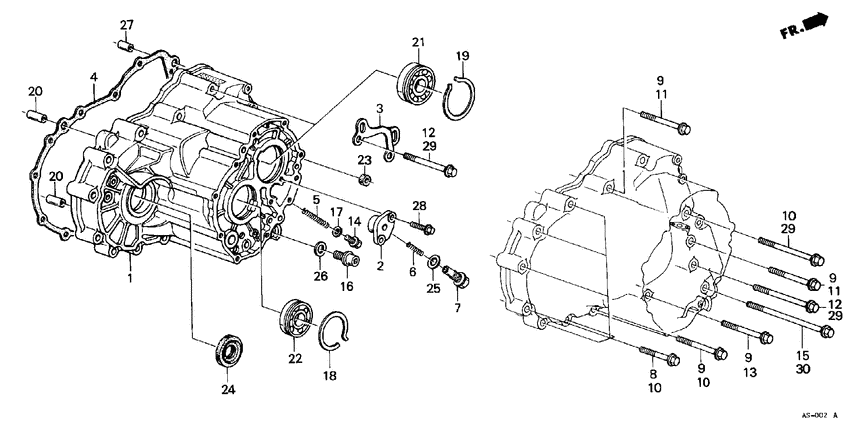

Transmission housing Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21211-PC9-911 CaseTRANSMISSION 00000000 - 6006657 |
21211-PC9-911 |
US $638.72 |
||
|
1
|
1
21211-PC9-912
Case
6006658 - |
21211-PC9-912 |
— | ||
|
2
|
2
21215-PF4-000 HolderREVERSE IDLE SHAFT |
21215-PF4-000 |
US $10.50 |
||
|
3
|
3
21232-PC9-930
Hanger
|
21232-PC9-930 |
— | ||
|
4
|
4
21811-PC9-910
Gasket
|
21811-PC9-910 |
— | ||
|
5
|
5
23543-PC9-810
Spring a
00000000 - 6006657 |
23543-PC9-810 |
— | ||
|
6
|
6
23544-PC9-810
Spring b
|
23544-PC9-810 |
— | ||
|
7
|
7
90007-PC9-810 BoltREVERSE HOLDER |
90007-PC9-810 |
US $2.94 |
||
|
10
|
10
90015-PF0-000 BoltFLANGE, 8X53 |
90015-PF0-000 |
US $2.59 |
||
|
11
|
11
90016-PF0-000 BoltFLANGE, 8X70 |
90016-PF0-000 |
US $2.94 |
||
|
12
|
12
90017-PF0-000 BoltFLANGE, 8X100 |
90017-PF0-000 |
US $5.18 |
||
|
13
|
13
90022-PC9-910 BoltFLANGE, 8X105 |
90022-PC9-910 |
US $4.62 |
||
|
14
|
14
90024-612-000 BoltSEALING, 8MM 00000000 - 6006657 |
90024-612-000 |
from US $1.78 |
||
|
15
|
15
90026-PC9-910
Bolt
|
90026-PC9-910 |
— | ||
|
16
|
16
90081-PB6-000 BoltPLUG, 14MM |
90081-PB6-000 |
from US $7.10 |
||
|
17
|
17
90471-580-000 Packing8MM 00000000 - 6006657 |
90471-580-000 |
from US $1.48 |
||
|
18
|
18
90603-PB6-000 RingSNAP, 62MM |
90603-PB6-000 |
from US $3.78 |
||
|
19
|
19
90609-PA9-000 RingSNAP, 68MM |
90609-PA9-000 |
US $6.44 |
||
|
20
|
20
90705-PA9-000 Dowel pin14X25 |
90705-PA9-000 |
US $2.80 |
||
|
21
|
21
91002-PA9-003
Bearing
|
91002-PA9-003 |
— | ||
|
22
|
22
91004-PA9-003 BearingBALL, 6305 (NTN) |
91004-PA9-003 |
US $51.80 |
||
|
23
|
23
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.33 |
||
|
23
|
23
91201-PA9-003 Oil seal9X18X7 (NOK) |
91201-PA9-003 |
US $7 |
||
|
24
|
24
91205-PC9-003
Oil seal
|
91205-PC9-003 |
— | ||
|
24
|
24
91205-PC9-005 Oil seal35X62X9 (NOK) |
91205-PC9-005 |
US $13.58 |
||
|
25
|
25
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
26
|
26
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
27
|
27
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
28
|
28
95700-060-200-8
Bolt
|
95700-060-200-8 |
— | ||
| replacement | |||||
|
28
|
28
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
