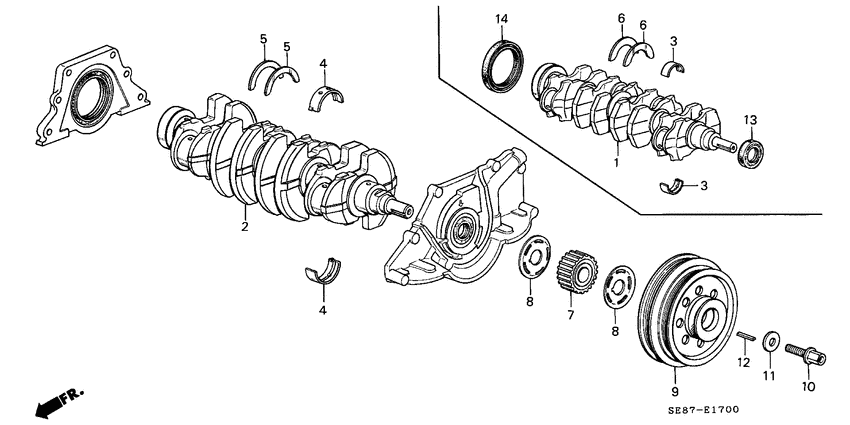

Crankshaft/pulley Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13310-PH1-010
Crankshaft comp.
|
13310-PH1-010 |
— | ||
|
3
|
3
13327-PC6-003
Bearing g
|
13327-PC6-003 |
— | ||
|
3
|
3
13323-PC6-003
Bearing c
|
13323-PC6-003 |
— | ||
|
3
|
3
13325-PD2-004
Bearing e
|
13325-PD2-004 |
— | ||
|
3
|
3
13326-PC6-003
Bearing f
|
13326-PC6-003 |
— | ||
|
3
|
3
13322-PC6-003
Bearing b
|
13322-PC6-003 |
— | ||
|
3
|
3
13324-PD2-004
Bearing d
|
13324-PD2-004 |
— | ||
|
3
|
3
13321-PD2-004
BEARING A
|
13321-PD2-004 |
— | ||
|
3
|
3
13325-PC6-003
Bearing e
|
13325-PC6-003 |
— | ||
|
3
|
3
13327-PD2-004
Bearing g
|
13327-PD2-004 |
— | ||
|
3
|
3
13323-PD2-004
Bearing c
|
13323-PD2-004 |
— | ||
|
3
|
3
13324-PC6-003
Bearing d
|
13324-PC6-003 |
— | ||
|
3
|
3
13326-PD2-004
Bearing f
|
13326-PD2-004 |
— | ||
|
3
|
3
13322-PD2-004
Bearing b
|
13322-PD2-004 |
— | ||
|
3
|
3
13321-PC6-003
BEARING A
|
13321-PC6-003 |
— | ||
|
6
|
6
13331-634-003
Washer
|
13331-634-003 |
— | ||
|
6
|
6
13331-634-004
Washer
|
13331-634-004 |
— | ||
|
7
|
7
13621-PH1-000
Pulley
|
13621-PH1-000 |
— | ||
|
8
|
8
13622-PH1-000
Plate
|
13622-PH1-000 |
— | ||
|
9
|
9
13810-PH1-010
Pulley
|
13810-PH1-010 |
— | ||
|
10
|
10
90017-PH1-004
Bolt
|
90017-PH1-004 |
— | ||
|
11
|
11
90402-PH1-000
Washer
|
90402-PH1-000 |
— | ||
|
12
|
12
90704-634-000 Key4.5X11.0 |
90704-634-000 |
from US $2.70 |
||
|
13
|
13
91212-PH1-661
Oil seal
|
91212-PH1-661 |
— | ||
|
13
|
13
91212-PH1-004
Oil seal
|
91212-PH1-004 |
— | ||
|
14
|
14
91214-PH1-004
Oil seal
|
91214-PH1-004 |
— | ||
| replacement | |||||
|
14
|
14
91214-PLE-003 Oil seal |
91214-PLE-003 |
from US $17.62 |
||
