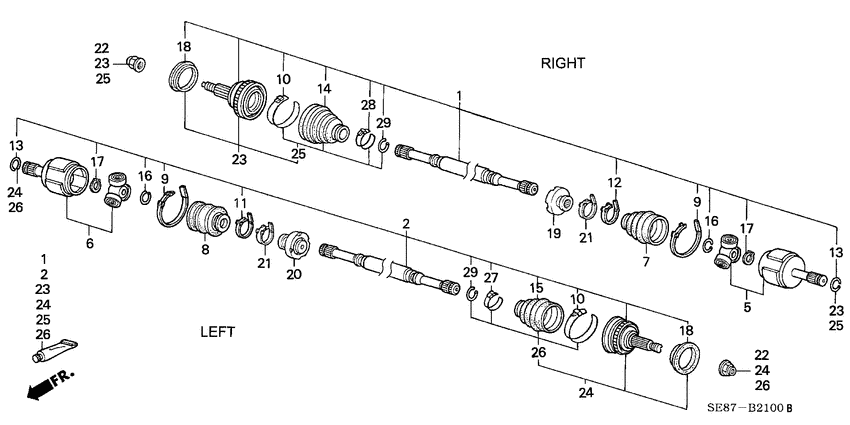

Driveshaft Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SE0-G02 Driveshaft setR. 0C300971 - |
44010-SE0-G02 |
US $446.72 |
||
|
1
|
1
44010-SE0-G01 Driveshaft setR. 00000000 - 0C300970 |
44010-SE0-G01 |
US $446.72 |
||
|
2
|
2
44011-SE0-G02 Driveshaft setL. 0C300971 - |
44011-SE0-G02 |
US $490.24 |
||
|
2
|
2
44011-SE0-G01 Driveshaft setL. 00000000 - 0C300970 |
44011-SE0-G01 |
US $490.24 |
||
|
5
|
5
44310-SA5-300
Joint comp
|
44310-SA5-300 |
— | ||
|
6
|
6
44310-SA5-950
Joint comp
|
44310-SA5-950 |
— | ||
|
7
|
7
44315-SA2-300
Boot b
|
44315-SA2-300 |
— | ||
|
8
|
8
44315-SA5-004
Boot b
|
44315-SA5-004 |
— | ||
|
8
|
8
44315-SB2-981 BootINBOARD (NOK) |
44315-SB2-981 |
US $30.34 |
||
|
8
|
8
44315-SA5-003
Boot b
|
44315-SA5-003 |
— | ||
|
9
|
9
44316-SA2-300 Band aBOOT |
44316-SA2-300 |
US $15.62 |
||
|
10
|
10
44317-SA2-300
Band b
|
44317-SA2-300 |
— | ||
|
11
|
11
44318-SA5-300
Band c
|
44318-SA5-300 |
— | ||
|
12
|
12
44318-689-300 Band cBOOT |
44318-689-300 |
US $11.48 |
||
|
13
|
13
44319-SA2-000
Set ring
|
44319-SA2-000 |
— | ||
|
14
|
14
44333-SA2-310 Boot aOTSUKA |
44333-SA2-310 |
US $35.84 |
||
|
15
|
15
44333-SA5-004
Boot a
|
44333-SA5-004 |
— | ||
|
15
|
15
44333-SA5-003
Boot a
|
44333-SA5-003 |
— | ||
|
16
|
16
44336-SA2-300 Ring aSTOPPER |
44336-SA2-300 |
US $2.24 |
||
|
17
|
17
44338-SA2-300 Circlip24MM |
44338-SA2-300 |
US $2.52 |
||
|
18
|
18
44347-SB2-003 RingOUTBOARD |
44347-SB2-003 |
US $5.32 |
||
|
22
|
22
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
27
|
27
44318-SA5-300
Band c
|
44318-SA5-300 |
— | ||
|
28
|
28
44318-689-300 Band cBOOT |
44318-689-300 |
US $11.48 |
