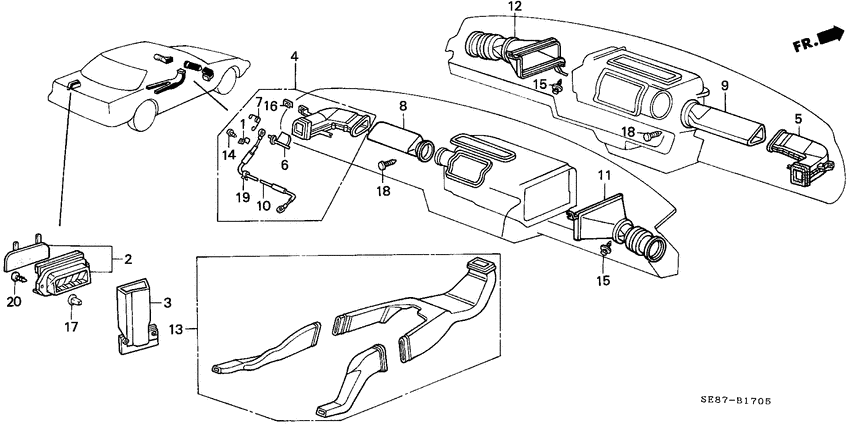

Heater duct Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39383-SA5-000 ClampCONTROL CABLE |
39383-SA5-000 |
US $3.08 |
||
|
2
|
2
75450-SE0-000
Outlet assy
|
75450-SE0-000 |
— | ||
|
4
|
4
77413-SE3-A06
Duct assy
|
77413-SE3-A06 |
— | ||
|
6
|
6
77415-SE3-A01
Valve assy.
|
77415-SE3-A01 |
— | ||
|
7
|
7
77416-SE3-A01
Spring
|
77416-SE3-A01 |
— | ||
|
8
|
8
77421-SE3-A01
Duct
|
77421-SE3-A01 |
— | ||
|
10
|
10
77646-SE3-A01
Cable
|
77646-SE3-A01 |
— | ||
|
11
|
11
79800-SE0-A02
Duct
|
79800-SE0-A02 |
— | ||
|
13
|
13
83331-SE0-A00
Duct
|
83331-SE0-A00 |
— | ||
|
14
|
14
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
14
|
14
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
15
|
15
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
16
|
16
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
17
|
17
90663-SB0-003 GrommetSCREW, 5MM(YELLOW) |
90663-SB0-003 |
US $1.63 |
||
|
18
|
18
90666-SA0-003ZD ClipTRIM, 5MM *NH1L* |
90666-SA0-003ZD |
US $2.25 |
||
|
19
|
19
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
20
|
20
93903-253J0 ScrewTAPPING, 5X16 |
93903-253J0 |
from US $0.37 |
||
