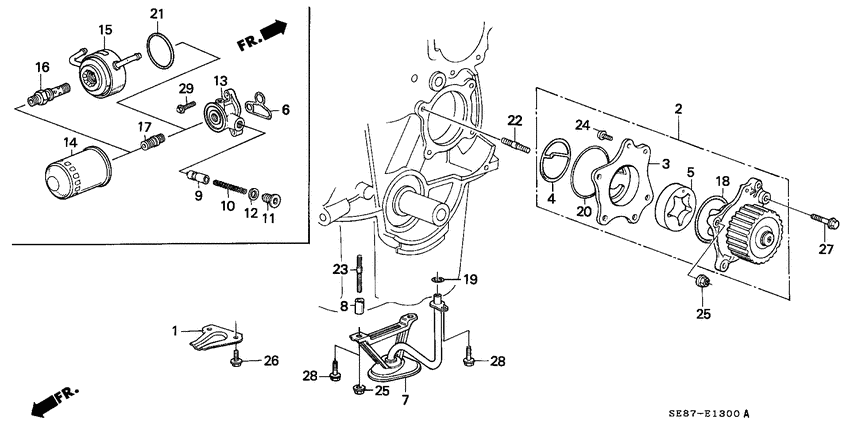

Oil pump (SOHC) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11104-PH1-000
Separator
|
11104-PH1-000 |
— | ||
|
2
|
2
15100-PH1-000 Pump assy.OIL |
15100-PH1-000 |
US $176.64 |
||
|
3
|
3
15102-PH1-000
Body
|
15102-PH1-000 |
— | ||
|
4
|
4
15103-PC6-003 GasketOIL PUMP BODY |
15103-PC6-003 |
US $2.80 |
||
|
5
|
5
15132-PD2-000
Rotor
|
15132-PD2-000 |
— | ||
|
6
|
6
15205-PC6-003
Gasket
|
15205-PC6-003 |
— | ||
|
6
|
6
15205-PC6-014
Gasket
|
15205-PC6-014 |
— | ||
|
7
|
7
15220-PH1-000
Strainer comp.
|
15220-PH1-000 |
— | ||
|
9
|
9
15231-679-003
Valve
|
15231-679-003 |
— | ||
|
10
|
10
15232-PB2-000
Spring
|
15232-PB2-000 |
— | ||
|
11
|
11
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
12
|
12
15234-PC6-000 WasherSEALING, 18MM |
15234-PC6-000 |
US $9.67 |
||
|
13
|
13
15301-PH1-000
Base
|
15301-PH1-000 |
— | ||
|
14
|
14
15400-PH1-F02
Cartridge
|
15400-PH1-F02 |
— | ||
|
14
|
14
15400-PK1-003 CartridgeOIL FILTER (TOKYO ROKI) |
15400-PK1-003 |
US $16 |
||
|
14
|
14
15400-PH1-014 CartridgeOIL FILTER (TOYO ROKI) |
15400-PH1-014 |
US $16 |
||
|
17
|
17
90015-PH1-003 HolderOIL FILTER |
90015-PH1-003 |
US $4.62 |
||
|
18
|
18
91309-PC6-003 O-ring54.2X3.1 |
91309-PC6-003 |
US $5.07 |
||
| replacement | |||||
|
18
|
18
91302-657-000 O-ring53.8X3.1 |
91302-657-000 |
from US $3.99 |
||
|
19
|
19
91310-PC6-004 O-ring15.5X2.7 |
91310-PC6-004 |
from US $1.72 |
||
|
20
|
20
91312-PC6-003 O-ring57.8X2.4 |
91312-PC6-003 |
from US $3.03 |
||
|
22
|
22
92900-06020-0B BoltSTUD, 6X20 |
92900-06020-0B |
from US $0.59 |
||
|
24
|
24
93500-060-100-H ScrewPAN, 6X10 |
93500-060-100-H |
from US $0.44 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
26
|
26
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
27
|
27
95700-060-220-8 BoltFLANGE, 6X22 |
95700-060-220-8 |
US $15.60 |
||
| replacement | |||||
|
27
|
27
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
|
28
|
28
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
29
|
29
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
