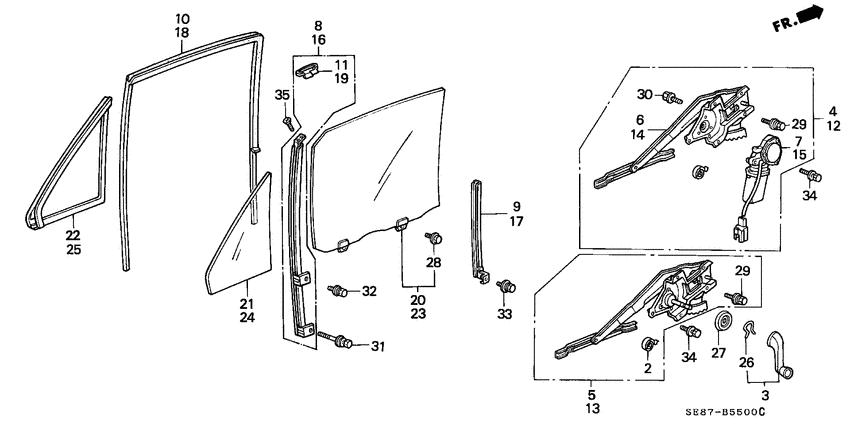

Rear door window (4D) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
72212-SH3-003
Spring
|
72212-SH3-003 |
— | ||
|
3
|
3
72220-SE0-F00ZC Handle assyREGULATOR *B49L* |
72220-SE0-F00ZC |
US $16.38 |
||
|
3
|
3
72220-SE0-F00ZB
Handle assy
|
72220-SE0-F00ZB |
— | ||
|
5
|
5
72710-SE3-003
Regulator
|
72710-SE3-003 |
— | ||
|
8
|
8
72731-SE3-000
Sash
|
72731-SE3-000 |
— | ||
|
9
|
9
72733-SE3-000
Sash
|
72733-SE3-000 |
— | ||
|
10
|
10
72735-SE3-013
Channel
|
72735-SE3-013 |
— | ||
|
11
|
11
72736-SE3-000
Cap
|
72736-SE3-000 |
— | ||
|
13
|
13
72750-SE3-003
Regulator
|
72750-SE3-003 |
— | ||
|
16
|
16
72771-SE3-000
Sash
|
72771-SE3-000 |
— | ||
|
17
|
17
72773-SE3-000
Sash
|
72773-SE3-000 |
— | ||
|
18
|
18
72775-SE3-013
Channel
|
72775-SE3-013 |
— | ||
|
19
|
19
72776-SE3-000
Cap
|
72776-SE3-000 |
— | ||
|
20
|
20
73400-SE3-000
Glass assy
|
73400-SE3-000 |
— | ||
|
21
|
21
73416-SE3-000
Glass
|
73416-SE3-000 |
— | ||
|
22
|
22
73441-SE3-000
Seal
|
73441-SE3-000 |
— | ||
|
23
|
23
73450-SE3-000
Glass assy
|
73450-SE3-000 |
— | ||
|
24
|
24
73466-SE3-000
Glass
|
73466-SE3-000 |
— | ||
|
25
|
25
73491-SE3-000
Seal
|
73491-SE3-000 |
— | ||
|
26
|
26
75342-679-000 PinWINDOW REGULATOR HANDLE |
75342-679-000 |
US $2.04 |
||
|
27
|
27
75343-657-010
Escutcheon
|
75343-657-010 |
— | ||
|
28
|
28
90011-896-000 BoltFLANGE, 6X8 |
90011-896-000 |
US $3.98 |
||
|
29
|
29
90115-SG0-003 BoltFLANGE, 6MM |
90115-SG0-003 |
US $1.47 |
||
|
31
|
31
93405-060-400-8 Bolt-washer6X40 |
93405-060-400-8 |
US $0.74 |
||
|
32
|
32
93493-060-100-0 Bolt-washer6X10 |
93493-060-100-0 |
from US $0.59 |
||
|
33
|
33
93493-060-100-7 Bolt-washer6X10 |
93493-060-100-7 |
from US $0.59 |
||
|
34
|
34
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
34
|
34
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
35
|
35
93600-040-080-A ScrewFLAT, 4X8 |
93600-040-080-A |
US $0.37 |
||
