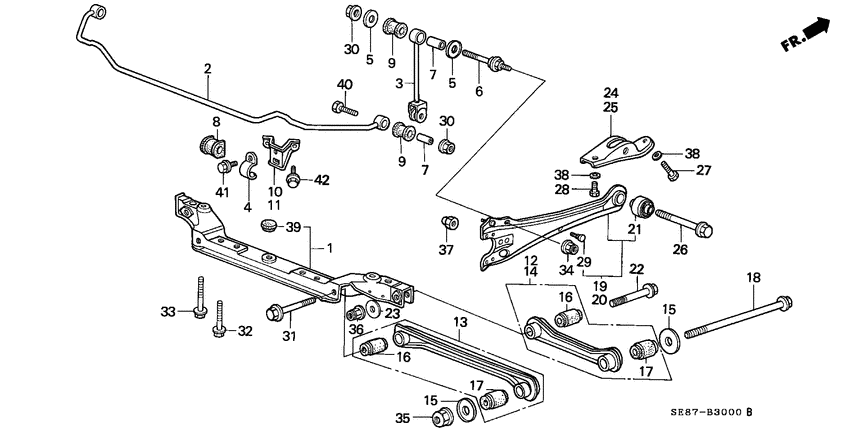

Rear lower arm/ rear stabilizer spring Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50300-SE0-A03
Beam
|
50300-SE0-A03 |
— | ||
|
2
|
2
52300-SE0-010
Spring
|
52300-SE0-010 |
— | ||
|
3
|
3
52306-SE0-A00 LinkRR. STABILIZER |
52306-SE0-A00 |
US $13.06 |
||
|
4
|
4
52308-SE0-000
Bracket
|
52308-SE0-000 |
— | ||
|
5
|
5
52309-SE0-000
Washer
|
52309-SE0-000 |
— | ||
|
6
|
6
52310-SE0-003
Shaft
|
52310-SE0-003 |
— | ||
|
7
|
7
52312-SE0-000 CollarSTABILIZER INNER BUSH END |
52312-SE0-000 |
from US $2.61 |
||
|
8
|
8
52315-SE0-000
Bush
|
52315-SE0-000 |
— | ||
|
9
|
9
52316-SA5-000 BushSTABILIZER END |
52316-SA5-000 |
from US $2.57 |
||
|
10
|
10
52317-SE0-000
Bracket
|
52317-SE0-000 |
— | ||
|
11
|
11
52318-SE0-000
Bracket
|
52318-SE0-000 |
— | ||
|
12
|
12
52350-SE0-A04 Arm compR. RR. LOWER (A) |
52350-SE0-A04 |
US $57.34 |
||
|
13
|
13
52355-SE0-A04 Arm comp. bRR. LOWER |
52355-SE0-A04 |
US $78.72 |
||
|
14
|
14
52360-SE0-A00 Arm comp. aL. RR. LOWER |
52360-SE0-A00 |
US $57.34 |
||
|
15
|
15
52364-634-020
Washer
|
52364-634-020 |
— | ||
|
16
|
16
52365-SE0-004 BushRR. LOWER ARM (HOKUSHIN) |
52365-SE0-004 |
US $11.99 |
||
|
16
|
16
52365-SE0-003
Bush
|
52365-SE0-003 |
— | ||
|
17
|
17
52365-SG0-010 Bush compRR. LOWER ARM |
52365-SG0-010 |
US $13.58 |
||
|
18
|
18
52366-SE0-000
Bolt
|
52366-SE0-000 |
— | ||
|
19
|
19
52371-SE0-G06
Arm comp
|
52371-SE0-G06 |
— | ||
|
20
|
20
52372-SE0-G06
Arm comp
|
52372-SE0-G06 |
— | ||
|
21
|
21
52384-SE0-G04 Bush compTRAILING ARM (YAMASHITA) |
52384-SE0-G04 |
US $16.38 |
||
|
21
|
21
52384-SE0-G05 Bush compTRAILING ARM (HOKUSHIN) |
52384-SE0-G05 |
US $16.38 |
||
|
22
|
22
52387-SE0-023 BoltLOWER ARM ADJUSTING |
52387-SE0-023 |
US $11.69 |
||
|
23
|
23
52388-SE0-030 PlateCAM |
52388-SE0-030 |
US $3.15 |
||
|
24
|
24
52677-SE0-020
Bracket
|
52677-SE0-020 |
— | ||
|
25
|
25
52678-SE0-020
Bracket
|
52678-SE0-020 |
— | ||
|
26
|
26
90020-SE0-010
Bolt
|
90020-SE0-010 |
— | ||
| replacement | |||||
|
26
|
26
90172-SP0-000 Bolt bSHOCK ABSORBER BRACKET |
90172-SP0-000 |
US $7 |
||
|
27
|
27
90022-SE0-010
Bolt
|
90022-SE0-010 |
— | ||
| replacement | |||||
|
27
|
27
90173-SM4-000 BoltFLANGE, 12X60 |
90173-SM4-000 |
from US $4.07 |
||
|
28
|
28
90023-SE0-020 BoltTRAILING BRACKET, 12X30 |
90023-SE0-020 |
US $6.30 |
||
|
29
|
29
90028-SE0-000 BoltTRAILING ARM, 8X16 |
90028-SE0-000 |
US $3.01 |
||
|
30
|
30
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
31
|
31
90118-SE0-000
Bolt
|
90118-SE0-000 |
— | ||
| replacement | |||||
|
31
|
31
90190-SR3-000 BoltFLANGE, 12X64 |
90190-SR3-000 |
US $4.28 |
||
|
32
|
32
90122-SE0-010
Bolt
|
90122-SE0-010 |
— | ||
|
33
|
33
90129-SE0-000
Bolt
|
90129-SE0-000 |
— | ||
|
34
|
34
90212-SA7-010 NutSELF-LOCK, 10MM |
90212-SA7-010 |
from US $0.88 |
||
|
35
|
35
90215-SB0-003 NutSELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
90215-SB0-003 |
from US $3.20 |
||
|
36
|
36
90216-SE0-010
Nut
|
90216-SE0-010 |
— | ||
| replacement | |||||
|
36
|
36
90216-SE0-305 NUT, LWR ARM |
90216-SE0-305 |
from US $5.92 |
||
|
37
|
37
90217-SE0-010
Nut
|
90217-SE0-010 |
— | ||
|
38
|
38
90438-SE0-000 WasherTRAILING, 12MM |
90438-SE0-000 |
US $8.65 |
||
|
39
|
39
91613-SE0-003 GrommetSUB FRAME, 15MM |
91613-SE0-003 |
US $3.18 |
||
|
40
|
40
92200-08035-0H BoltHEX., 8X35 |
92200-08035-0H |
US $0.59 |
||
|
41
|
41
93492-080-160-8 Bolt-washer8X16 |
93492-080-160-8 |
from US $0.59 |
||
| replacement | |||||
|
41
|
41
93402-080-160-8 Bolt-washer8X16 |
93402-080-160-8 |
from US $0.67 |
||
|
42
|
42
93492-100-160-8 Bolt-washer10X16 |
93492-100-160-8 |
from US $0.52 |
||
| replacement | |||||
|
42
|
42
93402-100-160-8 Bolt-washer10X16 |
93402-100-160-8 |
from US $0.74 |
||
