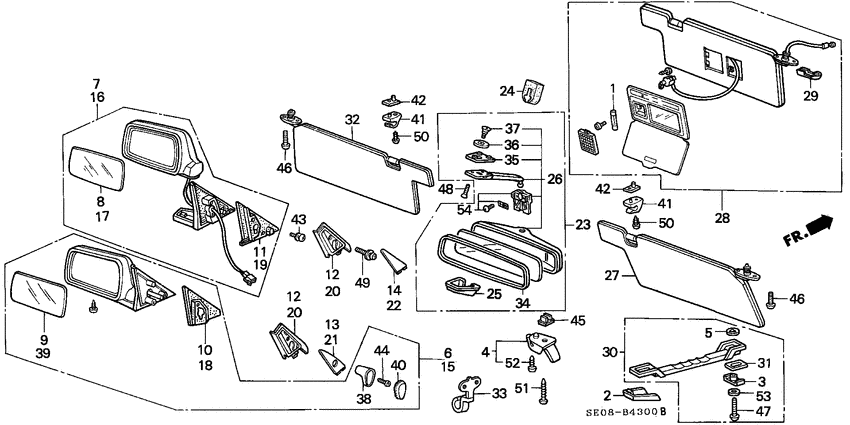

Mirror/sunvisor Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KT
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
83425-SE3-030ZD Hanger assy.COAT *R93L* 0C202267 - |
83425-SE3-030ZD |
US $6.16 |
||
|
4
|
4
83425-SE3-030ZC Hanger assy.COAT *YR114L* 0C202267 - |
83425-SE3-030ZC |
US $6.16 |
||
|
4
|
4
83425-SE3-030ZB Hanger assy.COAT *B46L* 0C202267 - |
83425-SE3-030ZB |
US $6.16 |
||
|
4
|
4
83425-SE3-030ZA Hanger assy.COAT *NH91L* 0C202267 - |
83425-SE3-030ZA |
US $6.16 |
||
|
7
|
7
76200-SE3-E15
Mirror assy
0C200001 - |
76200-SE3-E15 |
— | ||
|
8
|
8
76203-SE3-G13
Mirror
0C200001 - |
76203-SE3-G13 |
— | ||
|
11
|
11
76205-SE3-G12
Seat comp
0C201625 - |
76205-SE3-G12 |
— | ||
|
12
|
12
76220-SE3-000
Garnish
|
76220-SE3-000 |
— | ||
|
14
|
14
76222-SE3-900
Sub cap
|
76222-SE3-900 |
— | ||
|
16
|
16
76250-SE3-E15
Mirror assy
0C200001 - |
76250-SE3-E15 |
— | ||
|
17
|
17
76253-SE3-G13
Mirror
0C200001 - |
76253-SE3-G13 |
— | ||
|
19
|
19
76255-SE3-G12
Seat comp
0C201625 - |
76255-SE3-G12 |
— | ||
|
20
|
20
76270-SE3-000
Garnish
|
76270-SE3-000 |
— | ||
|
22
|
22
76272-SE3-900
Sub cap
|
76272-SE3-900 |
— | ||
|
24
|
24
76403-SE3-000
Holder
|
76403-SE3-000 |
— | ||
|
25
|
25
76408-SE3-003ZJ CoverSTAY *YR114L* 0C200001 - |
76408-SE3-003ZJ |
US $7.28 |
||
|
25
|
25
76408-SE3-003ZB CoverSTAY *B46L* |
76408-SE3-003ZB |
US $7.28 |
||
|
25
|
25
76408-SE3-003ZL CoverSTAY *R93L* 0C200001 - |
76408-SE3-003ZL |
US $7.28 |
||
|
25
|
25
76408-SE3-003ZA CoverSTAY *NH91L* |
76408-SE3-003ZA |
US $7.28 |
||
|
26
|
26
76430-SE3-003ZC MirrorRR. VIEW *B49L* 0C200001 - |
76430-SE3-003ZC |
US $99.20 |
||
|
26
|
26
76430-SE3-003ZE MirrorRR. VIEW *YR89L* 0C200001 - |
76430-SE3-003ZE |
US $99.20 |
||
|
26
|
26
76430-SE3-003ZB MirrorRR. VIEW *NH89L* 0C200001 - |
76430-SE3-003ZB |
US $99.20 |
||
|
26
|
26
76430-SE3-003ZD MirrorRR. VIEW *R92L* 0C200001 - |
76430-SE3-003ZD |
US $99.20 |
||
|
27
|
27
83230-SE3-T01ZF
Sunvisor assy.
0C200001 - |
83230-SE3-T01ZF |
— | ||
|
27
|
27
83230-SE3-T01ZA
Sunvisor assy.
|
83230-SE3-T01ZA |
— | ||
|
27
|
27
83230-SE3-T01ZE
Sunvisor assy.
0C200001 - |
83230-SE3-T01ZE |
— | ||
|
27
|
27
83230-SE3-T01ZB
Sunvisor assy.
|
83230-SE3-T01ZB |
— | ||
|
32
|
32
83280-SE3-T01ZE
Sunvisor assy.
0C200001 - |
83280-SE3-T01ZE |
— | ||
|
32
|
32
83280-SE3-T01ZB
Sunvisor assy.
|
83280-SE3-T01ZB |
— | ||
|
32
|
32
83280-SE3-T01ZF
Sunvisor assy.
0C200001 - |
83280-SE3-T01ZF |
— | ||
|
32
|
32
83280-SE3-T01ZA
Sunvisor assy.
|
83280-SE3-T01ZA |
— | ||
|
35
|
35
88145-SD2-003
Base
|
88145-SD2-003 |
— | ||
|
36
|
36
88147-SA5-003
Washer
|
88147-SA5-003 |
— | ||
|
37
|
37
88148-SE0-003 BoltLOCK, 6X7 (MATSUYAMA) 0C200001 - |
88148-SE0-003 |
US $1.61 |
||
|
41
|
41
88217-SB2-000ZC HolderSUNVISOR *B46L* |
88217-SB2-000ZC |
US $3.29 |
||
|
41
|
41
88217-SB2-000ZJ HolderSUNVISOR *YR114L* 0C200001 - |
88217-SB2-000ZJ |
US $3.29 |
||
|
41
|
41
88217-SB2-000ZD HolderSUNVISOR *NH91L* |
88217-SB2-000ZD |
US $3.29 |
||
|
43
|
43
90108-SE0-000
Screw-washer
|
90108-SE0-000 |
— | ||
|
45
|
45
90662-671-003 GrommetSCREW, 5MM (WHITE) 0C202267 - |
90662-671-003 |
US $2.59 |
||
|
46
|
46
93500-050-200-A ScrewPAN, 5X20 0C200001 - |
93500-050-200-A |
from US $0.37 |
||
|
48
|
48
93600-050-200-A ScrewFLAT, 5X20 0C200001 - |
93600-050-200-A |
from US $0.37 |
||
|
49
|
49
93893-050-160-0 Screw-washer5X16 |
93893-050-160-0 |
from US $0.44 |
||
|
50
|
50
93901-15410 ScrewTAPPING, 5X20 |
93901-15410 |
from US $0.37 |
||
|
52
|
52
93901-45380 ScrewTAPPING, 5X16 0C202267 - |
93901-45380 |
US $0.37 |
