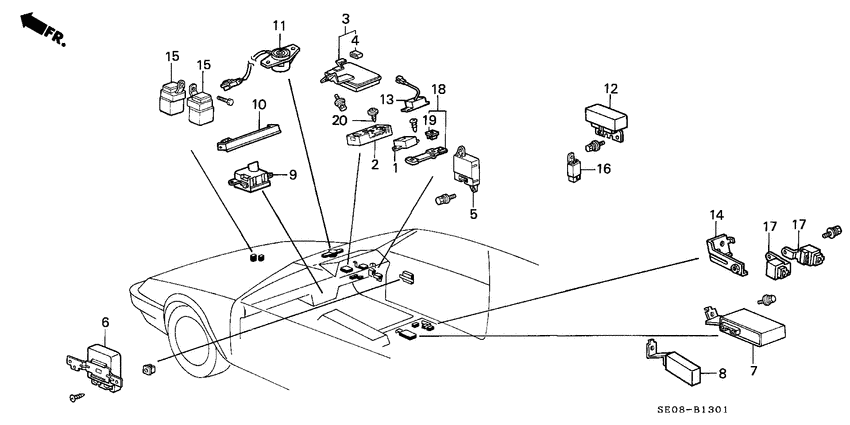

Relay/control unit Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KT
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34258-SE3-003
Timer assy
|
34258-SE3-003 |
— | ||
|
2
|
2
35150-SE3-013
Controller
0C204570 - |
35150-SE3-013 |
— | ||
|
6
|
6
38370-SE3-961
Control unit
|
38370-SE3-961 |
— | ||
|
7
|
7
38380-SE3-G01
Control unit
|
38380-SE3-G01 |
— | ||
|
13
|
13
37120-SE0-003
Buzzer assy.
0C100001 - |
37120-SE0-003 |
— | ||
|
14
|
14
39792-SE3-000
Bracket
|
39792-SE3-000 |
— | ||
|
17
|
17
39799-SE0-014 Relay assyPOWER (5P) (MITSUBA) |
39799-SE0-014 |
US $31.49 |
||
|
17
|
17
39799-SE0-003
Relay assy
|
39799-SE0-003 |
— | ||
|
18
|
18
77214-SE3-000
Bracket
|
77214-SE3-000 |
— | ||
|
19
|
19
90651-692-731
Nut
|
90651-692-731 |
— | ||
|
20
|
20
93903-14380 ScrewTAPPING, 4X12 |
93903-14380 |
from US $0.41 |
