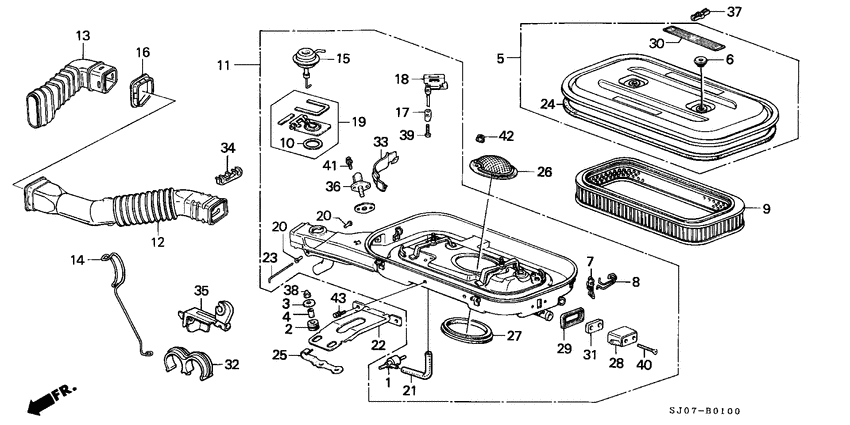

Air cleaner (CARBURETOR) Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17150-PA6-004
Valve
0C211367 - |
17150-PA6-004 |
— | ||
|
2
|
2
17207-PC6-000 RubberAIR CLEANER CASE MOUNTING |
17207-PC6-000 |
US $3.36 |
||
|
3
|
3
17208-PC6-000
Washer
|
17208-PC6-000 |
— | ||
|
4
|
4
17209-PC6-000
Collar
|
17209-PC6-000 |
— | ||
|
5
|
5
17210-PH1-640
Cover comp.
|
17210-PH1-640 |
— | ||
|
6
|
6
17212-689-000
Washer
|
17212-689-000 |
— | ||
|
7
|
7
17216-671-000
Clip A
|
17216-671-000 |
— | ||
|
8
|
8
17217-657-000
Clip b
|
17217-657-000 |
— | ||
|
9
|
9
17220-PH4-661 Element compAIR CLEANER |
17220-PH4-661 |
US $36.48 |
||
|
10
|
10
17222-PC6-300
Seal
|
17222-PC6-300 |
— | ||
|
11
|
11
17240-PH4-601
Case assy.
|
17240-PH4-601 |
— | ||
|
12
|
12
17242-PH2-000
Tube
|
17242-PH2-000 |
— | ||
|
13
|
13
17243-PH2-000 Duct assyAIR INTAKE |
17243-PH2-000 |
US $34.43 |
||
|
14
|
14
17244-PH2-J00
Clamp
|
17244-PH2-J00 |
— | ||
|
15
|
15
17245-PH1-003
Diaphragm
|
17245-PH1-003 |
— | ||
|
16
|
16
17247-PH2-000
Seal
|
17247-PH2-000 |
— | ||
|
17
|
17
17247-689-000
Insulator
|
17247-689-000 |
— | ||
|
18
|
18
17250-PH1-004
Sensor comp
|
17250-PH1-004 |
— | ||
|
19
|
19
17251-PK1-000
Valve comp.
|
17251-PK1-000 |
— | ||
|
20
|
20
17253-PC6-300
Plug
|
17253-PC6-300 |
— | ||
|
21
|
21
17253-PH1-000
Tube
0C211367 - |
17253-PH1-000 |
— | ||
|
22
|
22
17255-PH1-010
Stay
|
17255-PH1-010 |
— | ||
|
23
|
23
17257-689-310
Pin
|
17257-689-310 |
— | ||
|
24
|
24
17258-PH1-300
Packing
|
17258-PH1-300 |
— | ||
|
25
|
25
17261-PH1-020
Clamp
|
17261-PH1-020 |
— | ||
|
26
|
26
17263-PE0-020
Supporter comp.
0C203246 - |
17263-PE0-020 |
— | ||
|
26
|
26
17263-PH1-000
Supporter comp.
00000000 - 0C202118 |
17263-PH1-000 |
— | ||
|
26
|
26
17263-PE0-010
Supporter comp.
0C202119 - 0C203245 |
17263-PE0-010 |
— | ||
|
27
|
27
17266-PH1-010
Insulator
|
17266-PH1-010 |
— | ||
|
28
|
28
17271-PH1-000
Case
|
17271-PH1-000 |
— | ||
|
29
|
29
17272-PH1-000
Packing
|
17272-PH1-000 |
— | ||
|
30
|
30
17273-PH1-640
Plate
|
17273-PH1-640 |
— | ||
|
31
|
31
17274-PH1-000
Element
|
17274-PH1-000 |
— | ||
|
32
|
32
17304-PC6-000
Clamp b
|
17304-PC6-000 |
— | ||
|
33
|
33
17415-PH1-000
Plate
|
17415-PH1-000 |
— | ||
|
34
|
34
17436-PC6-003
Clamp b
|
17436-PC6-003 |
— | ||
|
35
|
35
32765-PD2-660
Clamp
|
32765-PD2-660 |
— | ||
|
37
|
37
90203-PB2-000 NutAIR CLEANER COVER (DACRO COATING) |
90203-PB2-000 |
from US $2.17 |
||
|
38
|
38
90308-SD2-A00 NutFLANGE, 6MM (DACRO COATING) |
90308-SD2-A00 |
US $4.45 |
||
|
39
|
39
93500-040-200-H ScrewPAN, 4X20 |
93500-040-200-H |
from US $0.37 |
||
|
40
|
40
93600-050-500-H ScrewFLAT, 5X50 |
93600-050-500-H |
US $0.52 |
||
|
41
|
41
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
42
|
42
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
43
|
43
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
43
|
43
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
