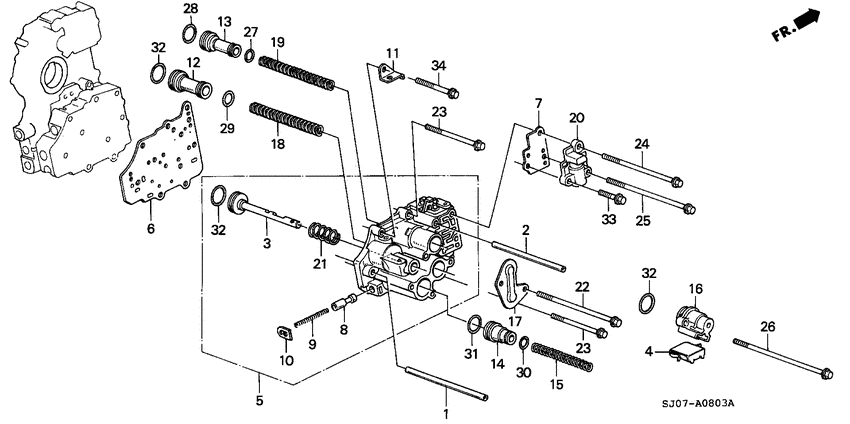

Servo body/modulator Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- power steering
- +
- area code
- KG
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22744-PC9-000
Pipe
|
22744-PC9-000 |
— | ||
|
2
|
2
22744-PC9-910
Pipe
|
22744-PC9-910 |
— | ||
|
3
|
3
24271-PC9-912
Shaft a
|
24271-PC9-912 |
— | ||
|
3
|
3
24272-PC9-912
Shaft b
|
24272-PC9-912 |
— | ||
|
3
|
3
24273-PC9-912
Shaft c
|
24273-PC9-912 |
— | ||
|
4
|
4
25422-PN6-801 Magnet comp.TRANSMISSION |
25422-PN6-801 |
US $7 |
||
|
5
|
5
27405-PC9-881
Body set
|
27405-PC9-881 |
— | ||
|
6
|
6
27412-PN6-820
Plate
|
27412-PN6-820 |
— | ||
|
7
|
7
27414-PF4-010
Plate
|
27414-PF4-010 |
— | ||
|
8
|
8
27415-PC9-010
Valve
|
27415-PC9-010 |
— | ||
|
9
|
9
27418-PC9-910
Spring
|
27418-PC9-910 |
— | ||
|
10
|
10
27419-PC9-010 SEAT, VALVE SPRINGVALVE SPRING |
27419-PC9-010 |
US $2.10 |
||
|
11
|
11
27433-PC9-000
Stopper
|
27433-PC9-000 |
— | ||
|
12
|
12
27572-PN6-800
Piston
|
27572-PN6-800 |
— | ||
|
13
|
13
27574-PF4-000
Piston
|
27574-PF4-000 |
— | ||
|
14
|
14
27576-PN6-800
Piston
|
27576-PN6-800 |
— | ||
|
15
|
15
27577-PF4-700
Spring
|
27577-PF4-700 |
— | ||
|
16
|
16
27579-PF4-010
Cover
|
27579-PF4-010 |
— | ||
|
17
|
17
27580-PF4-000
Cover
|
27580-PF4-000 |
— | ||
|
18
|
18
27581-PN6-820
Spring
|
27581-PN6-820 |
— | ||
|
19
|
19
27583-PF4-700
Spring
|
27583-PF4-700 |
— | ||
|
20
|
20
27800-PF4-640
Body assy
|
27800-PF4-640 |
— | ||
|
21
|
21
27861-PC9-010
Spring
|
27861-PC9-010 |
— | ||
|
22
|
22
90008-PF4-000
Bolt
|
90008-PF4-000 |
— | ||
|
23
|
23
90016-PF4-000 BoltFLANGE, 6X85 |
90016-PF4-000 |
from US $2.59 |
||
|
24
|
24
90017-PF4-000 BoltFLANGE, 6X127 |
90017-PF4-000 |
US $2.52 |
||
|
25
|
25
90018-PF4-000 BoltFLANGE, 6X140 |
90018-PF4-000 |
US $3.08 |
||
|
26
|
26
90019-PF4-000 BoltFLANGE, 6X152 |
90019-PF4-000 |
US $4.34 |
||
|
27
|
27
91321-PF4-004 O-ring18.3X2.4(NOK) |
91321-PF4-004 |
from US $1.85 |
||
|
28
|
28
91324-PF4-004 O-ring28.3X2.4 (NOK) |
91324-PF4-004 |
from US $1.78 |
||
|
29
|
29
91326-PF4-004 O-ring24.4X2.4 (NOK) |
91326-PF4-004 |
from US $1.68 |
||
|
30
|
30
91331-PC9-004 O-ring21.2X2.4 (NOK) |
91331-PC9-004 |
US $3.21 |
||
| replacement | |||||
|
30
|
30
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $1.93 |
||
|
30
|
30
91331-PC9-003 O-ring |
91331-PC9-003 |
from US $1.93 |
||
|
31
|
31
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
31
|
31
91344-PC9-003
O-ring
|
91344-PC9-003 |
— | ||
|
32
|
32
91344-580-000 O-ring31X2.7 (ARAI) |
91344-580-000 |
US $2 |
||
|
33
|
33
95700-060-280-8 BoltFLANGE, 6X28 |
95700-060-280-8 |
from US $0.59 |
||
| replacement | |||||
|
33
|
33
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
34
|
34
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
