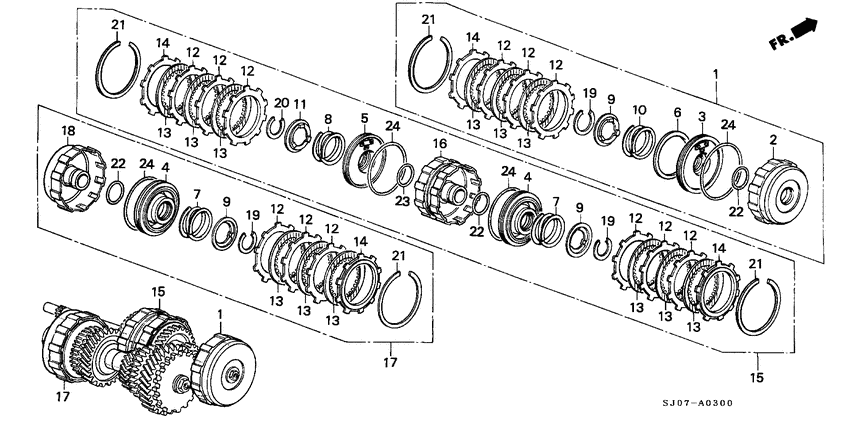

Clutch Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22500-PC9-912 Clutch assy.LOW |
22500-PC9-912 |
US $371.20 |
||
|
2
|
2
22510-PC9-000
Guide comp
|
22510-PC9-000 |
— | ||
|
3
|
3
22520-PC9-910 Piston compLOW CLUTCH |
22520-PC9-910 |
US $60.67 |
||
|
4
|
4
22530-PC9-010 Piston compCLUTCH |
22530-PC9-010 |
US $59.65 |
||
|
5
|
5
22530-PH0-670 Piston compSECOND CLUTCH |
22530-PH0-670 |
US $61.44 |
||
|
7
|
7
22541-PC9-000 SpringCLUTCH RETURN |
22541-PC9-000 |
US $30.35 |
||
|
8
|
8
22541-PC9-000 SpringCLUTCH RETURN |
22541-PC9-000 |
US $30.35 |
||
|
9
|
9
22542-PA9-000 SeatCLUTCH SPRING |
22542-PA9-000 |
from US $2.80 |
||
|
10
|
10
22542-PC9-004
Spring
|
22542-PC9-004 |
— | ||
|
10
|
10
22542-PC9-003
Spring
|
22542-PC9-003 |
— | ||
|
11
|
11
22542-PL4-000 SeatSECOND RETURN SPRING |
22542-PL4-000 |
US $3.57 |
||
|
12
|
12
22543-PC9-000 PlateCLUTCH (110MM) |
22543-PC9-000 |
US $7.56 |
||
|
13
|
13
22544-PC9-010 DiskCLUTCH |
22544-PC9-010 |
US $24.06 |
||
|
14
|
14
22556-PC9-000 PlateCLUTCH END (6) (2.9MM) |
22556-PC9-000 |
US $13.82 |
||
|
14
|
14
22551-PC9-000 PlateCLUTCH END (1) (2.4MM) |
22551-PC9-000 |
US $16.26 |
||
|
14
|
14
22557-PC9-000 PlateCLUTCH END (7) (3.0MM) |
22557-PC9-000 |
US $13.82 |
||
|
14
|
14
22552-PC9-000 PlateCLUTCH END (2) (2.5MM) |
22552-PC9-000 |
US $16.26 |
||
|
14
|
14
22558-PC9-000 PlateCLUTCH END (8) (3.1MM) |
22558-PC9-000 |
US $13.82 |
||
|
14
|
14
22553-PC9-000 PlateCLUTCH END (3) (2.6MM) |
22553-PC9-000 |
US $16.26 |
||
|
14
|
14
22559-PC9-000 PlateCLUTCH END (9) (3.2MM) |
22559-PC9-000 |
US $13.82 |
||
|
14
|
14
22554-PC9-000 PlateCLUTCH END (4) (2.7MM) |
22554-PC9-000 |
US $13.82 |
||
|
14
|
14
22560-PC9-000 PlateCLUTCH END (10) (3.3MM) |
22560-PC9-000 |
US $13.82 |
||
|
14
|
14
22555-PC9-000 PlateCLUTCH END (5) (2.8MM) |
22555-PC9-000 |
US $13.82 |
||
|
15
|
15
22600-PC9-070 Clutch assy.SECOND |
22600-PC9-070 |
US $710.40 |
||
|
16
|
16
22610-PL4-850 Guide compSECOND CLUTCH |
22610-PL4-850 |
US $304.64 |
||
|
17
|
17
22650-PC9-020 Clutch assy.THIRD |
22650-PC9-020 |
US $358.40 |
||
|
18
|
18
22661-PC9-000 Guide compTHIRD CLUTCH |
22661-PC9-000 |
US $166.40 |
||
|
19
|
19
90603-PA9-000 CirclipEXTERNAL, 40MM |
90603-PA9-000 |
from US $3.11 |
||
|
20
|
20
90603-PL4-000 CirclipEXTERNAL, 42MM |
90603-PL4-000 |
from US $3.03 |
||
|
21
|
21
90605-PC9-000 RingSNAP, 119MM |
90605-PC9-000 |
from US $5.62 |
||
|
22
|
22
91302-PA9-004 O-ring39.8X2.2 (NOK) |
91302-PA9-004 |
US $4.51 |
||
| replacement | |||||
|
22
|
22
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
22
|
22
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.96 |
||
|
23
|
23
91302-PL4-003 O-ring41.8X2.2 (NOK) |
91302-PL4-003 |
from US $2.52 |
||
|
24
|
24
91303-PC9-003 O-ring104X2.2 (ARAI) |
91303-PC9-003 |
from US $4.59 |
||
| replacement | |||||
|
24
|
24
91303-PC9-004 O-ring104X2.2 (NOK) |
91303-PC9-004 |
from US $5.18 |
||
|
24
|
24
91303-PC9-004 O-ring104X2.2 (NOK) |
91303-PC9-004 |
from US $5.18 |
||
