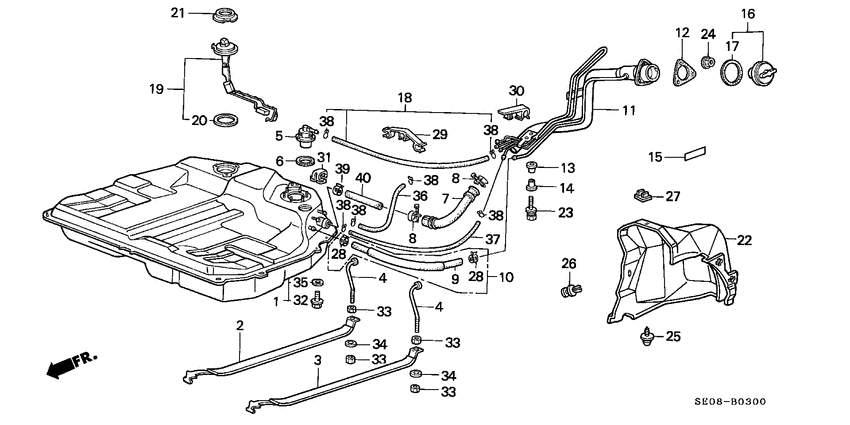

Fuel tank Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- STD
- area code
- KZ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17500-SE0-030
Tank comp.
00000000 - 0C300000 |
17500-SE0-030 |
— | ||
|
2
|
2
17521-SE0-010
Band
00000000 - 0C300254 |
17521-SE0-010 |
— | ||
|
4
|
4
17525-SE0-000
Bolt
|
17525-SE0-000 |
— | ||
|
5
|
5
17570-SB2-040
Valve
|
17570-SB2-040 |
— | ||
|
6
|
6
17575-SE0-000
Packing
|
17575-SE0-000 |
— | ||
|
7
|
7
17651-SE0-000
Tube
|
17651-SE0-000 |
— | ||
|
8
|
8
17652-SE0-000
Clip
|
17652-SE0-000 |
— | ||
|
9
|
9
17653-SB4-000
Tube
|
17653-SB4-000 |
— | ||
|
10
|
10
17658-SE0-000
Tube assy
|
17658-SE0-000 |
— | ||
|
11
|
11
17660-SE0-020
Pipe comp
0C200001 - 0C200049 |
17660-SE0-020 |
— | ||
|
11
|
11
17660-SE0-030
Pipe comp
0C200050 - 0C201368 |
17660-SE0-030 |
— | ||
|
11
|
11
17660-SE0-040
Pipe comp
0C201369 - |
17660-SE0-040 |
— | ||
|
12
|
12
17662-SG0-000
Packing
0C200001 - |
17662-SG0-000 |
— | ||
|
13
|
13
17664-SE0-000 BushFILLER PIPE MOUNT |
17664-SE0-000 |
US $3.29 |
||
|
14
|
14
17665-SF1-000
Collar
0C200001 - 0C300000 |
17665-SF1-000 |
— | ||
|
16
|
16
17670-SA5-013
Cap comp.
0C005498 - |
17670-SA5-013 |
— | ||
|
17
|
17
17682-679-013 PackingFUEL FILLER CAP |
17682-679-013 |
from US $4.59 |
||
|
18
|
18
17706-SE0-000
Tube
|
17706-SE0-000 |
— | ||
|
19
|
19
37800-SE3-023
Meter unit
0C100001 - |
37800-SE3-023 |
— | ||
|
19
|
19
37800-SE3-014
Meter unit
0C100001 - |
37800-SE3-014 |
— | ||
|
20
|
20
37801-SE3-000
Packing
0C100001 - |
37801-SE3-000 |
— | ||
|
21
|
21
37802-SE0-000
Retainer
|
37802-SE0-000 |
— | ||
|
22
|
22
74559-SE3-000
Cover
0C200050 - |
74559-SE3-000 |
— | ||
|
23
|
23
90011-471-000 BoltSPECIAL, 6X26 |
90011-471-000 |
from US $3.25 |
||
|
24
|
24
90103-SB0-000 NutFLANGE, 5MM 00000000 - 0C301317 |
90103-SB0-000 |
US $2.03 |
||
|
25
|
25
90114-SE0-000 ScrewTAPPING, 5X20 0C200050 - |
90114-SE0-000 |
from US $0.50 |
||
|
26
|
26
91545-SE0-003 Clip assy.8MM 0C200050 - 0C300000 |
91545-SE0-003 |
from US $2.52 |
||
|
27
|
27
91634-SE0-003
Grommet
0C200050 - 0C300000 |
91634-SE0-003 |
— | ||
|
28
|
28
90700-SB0-003 ClipAIR BLEED TUBE |
90700-SB0-003 |
US $3.18 |
||
|
29
|
29
91591-SE0-003
Clip
|
91591-SE0-003 |
— | ||
|
31
|
31
91691-SE0-003
Clip
|
91691-SE0-003 |
— | ||
|
32
|
32
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.33 |
||
|
33
|
33
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
33
|
33
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
34
|
34
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
35
|
35
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
36
|
36
95001-451-403-0
Tube
0C200001 - |
95001-451-403-0 |
— | ||
|
37
|
37
95001-451-703-0 TubeFUEL, 4.5X170 (95001-45001-60M) |
95001-451-703-0 |
US $1.55 |
||
|
38
|
38
95002-02084 ClipTUBE (B8) |
95002-02084 |
from US $0.44 |
||
|
39
|
39
95002-410-000-8 ClampTUBE (D10) |
95002-410-000-8 |
from US $0.74 |
||
|
40
|
40
95003-190-196-0 TubeVINYL, 7X11X190 (95003-19001-60M) |
95003-190-196-0 |
US $2.01 |
||
