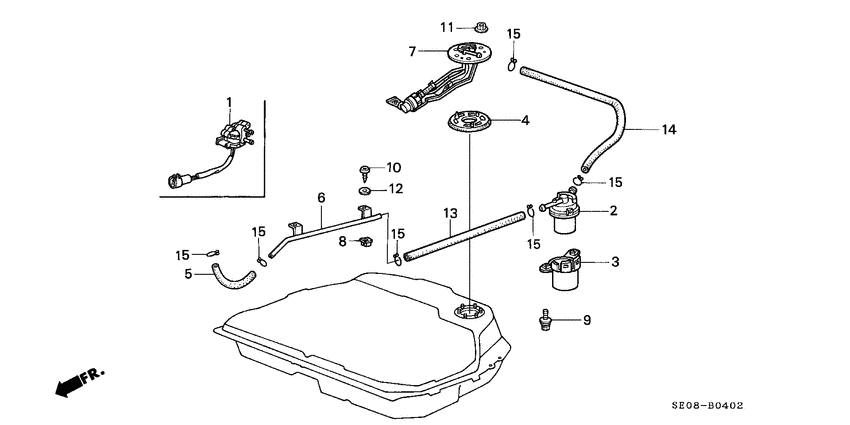

Fuel Pump (CARBURETOR) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX 1600
- area code
- KT
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
16900-SE0-004
Strainer comp.
|
16900-SE0-004 |
— | ||
|
2
|
2
16900-SE0-003
Strainer comp.
|
16900-SE0-003 |
— | ||
|
3
|
3
16902-SA5-000 CoverFUEL STRAINER 00000000 - 0C300000 |
16902-SA5-000 |
US $7.70 |
||
|
4
|
4
17574-SE0-000 PackingBASE |
17574-SE0-000 |
from US $7.51 |
||
|
5
|
5
17703-SE0-010
Tube
|
17703-SE0-010 |
— | ||
|
6
|
6
17707-SE0-000
Pipe comp
00000000 - 0C203123 |
17707-SE0-000 |
— | ||
|
7
|
7
17708-SE0-023
Pump unit
0C100001 - 0C100587 |
17708-SE0-023 |
— | ||
|
7
|
7
17708-SE0-033
Pump unit
0C100588 - 0C201668 |
17708-SE0-033 |
— | ||
|
8
|
8
90676-SA7-003 GrommetSCREW, 5MM (BLACK) |
90676-SA7-003 |
US $1.54 |
||
|
9
|
9
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
9
|
9
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
10
|
10
93904-25220 ScrewTAPPING, 5X12 |
93904-25220 |
from US $0.37 |
||
|
11
|
11
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
12
|
12
94103-05800 WasherPLAIN, 5MM 00000000 - 0C303181 |
94103-05800 |
from US $0.38 |
||
|
13
|
13
95001-751-303-0 TubeFUEL, 7.3X130 (95001-75001-60M) |
95001-751-303-0 |
US $2.22 |
||
|
14
|
14
95001-753-003-0 TubeFUEL, 7.3X300 (95001-75001-60M) |
95001-753-003-0 |
US $4 |
||
|
15
|
15
95002-02124 ClipTUBE(B12) |
95002-02124 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
