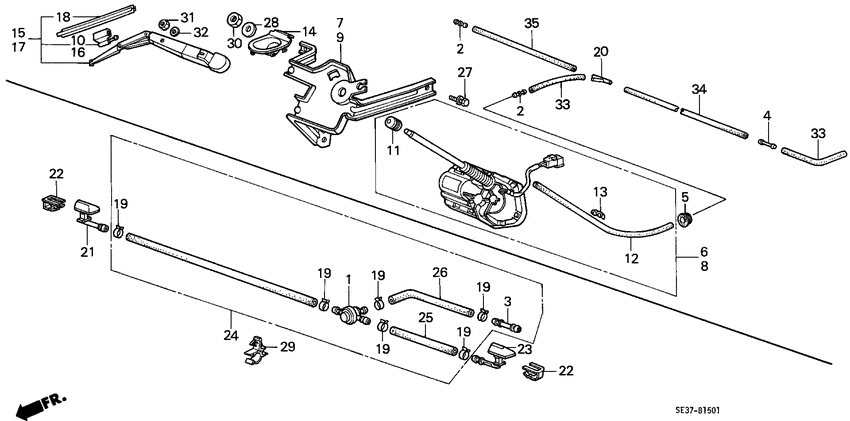

Headlight wiper/washer Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 5MT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
38562-SA5-003 JointRR. WASHER TUBE (MITSUBA) |
38562-SA5-003 |
from US $3.63 |
||
|
4
|
4
38571-SA5-621
Valve
|
38571-SA5-621 |
— | ||
|
5
|
5
63514-671-000
Grommet
|
63514-671-000 |
— | ||
|
6
|
6
76751-SE3-G04
Motor
|
76751-SE3-G04 |
— | ||
|
7
|
7
76755-SE3-G01
Bracket
|
76755-SE3-G01 |
— | ||
|
8
|
8
76761-SE3-G04
Motor comp
|
76761-SE3-G04 |
— | ||
|
9
|
9
76765-SE3-G01
Bracket
|
76765-SE3-G01 |
— | ||
|
10
|
10
76772-SE3-G04
Connector
|
76772-SE3-G04 |
— | ||
|
11
|
11
76782-SE3-G04
Cap
|
76782-SE3-G04 |
— | ||
|
12
|
12
76783-SE3-G04
Tube
|
76783-SE3-G04 |
— | ||
|
13
|
13
76784-SE3-G04 ClipTUBE |
76784-SE3-G04 |
US $4.76 |
||
|
14
|
14
76788-SE3-G00
Cap
|
76788-SE3-G00 |
— | ||
|
15
|
15
76790-SE3-G05
Arm & blade assy
0C104953 - |
76790-SE3-G05 |
— | ||
|
15
|
15
76790-SE3-G04
Arm & blade assy
00000000 - 0C104952 |
76790-SE3-G04 |
— | ||
|
16
|
16
76792-SE3-G04
Connector
|
76792-SE3-G04 |
— | ||
|
17
|
17
76795-SE3-G05
Arm & blade assy
0C104953 - |
76795-SE3-G05 |
— | ||
|
17
|
17
76795-SE3-G04
Arm & blade assy
00000000 - 0C104952 |
76795-SE3-G04 |
— | ||
|
18
|
18
76796-SE3-G04
Blade
|
76796-SE3-G04 |
— | ||
|
20
|
20
76830-SE0-003
Joint y
|
76830-SE0-003 |
— | ||
|
27
|
27
90126-SE3-000 Bolt-washer6X16 |
90126-SE3-000 |
US $1.82 |
||
|
28
|
28
90501-SE3-G04
Washer
|
90501-SE3-G04 |
— | ||
|
29
|
29
91528-SE0-003
Clip
|
91528-SE0-003 |
— | ||
|
30
|
30
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
31
|
31
94002-050-800-S NutHEX., 5MM |
94002-050-800-S |
from US $0.37 |
||
|
32
|
32
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
33
|
33
95003-070-153-1
Tube
|
95003-070-153-1 |
— | ||
|
34
|
34
95003-070-253-1
Tube
|
95003-070-253-1 |
— | ||
|
35
|
35
95003-071-503-1
Tube
|
95003-071-503-1 |
— |
