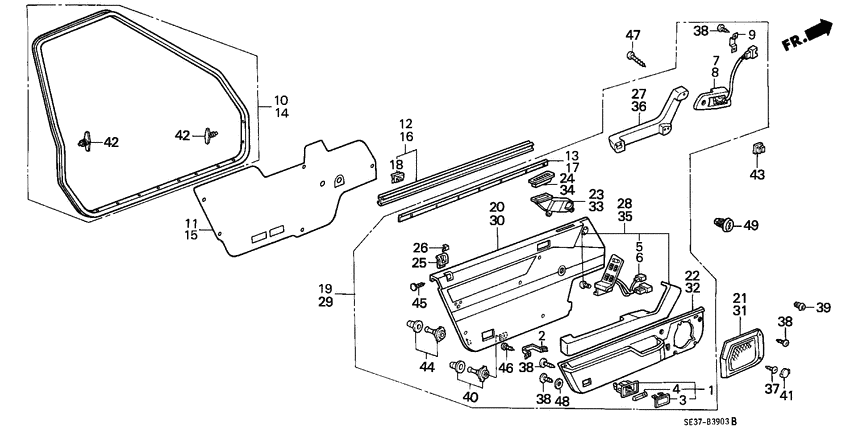

Front door lining (4D) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
72310-SE3-013
Weatherstrip
|
72310-SE3-013 |
— | ||
|
12
|
12
72335-SE3-000
Weatherstrip
|
72335-SE3-000 |
— | ||
|
13
|
13
72336-SE3-000
Molding
|
72336-SE3-000 |
— | ||
|
14
|
14
72350-SE3-013
Weatherstrip
|
72350-SE3-013 |
— | ||
|
15
|
15
72361-SE3-A00
Seal
|
72361-SE3-A00 |
— | ||
|
16
|
16
72375-SE3-000
Weatherstrip
|
72375-SE3-000 |
— | ||
|
17
|
17
72376-SE3-000
Molding
|
72376-SE3-000 |
— | ||
|
18
|
18
72380-SE3-003
Clip
|
72380-SE3-003 |
— | ||
|
19
|
19
83500-SE3-W02ZC Lining assy.R. FR. DOOR *YR89L* |
83500-SE3-W02ZC |
US $417.28 |
||
|
19
|
19
83500-SE3-W02ZB Lining assy.R. FR. DOOR *B49L* |
83500-SE3-W02ZB |
US $417.28 |
||
|
19
|
19
83500-SE3-W02ZA Lining assy.R. FR. DOOR *NH89L* |
83500-SE3-W02ZA |
US $417.28 |
||
|
20
|
20
83502-SE3-W00ZA BaseR. FR. DOOR LINING *NH89L* |
83502-SE3-W00ZA |
US $125.44 |
||
|
20
|
20
83502-SE3-W00ZD BaseR. FR. DOOR LINING *YR89L* |
83502-SE3-W00ZD |
US $125.44 |
||
|
20
|
20
83502-SE3-W00ZB BaseR. FR. DOOR LINING *B49L* |
83502-SE3-W00ZB |
US $125.44 |
||
|
21
|
21
83503-SE3-010ZE
Lid assy
|
83503-SE3-010ZE |
— | ||
|
21
|
21
83503-SE3-010ZC
Lid assy
|
83503-SE3-010ZC |
— | ||
|
21
|
21
83503-SE3-010ZB Lid assyR. DOOR SPEAKER *NH89L* |
83503-SE3-010ZB |
US $32.26 |
||
|
22
|
22
83504-SE3-020ZB
Pocket
|
83504-SE3-020ZB |
— | ||
|
22
|
22
83504-SE3-020ZE
Pocket
|
83504-SE3-020ZE |
— | ||
|
22
|
22
83504-SE3-020ZC
Pocket
|
83504-SE3-020ZC |
— | ||
|
23
|
23
83505-SE3-000
Duct
|
83505-SE3-000 |
— | ||
|
24
|
24
83506-SE3-000ZB
Outlet assy
|
83506-SE3-000ZB |
— | ||
|
24
|
24
83506-SE3-000ZE
Outlet assy
|
83506-SE3-000ZE |
— | ||
|
24
|
24
83506-SE3-000ZC
Outlet assy
|
83506-SE3-000ZC |
— | ||
|
25
|
25
83508-SE3-000ZC
Cover
|
83508-SE3-000ZC |
— | ||
|
25
|
25
83508-SE3-000ZB
Cover
|
83508-SE3-000ZB |
— | ||
| replacement | |||||
|
25
|
25
83508-SE3-000ZA
Cover
|
83508-SE3-000ZA |
— | ||
|
25
|
25
83508-SE3-000ZE
Cover
|
83508-SE3-000ZE |
— | ||
|
26
|
26
83509-SE3-000
Clip
|
83509-SE3-000 |
— | ||
|
27
|
27
83541-SE3-010ZB
Armrest
|
83541-SE3-010ZB |
— | ||
|
27
|
27
83541-SE3-010ZC
Armrest
|
83541-SE3-010ZC |
— | ||
|
27
|
27
83541-SE3-010ZE
Armrest
|
83541-SE3-010ZE |
— | ||
|
29
|
29
83550-SE3-W02ZA Lining assy.L. FR. DOOR *NH89L* |
83550-SE3-W02ZA |
US $417.28 |
||
|
29
|
29
83550-SE3-W02ZC Lining assy.L. FR. DOOR *YR89L* |
83550-SE3-W02ZC |
US $417.28 |
||
|
29
|
29
83550-SE3-W02ZB Lining assy.L. FR. DOOR *B49L* |
83550-SE3-W02ZB |
US $417.28 |
||
|
30
|
30
83552-SE3-W00ZD BaseL. FR. DOOR LINING *YR89L* |
83552-SE3-W00ZD |
US $125.44 |
||
|
30
|
30
83552-SE3-W00ZB BaseL. FR. DOOR LINING *B49L* |
83552-SE3-W00ZB |
US $125.44 |
||
|
30
|
30
83552-SE3-W00ZA BaseL. FR. DOOR LINING *NH89L* |
83552-SE3-W00ZA |
US $125.44 |
||
|
31
|
31
83553-SE3-010ZE
Lid assy
|
83553-SE3-010ZE |
— | ||
|
31
|
31
83553-SE3-010ZC
Lid assy
|
83553-SE3-010ZC |
— | ||
|
31
|
31
83553-SE3-010ZB Lid assyL. DOOR SPEAKER *NH89L* |
83553-SE3-010ZB |
US $32.26 |
||
|
32
|
32
83554-SE3-020ZE
Pocket
|
83554-SE3-020ZE |
— | ||
|
32
|
32
83554-SE3-020ZC
Pocket
|
83554-SE3-020ZC |
— | ||
|
32
|
32
83554-SE3-020ZB
Pocket
|
83554-SE3-020ZB |
— | ||
|
33
|
33
83555-SE3-000
Duct
|
83555-SE3-000 |
— | ||
|
34
|
34
83556-SE3-000ZB
Outlet assy
|
83556-SE3-000ZB |
— | ||
|
34
|
34
83556-SE3-000ZE
Outlet assy
|
83556-SE3-000ZE |
— | ||
|
34
|
34
83556-SE3-000ZC
Outlet assy
|
83556-SE3-000ZC |
— | ||
|
36
|
36
83591-SE3-010ZE
Armrest
|
83591-SE3-010ZE |
— | ||
|
36
|
36
83591-SE3-010ZC
Armrest
|
83591-SE3-010ZC |
— | ||
|
36
|
36
83591-SE3-010ZB
Armrest
|
83591-SE3-010ZB |
— | ||
|
37
|
37
90131-SE3-003 ScrewTAPPING, 4X16 |
90131-SE3-003 |
US $1.54 |
||
|
38
|
38
90132-SE3-003 ScrewTAPPING, 4X12 |
90132-SE3-003 |
US $1.40 |
||
|
39
|
39
90662-SE3-003
Grommet
|
90662-SE3-003 |
— | ||
|
40
|
40
90663-671-003
Clip
|
90663-671-003 |
— | ||
|
41
|
41
90693-693-000YH CapLINING *B49L* |
90693-693-000YH |
US $3.29 |
||
|
41
|
41
90693-693-000YL
Cap
|
90693-693-000YL |
— | ||
|
41
|
41
90693-693-000YJ CapLINING *NH89L* |
90693-693-000YJ |
US $3.29 |
||
|
42
|
42
91530-SE0-003
Clip A
|
91530-SE0-003 |
— | ||
| replacement | |||||
|
42
|
42
90664-671-003 ClipCANOE |
90664-671-003 |
from US $3.40 |
||
|
43
|
43
91561-SE3-003 GrommetSCREW, 6MM |
91561-SE3-003 |
US $2.10 |
||
|
44
|
44
91562-SE3-003
Clip
|
91562-SE3-003 |
— | ||
|
45
|
45
91564-SE3-003 PlugDOOR LINING SEAL(BLACK) |
91564-SE3-003 |
from US $1.12 |
||
|
46
|
46
93901-24420 ScrewTAPPING, 4X16 |
93901-24420 |
from US $0.37 |
||
|
47
|
47
93901-46610 ScrewTAPPING, 6X35 |
93901-46610 |
US $0.52 |
||
|
48
|
48
94103-04800 WasherPLAIN, 4MM |
94103-04800 |
from US $0.37 |
||
|
49
|
49
90662-693-003 GrommetSCREW, 4MM (BLUE) |
90662-693-003 |
US $1.68 |
||
