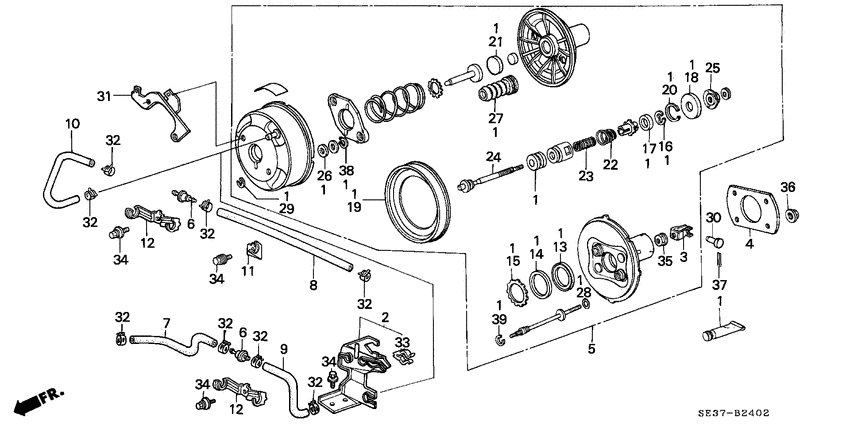

Master power (8") Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06464-SE0-000
Power set
|
06464-SE0-000 |
— | ||
|
2
|
2
17932-SE0-A00
Clamp
|
17932-SE0-A00 |
— | ||
|
3
|
3
46151-SE0-003 YokePUSH ROD(NISSIN) |
46151-SE0-003 |
US $18.07 |
||
|
4
|
4
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
5
|
5
46400-SE0-003
Power assy.
|
46400-SE0-003 |
— | ||
|
6
|
6
46401-SE0-003
Valve assy.
|
46401-SE0-003 |
— | ||
|
7
|
7
46404-SE0-A02
Tube a
|
46404-SE0-A02 |
— | ||
|
9
|
9
46405-SE0-A01
Tube b
|
46405-SE0-A01 |
— | ||
|
12
|
12
46407-SE0-A00 ClampCHECK VALVE |
46407-SE0-A00 |
US $6.44 |
||
|
13
|
13
46411-692-003 SealPISTON |
46411-692-003 |
US $8.26 |
||
|
14
|
14
46412-671-003 Bush |
46412-671-003 |
US $7.42 |
||
|
15
|
15
46413-671-003 BushSTOPPER |
46413-671-003 |
US $4.90 |
||
|
16
|
16
46417-692-003
E-ring
|
46417-692-003 |
— | ||
|
17
|
17
46418-671-003
Element a
|
46418-671-003 |
— | ||
|
18
|
18
46419-692-003 Element b |
46419-692-003 |
US $3.29 |
||
|
19
|
19
46422-SA5-013
Diaphragm
|
46422-SA5-013 |
— | ||
|
20
|
20
46425-SA0-003
Ring
|
46425-SA0-003 |
— | ||
|
21
|
21
46426-SA5-951
Rubber
|
46426-SA5-951 |
— | ||
|
22
|
22
46431-692-003
Spring
|
46431-692-003 |
— | ||
|
23
|
23
46432-SA0-003
Spring
|
46432-SA0-003 |
— | ||
|
24
|
24
46433-SB2-003
Rod comp
|
46433-SB2-003 |
— | ||
|
25
|
25
46443-692-003 AdjusterPUSH ROD |
46443-692-003 |
US $2.80 |
||
|
26
|
26
46446-SA5-003
Seal
|
46446-SA5-003 |
— | ||
|
27
|
27
46447-SA5-003
Boot
|
46447-SA5-003 |
— | ||
|
28
|
28
46451-SA5-003
O-ring
|
46451-SA5-003 |
— | ||
|
29
|
29
46452-SA5-003
E-ring
|
46452-SA5-003 |
— | ||
|
30
|
30
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
31
|
31
46674-SE0-310 BracketCOUPLER |
46674-SE0-310 |
US $6.44 |
||
|
32
|
32
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.46 |
||
|
33
|
33
90684-SE0-000 ClipFUEL HOSE |
90684-SE0-000 |
US $2.59 |
||
|
34
|
34
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
34
|
34
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
35
|
35
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
36
|
36
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
37
|
37
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
|
38
|
38
94510-10000 CirclipEXTERNAL, 10MM |
94510-10000 |
from US $0.44 |
||
|
39
|
39
94520-19000 CirclipINTERNAL, 19MM |
94520-19000 |
from US $0.52 |
||
