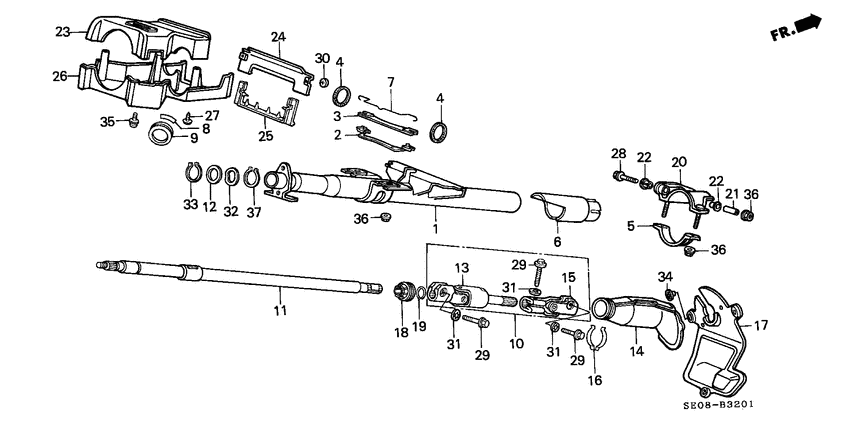

Steering column (LH) Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX TUR
- area code
- KP
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53210-SE0-941 ColumnSTEERING 00000000 - 0C202544 |
53210-SE0-941 |
US $123.52 |
||
|
2
|
2
53211-SE0-000
Holder
|
53211-SE0-000 |
— | ||
|
3
|
3
53212-SE0-000
Plate comp
|
53212-SE0-000 |
— | ||
|
4
|
4
53213-SE0-000
Band
00000000 - 0C003197 |
53213-SE0-000 |
— | ||
|
5
|
5
53216-SE0-000
Holder b
|
53216-SE0-000 |
— | ||
|
6
|
6
53217-SE0-000
Collar
|
53217-SE0-000 |
— | ||
|
7
|
7
53218-SE0-000
Spring
|
53218-SE0-000 |
— | ||
|
8
|
8
53231-SB2-000 LabelIGNITION SWITCH |
53231-SB2-000 |
US $1.82 |
||
|
9
|
9
53235-SA5-000 RingCOLUMN COVER 00000000 - 0C300000 |
53235-SA5-000 |
US $4.48 |
||
|
11
|
11
53310-SE0-003
Shaft comp.
|
53310-SE0-003 |
— | ||
|
12
|
12
53311-692-000
Washer
|
53311-692-000 |
— | ||
|
13
|
13
53319-SE0-G21
Joint a comp
0C100001 - 0C300000 |
53319-SE0-G21 |
— | ||
|
14
|
14
53320-SE0-A00
Cover
|
53320-SE0-A00 |
— | ||
|
15
|
15
53323-SE0-003 Joint comp. bSTEERING |
53323-SE0-003 |
US $86.40 |
||
|
16
|
16
53326-SB0-000 Clip bJOINT COVER |
53326-SB0-000 |
US $3.64 |
||
|
17
|
17
53332-SE0-A01
Plate
00000000 - 0C200000 |
53332-SE0-A01 |
— | ||
|
18
|
18
53335-SB3-013
Bush
|
53335-SB3-013 |
— | ||
|
19
|
19
53336-SB3-000
Ring
|
53336-SB3-000 |
— | ||
|
20
|
20
53363-SE0-A00 PivotCOLUMN 00000000 - 0C202544 |
53363-SE0-A00 |
US $16.90 |
||
|
21
|
21
53364-SA0-960
Collar
|
53364-SA0-960 |
— | ||
|
22
|
22
53365-SA0-961 BushPIVOT |
53365-SA0-961 |
US $7.42 |
||
|
23
|
23
77351-SE3-A11ZA
Cover
|
77351-SE3-A11ZA |
— | ||
|
25
|
25
77353-SE3-A00
Blind
|
77353-SE3-A00 |
— | ||
|
26
|
26
77361-SE3-A11ZA
Cover
00000000 - 0C300000 |
77361-SE3-A11ZA |
— | ||
|
27
|
27
90102-SA4-000 ScrewTAPPING, 4X16 00000000 - 0C100000 |
90102-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
27
|
27
93913-14480 ScrewTAPPING, 4X16 (PO) 00000000 - 0C100000 |
93913-14480 |
from US $0.37 |
||
|
28
|
28
90130-SB3-003 BoltPIVOT |
90130-SB3-003 |
US $3.29 |
||
|
29
|
29
90135-SB0-003 BoltSTEERING YOKE, 8X28 (NIPPON SEIKO) |
90135-SB0-003 |
from US $0.77 |
||
|
31
|
31
90511-671-003 WasherTOOTHED LOCK |
90511-671-003 |
US $0.19 |
||
|
32
|
32
90551-SE0-000 WasherSPRING, 24X18 |
90551-SE0-000 |
US $4.66 |
||
|
33
|
33
90661-SE0-003
Circlip
|
90661-SE0-003 |
— | ||
|
34
|
34
90676-SE0-003 ClipJOINT COVER PLATE |
90676-SE0-003 |
US $2.37 |
||
|
35
|
35
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
36
|
36
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
37
|
37
94510-18000 CirclipEXTERNAL, 18MM |
94510-18000 |
from US $0.45 |
||
