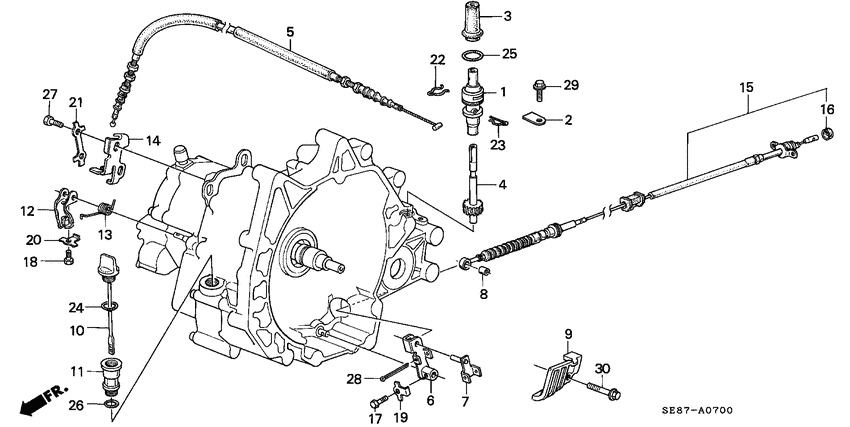

Control lever/ control wire Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23811-PC1-000 Holder compSPEEDOMETER GEAR |
23811-PC1-000 |
US $20.54 |
||
|
2
|
2
23813-689-000
Plate
|
23813-689-000 |
— | ||
|
3
|
3
23814-689-000 SealGEAR HOLDER |
23814-689-000 |
US $5.18 |
||
|
4
|
4
23820-PC9-950
Gear
|
23820-PC9-950 |
— | ||
|
5
|
5
24360-PF4-L01
Cable comp
|
24360-PF4-L01 |
— | ||
|
6
|
6
24412-PF4-000
Lever
|
24412-PF4-000 |
— | ||
|
7
|
7
24414-PA9-010 PinCONTROL |
24414-PA9-010 |
US $4.06 |
||
|
8
|
8
24415-PA9-000 RollerCONTROL LEVER |
24415-PA9-000 |
US $2.80 |
||
|
9
|
9
24901-PC9-950
Holder
|
24901-PC9-950 |
— | ||
|
10
|
10
25610-PF4-800
Gauge comp.
|
25610-PF4-800 |
— | ||
|
11
|
11
25613-PF4-000
Pipe
|
25613-PF4-000 |
— | ||
|
12
|
12
27494-PF4-000
Lever
|
27494-PF4-000 |
— | ||
|
13
|
13
27495-PN6-000
Spring
|
27495-PN6-000 |
— | ||
|
14
|
14
27496-PF4-000
Stay
|
27496-PF4-000 |
— | ||
|
15
|
15
54315-SE0-982
Wire
|
54315-SE0-982 |
— | ||
|
16
|
16
54341-SA0-980
Boot
|
54341-SA0-980 |
— | ||
|
17
|
17
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
18
|
18
90010-PA9-000
Bolt
|
90010-PA9-000 |
— | ||
|
19
|
19
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
20
|
20
90436-PA9-000
Washer
|
90436-PA9-000 |
— | ||
|
21
|
21
90437-PA9-000
Washer
|
90437-PA9-000 |
— | ||
|
22
|
22
90637-689-000 ClipSPEEDOMETER CABLE |
90637-689-000 |
US $3.42 |
||
|
23
|
23
90638-689-000 ClipSPEEDOMETER GEAR |
90638-689-000 |
US $3.27 |
||
|
24
|
24
91307-425-003 O-ring21.5X3.2 |
91307-425-003 |
from US $1.67 |
||
|
25
|
25
91313-611-000 O-ring23.5X2 |
91313-611-000 |
US $2.59 |
||
|
26
|
26
91324-PC6-000 O-ring20.6X2.6 |
91324-PC6-000 |
from US $1.78 |
||
|
27
|
27
92000-06016-0H BoltHEX., 6X16 |
92000-06016-0H |
from US $0.44 |
||
| replacement | |||||
|
27
|
27
92101-06016-0H BoltHEX., 6X16 |
92101-06016-0H |
from US $0.44 |
||
|
28
|
28
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
|
29
|
29
95700-060-160-8 BoltFLANGE, 6X16 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
30
|
30
95700-080-350-8 BoltFLANGE, 8X35 |
95700-080-350-8 |
from US $0.74 |
||
| replacement | |||||
|
30
|
30
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
