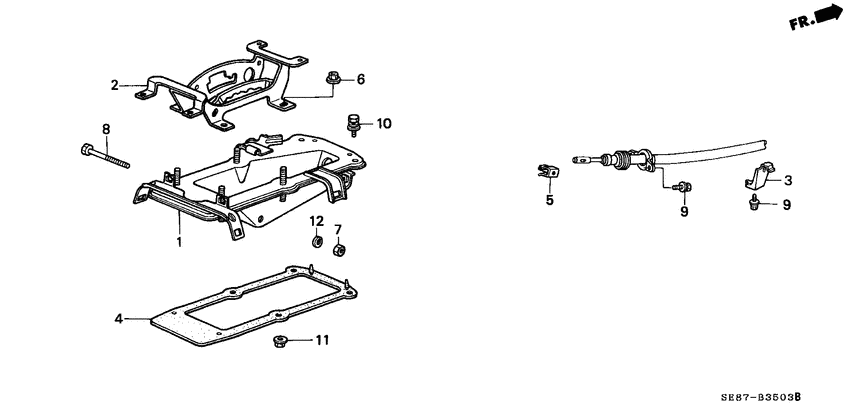

Select lever bracket (AT) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54201-SE0-981
Bracket
|
54201-SE0-981 |
— | ||
|
2
|
2
54202-SE0-981
Bracket
|
54202-SE0-981 |
— | ||
|
3
|
3
54317-SE0-982
Holder
|
54317-SE0-982 |
— | ||
|
4
|
4
54318-SE0-010
Seal
|
54318-SE0-010 |
— | ||
|
5
|
5
54363-SE0-980
Pin
|
54363-SE0-980 |
— | ||
|
6
|
6
90114-SA0-000 NutSELF-LOCK, 6MM 00000000 - 0C300382 |
90114-SA0-000 |
from US $1.70 |
||
|
6
|
6
90114-SF1-000 NutSELF-LOCK, 6MM 0C300383 - |
90114-SF1-000 |
US $2.38 |
||
|
7
|
7
90308-SA0-981 NutSELF-LOCK, 6MM |
90308-SA0-981 |
from US $1.82 |
||
|
8
|
8
92200-06055-0H BoltHEX., 6X55 |
92200-06055-0H |
US $0.59 |
||
|
9
|
9
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
9
|
9
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
10
|
10
93492-060-160-8 Bolt-washer6X16 |
93492-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
10
|
10
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
11
|
11
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
