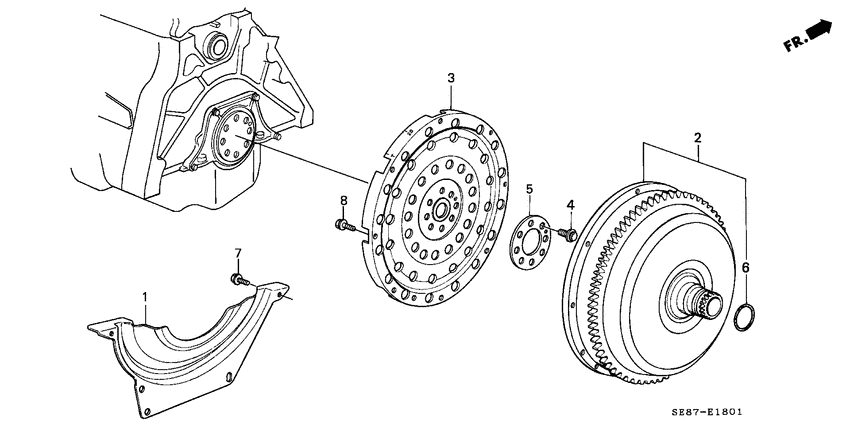

Torque converter Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21351-PH2-900
Cover
|
21351-PH2-900 |
— | ||
|
2
|
2
26000-PC9-882 Converter assyTORQUE |
26000-PC9-882 |
US $1,022.72 |
||
|
3
|
3
26251-PH4-640
Plate
|
26251-PH4-640 |
— | ||
|
4
|
4
90023-PA9-000 BoltSPECIAL |
90023-PA9-000 |
from US $2.65 |
||
|
5
|
5
90429-PC6-900
Washer
|
90429-PC6-900 |
— | ||
|
6
|
6
91302-639-000 O-ring32X1.9 |
91302-639-000 |
from US $2.92 |
||
|
7
|
7
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
7
|
7
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
8
|
8
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
8
|
8
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
