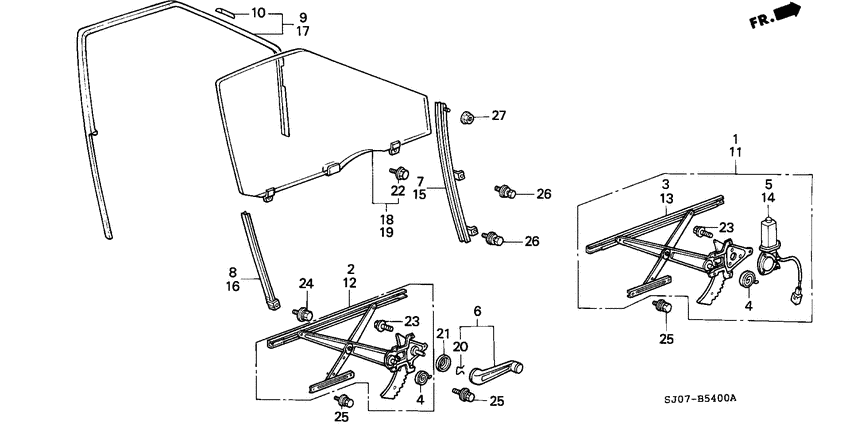

Front door windows/ regulators (4D) Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
72210-SE3-003
Regulator
|
72210-SE3-003 |
— | ||
|
4
|
4
72212-SH3-003
Spring
|
72212-SH3-003 |
— | ||
|
6
|
6
72220-SE0-F00ZB
Handle assy
|
72220-SE0-F00ZB |
— | ||
|
6
|
6
72220-SE0-F00ZD
Handle assy
|
72220-SE0-F00ZD |
— | ||
|
6
|
6
72220-SE0-F00ZC Handle assyREGULATOR *B49L* |
72220-SE0-F00ZC |
US $16.38 |
||
|
7
|
7
72230-SE3-000
Sash
|
72230-SE3-000 |
— | ||
|
8
|
8
72231-SE3-000
Sash
|
72231-SE3-000 |
— | ||
|
9
|
9
72235-SE3-003 RunchannelR. FR. DOOR 00000000 - 0C239880 |
72235-SE3-003 |
US $92.80 |
||
|
9
|
9
72235-SE3-013
Runchannel
0C239881 - |
72235-SE3-013 |
— | ||
|
10
|
10
72237-SE3-000
Clip
0C239881 - |
72237-SE3-000 |
— | ||
|
12
|
12
72250-SE3-003
Regulator
|
72250-SE3-003 |
— | ||
|
15
|
15
72270-SE3-000
Sash
|
72270-SE3-000 |
— | ||
|
16
|
16
72271-SE3-000
Sash
|
72271-SE3-000 |
— | ||
|
17
|
17
72275-SE3-003 RunchannelL. FR. DOOR 00000000 - 0C239880 |
72275-SE3-003 |
US $92.80 |
||
|
17
|
17
72275-SE3-013
Runchannel
0C239881 - |
72275-SE3-013 |
— | ||
|
18
|
18
73300-SE3-000
Glass assy
|
73300-SE3-000 |
— | ||
|
19
|
19
73350-SE3-000
Glass assy
|
73350-SE3-000 |
— | ||
|
20
|
20
75342-679-000 PinWINDOW REGULATOR HANDLE |
75342-679-000 |
US $2.04 |
||
|
21
|
21
75343-657-010
Escutcheon
|
75343-657-010 |
— | ||
|
22
|
22
90011-896-000 BoltFLANGE, 6X8 |
90011-896-000 |
US $3.98 |
||
|
23
|
23
90120-SE3-003 BoltFLANGE, 6X12 |
90120-SE3-003 |
US $1.40 |
||
|
24
|
24
93493-060-120-7 Bolt-washer6X12 |
93493-060-120-7 |
from US $0.59 |
||
| replacement | |||||
|
24
|
24
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
25
|
25
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
25
|
25
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
26
|
26
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
26
|
26
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
27
|
27
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
