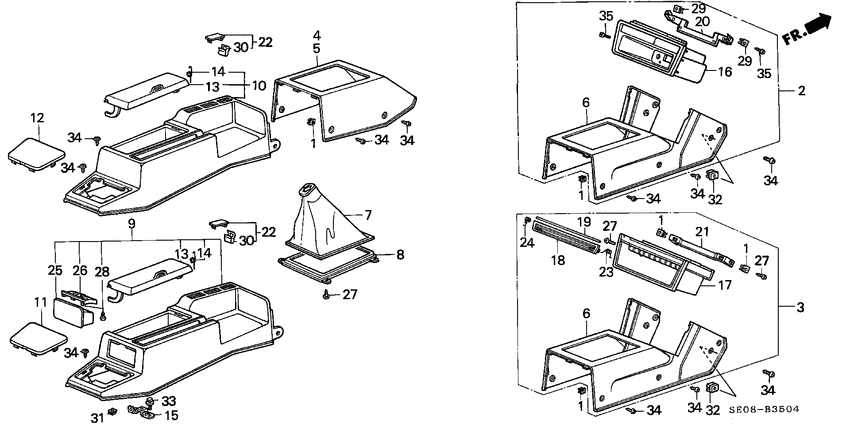

Console Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600 TUR
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75522-634-000 GrommetSCREW, 4MM |
75522-634-000 |
US $6.04 |
||
| replacement | |||||
|
1
|
1
90866-SA0-000 GrommetSCREW, 4MM |
90866-SA0-000 |
from US $2.37 |
||
|
3
|
3
83410-SE3-962ZE Console assyFR. *YR89L* 0C100001 - 0C300000 |
83410-SE3-962ZE |
US $177.92 |
||
|
3
|
3
83410-SE3-962ZA Console assyFR. *NH89L* 0C100001 - 0C300000 |
83410-SE3-962ZA |
US $177.92 |
||
|
3
|
3
83410-SE3-962ZD Console assyFR. *R53L* 0C100001 - 0C200000 |
83410-SE3-962ZD |
US $177.92 |
||
|
3
|
3
83410-SE3-962ZB Console assyFR. *B49L* 0C100001 - 0C300000 |
83410-SE3-962ZB |
US $177.92 |
||
|
10
|
10
83440-SE3-A01ZA
Console assy
|
83440-SE3-A01ZA |
— | ||
|
10
|
10
83440-SE3-A01ZC
Console assy
0C100001 - 0C200000 |
83440-SE3-A01ZC |
— | ||
|
10
|
10
83440-SE3-A01ZD
Console assy
|
83440-SE3-A01ZD |
— | ||
|
10
|
10
83440-SE3-A01ZB
Console assy
|
83440-SE3-A01ZB |
— | ||
|
12
|
12
83442-SE3-003ZE
Cover
|
83442-SE3-003ZE |
— | ||
|
12
|
12
83442-SE3-003ZB
Cover
|
83442-SE3-003ZB |
— | ||
|
12
|
12
83442-SE3-003ZD CoverRR. CONSOLE *R53L* 0C100001 - 0C200000 |
83442-SE3-003ZD |
US $9.66 |
||
|
12
|
12
83442-SE3-003ZC
Cover
|
83442-SE3-003ZC |
— | ||
|
13
|
13
83443-SE3-A01ZC LidRR. CONSOLE *R53L* 0C100001 - 0C200000 |
83443-SE3-A01ZC |
US $13.82 |
||
|
13
|
13
83443-SE3-A01ZD
Lid
|
83443-SE3-A01ZD |
— | ||
|
13
|
13
83443-SE3-A01ZB
Lid
|
83443-SE3-A01ZB |
— | ||
|
13
|
13
83443-SE3-A01ZA
Lid
|
83443-SE3-A01ZA |
— | ||
|
14
|
14
83444-SE3-G00
Spring
|
83444-SE3-G00 |
— | ||
|
15
|
15
83449-SE3-000
Bracket c
|
83449-SE3-000 |
— | ||
|
17
|
17
83451-SE3-940ZA BoxFR. CONSOLE *NH1L* 00000000 - 0C200000 |
83451-SE3-940ZA |
US $40.96 |
||
|
18
|
18
83452-SE3-940ZA
Cover
|
83452-SE3-940ZA |
— | ||
|
19
|
19
83453-SE3-940
Pin
|
83453-SE3-940 |
— | ||
|
21
|
21
83454-SE3-940
Stay
|
83454-SE3-940 |
— | ||
|
22
|
22
83455-SE3-010ZE Lid assySWITCH HOLE *R53L* 0C100001 - 0C200000 |
83455-SE3-010ZE |
US $7.42 |
||
|
22
|
22
83455-SE3-010ZD
Lid assy
|
83455-SE3-010ZD |
— | ||
|
22
|
22
83455-SE3-010ZC
Lid assy
|
83455-SE3-010ZC |
— | ||
|
22
|
22
83455-SE3-010ZB
Lid assy
|
83455-SE3-010ZB |
— | ||
|
23
|
23
83457-SE3-941
Spring
|
83457-SE3-941 |
— | ||
|
24
|
24
83458-SE3-941
Spring
|
83458-SE3-941 |
— | ||
|
27
|
27
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
27
|
27
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
31
|
31
91601-SE3-003
Grommet
|
91601-SE3-003 |
— | ||
|
32
|
32
91636-SE3-003
Grommet
0C100001 - 0C202632 |
91636-SE3-003 |
— | ||
|
33
|
33
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
33
|
33
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.62 |
||
|
34
|
34
93903-24480 ScrewTAPPING, 4X16 |
93903-24480 |
from US $0.37 |
||
