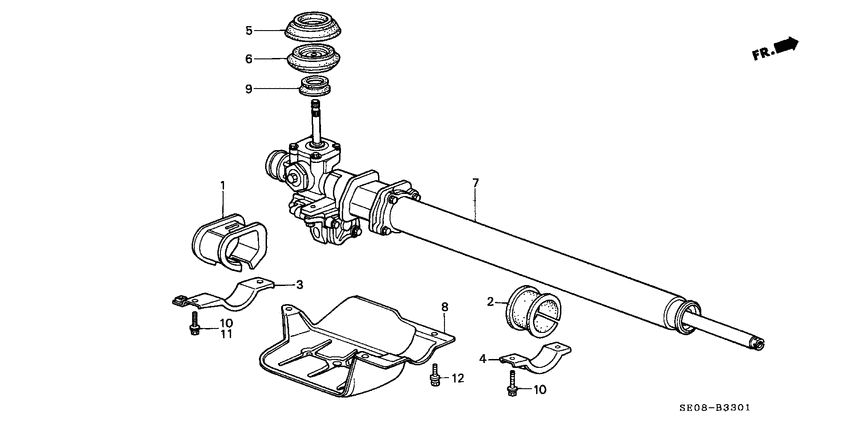

Power steering gear box (LH) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600 TUR
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53435-SE0-950
Cushion a
|
53435-SE0-950 |
— | ||
|
2
|
2
53436-SE0-950
Cushion b
|
53436-SE0-950 |
— | ||
|
3
|
3
53437-SE0-950
Bracket a
|
53437-SE0-950 |
— | ||
|
4
|
4
53438-SE0-950
Bracket b
|
53438-SE0-950 |
— | ||
|
5
|
5
53501-SE0-950
Grommet a
|
53501-SE0-950 |
— | ||
|
6
|
6
53502-SB0-000
Grommet b
|
53502-SB0-000 |
— | ||
|
7
|
7
53601-SE0-A55
Box assy
0C100001 - 0C200000 |
53601-SE0-A55 |
— | ||
|
7
|
7
53601-SE0-A54 Box assyPOWER STEERING GEAR 0C001049 - 0C100000 |
53601-SE0-A54 |
US $1,262.08 |
||
|
8
|
8
53692-SE0-A51 GuardL. SPLASH 00000000 - 0C300000 |
53692-SE0-A51 |
US $27.01 |
||
|
9
|
9
53760-SA5-950
Rubber
|
53760-SA5-950 |
— | ||
|
10
|
10
93482-080-200-8 Bolt-washer8X20 00000000 - 0C200000 |
93482-080-200-8 |
from US $0.59 |
||
|
12
|
12
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
12
|
12
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
