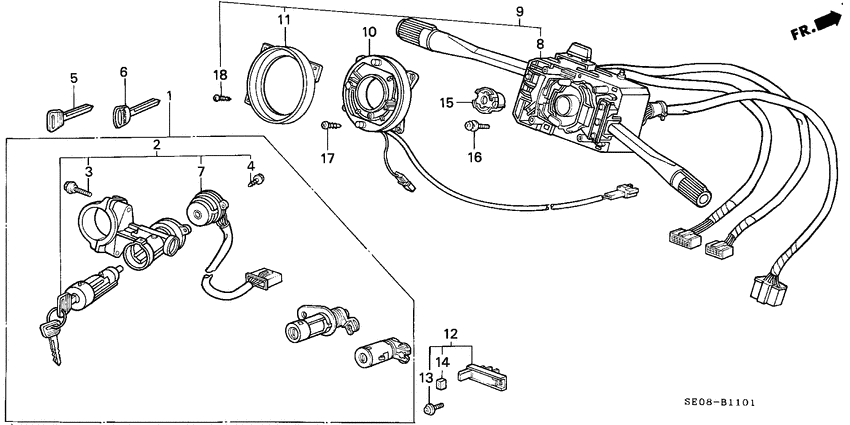

Switch (2) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX 1600 TUR
- area code
- KP
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-SE3-F10
Cylinder set
0C002991 - 0C200000 |
35010-SE3-F10 |
— | ||
|
2
|
2
35100-SE3-G01
Lock assy
|
35100-SE3-G01 |
— | ||
|
3
|
3
35102-SA5-003 BoltBREAK HEAD 00000000 - 0C202540 |
35102-SA5-003 |
US $2 |
||
| replacement | |||||
|
3
|
3
35102-SV4-003 BoltBREAK HEAD 00000000 - 0C202540 |
35102-SV4-003 |
from US $2 |
||
|
4
|
4
35103-SA5-003
Screw
00000000 - 0C300000 |
35103-SA5-003 |
— | ||
|
5
|
5
35111-SA5-922
Key
|
35111-SA5-922 |
— | ||
|
6
|
6
35112-SA5-771 KeyBLANK (SUB) 00000000 - 0C200000 |
35112-SA5-771 |
US $13.86 |
||
|
7
|
7
35130-SE0-900
Switch comp
|
35130-SE0-900 |
— | ||
|
8
|
8
35250-SE3-G03
Switch assy
0C006860 - 0C200000 |
35250-SE3-G03 |
— | ||
|
11
|
11
35259-SE0-000
Cover
|
35259-SE0-000 |
— | ||
|
12
|
12
35400-692-033
Switch assy
|
35400-692-033 |
— | ||
|
13
|
13
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
14
|
14
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
15
|
15
53271-692-003
Cam
|
53271-692-003 |
— | ||
|
16
|
16
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
18
|
18
93905-32420
Screw
00000000 - 0C300000 |
93905-32420 |
— | ||
