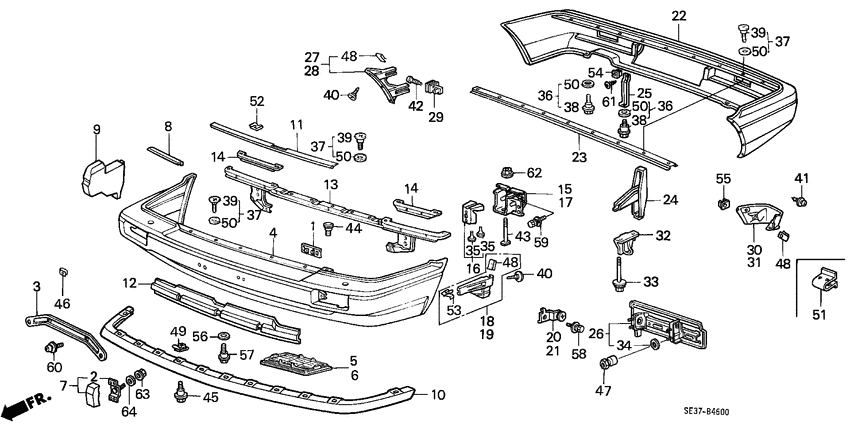

Bumper Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62521-SB2-000
Nut
|
62521-SB2-000 |
— | ||
|
2
|
2
62572-SA5-860
Bracket
|
62572-SA5-860 |
— | ||
|
3
|
3
62591-SB4-760
Bracket
|
62591-SB4-760 |
— | ||
|
4
|
4
71101-SE3-W00
Face
|
71101-SE3-W00 |
— | ||
|
4
|
4
71101-SE3-W10
Face
|
71101-SE3-W10 |
— | ||
|
5
|
5
71102-SE0-000
Cover
|
71102-SE0-000 |
— | ||
|
6
|
6
71103-SE0-000
Cover
|
71103-SE0-000 |
— | ||
|
7
|
7
71105-SE3-W00
Guard
|
71105-SE3-W00 |
— | ||
|
11
|
11
71111-SE0-000
Cover
|
71111-SE0-000 |
— | ||
|
13
|
13
71140-SE3-G10
Beam comp
|
71140-SE3-G10 |
— | ||
|
15
|
15
71151-SE3-G10
Stay comp
|
71151-SE3-G10 |
— | ||
|
16
|
16
71152-SE0-000
Bracket
|
71152-SE0-000 |
— | ||
|
17
|
17
71161-SE3-G10
Stay comp
|
71161-SE3-G10 |
— | ||
|
18
|
18
71191-SE0-000
Clip
|
71191-SE0-000 |
— | ||
|
19
|
19
71192-SE0-000
Clip
|
71192-SE0-000 |
— | ||
|
20
|
20
71193-SE0-000
Bracket
|
71193-SE0-000 |
— | ||
|
21
|
21
71194-SE0-000
Bracket
|
71194-SE0-000 |
— | ||
|
23
|
23
71541-SE3-000 BeamRR. BUMPER UPPER |
71541-SE3-000 |
US $110.72 |
||
|
24
|
24
71550-SE3-000
Stay comp
|
71550-SE3-000 |
— | ||
|
25
|
25
71554-SE3-000
Bracket
|
71554-SE3-000 |
— | ||
|
27
|
27
71591-SE3-003
Slide
|
71591-SE3-003 |
— | ||
|
28
|
28
71592-SE3-003
Slide
|
71592-SE3-003 |
— | ||
|
29
|
29
71595-SE0-003 ClipBUMPER CORNER |
71595-SE0-003 |
US $2.80 |
||
|
30
|
30
74553-SE0-000
Protector
|
74553-SE0-000 |
— | ||
|
31
|
31
74558-SE0-000
Protector
|
74558-SE0-000 |
— | ||
|
32
|
32
74657-SE0-000 HookTIE DOWN |
74657-SE0-000 |
US $22.91 |
||
|
33
|
33
74660-SE0-003
Bolt assy
|
74660-SE0-003 |
— | ||
|
33
|
33
74663-SE3-A00
Bolt assy
|
74663-SE3-A00 |
— | ||
|
35
|
35
83115-634-620
Plug
|
83115-634-620 |
— | ||
|
36
|
36
90101-SE0-000 Bolt assy. bBUMPER |
90101-SE0-000 |
US $3.36 |
||
|
37
|
37
90102-SE0-000
Bolt assy. c
|
90102-SE0-000 |
— | ||
| replacement | |||||
|
37
|
37
90102-SE0-010 Bolt assy. cBUMPER |
90102-SE0-010 |
US $6.35 |
||
|
38
|
38
90109-SE0-000 Bolt bBUMPER |
90109-SE0-000 |
US $2.80 |
||
|
39
|
39
90110-SE0-000 Bolt cBUMPER |
90110-SE0-000 |
US $2.31 |
||
|
40
|
40
90113-SE0-000
Screw
|
90113-SE0-000 |
— | ||
| replacement | |||||
|
40
|
40
90105-SF1-000 ScrewCORNER SLIDE TAPPING |
90105-SF1-000 |
US $2.60 |
||
|
41
|
41
90114-SE0-000 ScrewTAPPING, 5X20 |
90114-SE0-000 |
from US $0.50 |
||
|
42
|
42
90115-SE0-000
Screw
|
90115-SE0-000 |
— | ||
|
43
|
43
90125-SE0-000
Bolt
|
90125-SE0-000 |
— | ||
|
44
|
44
90129-SE3-003
Bolt
|
90129-SE3-003 |
— | ||
|
46
|
46
90303-SA5-003 NutFR. COMBINATION LIGHT |
90303-SA5-003 |
from US $2.22 |
||
|
48
|
48
90308-SB2-013 NutSUSPENSION, 5MM |
90308-SB2-013 |
from US $3.11 |
||
|
50
|
50
90540-SA7-000 WasherBUMPER |
90540-SA7-000 |
from US $1.47 |
||
|
51
|
51
90652-SE3-G00
Clip
|
90652-SE3-G00 |
— | ||
|
52
|
52
90653-SE0-000
Clip
|
90653-SE0-000 |
— | ||
|
53
|
53
90656-SE0-000
Clip
|
90656-SE0-000 |
— | ||
|
54
|
54
90662-196-000 GrommetSCREW, 4MM |
90662-196-000 |
from US $1.78 |
||
|
55
|
55
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
56
|
56
90772-SB2-980
Washer
|
90772-SB2-980 |
— | ||
|
57
|
57
90774-SB2-000 Bolt-washer6X16 (SILVER) |
90774-SB2-000 |
US $2.17 |
||
|
58
|
58
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
58
|
58
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
59
|
59
93495-080-200-8 Bolt-washer8X20 |
93495-080-200-8 |
US $0.74 |
||
|
60
|
60
93893-060-120-8 Screw-washer6X12 |
93893-060-120-8 |
from US $0.59 |
||
|
61
|
61
93903-444G0 ScrewTAPPING, 4X16 |
93903-444G0 |
US $0.74 |
||
|
62
|
62
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
63
|
63
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
64
|
64
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
