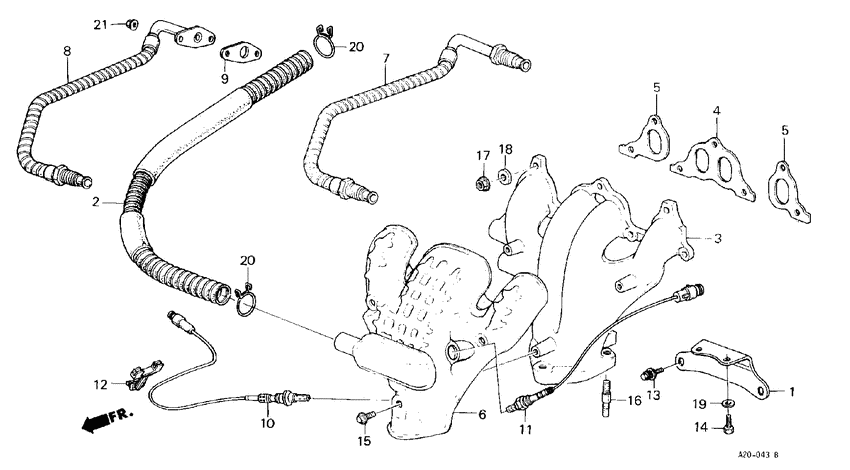

Exhaust manifold (1) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11940-PD2-010
Stay
|
11940-PD2-010 |
— | ||
|
2
|
2
17302-PH1-003
Pipe
|
17302-PH1-003 |
— | ||
|
3
|
3
18100-PH1-600 ManifoldEX. |
18100-PH1-600 |
US $288 |
||
|
4
|
4
18115-PD2-000
Gasket a
|
18115-PD2-000 |
— | ||
|
5
|
5
18116-PD2-000
Gasket b
|
18116-PD2-000 |
— | ||
|
6
|
6
18120-PH1-611
Cover
|
18120-PH1-611 |
— | ||
|
13
|
13
90001-PD2-003
Bolt-washer
|
90001-PD2-003 |
— | ||
|
14
|
14
90010-657-010
Bolt
|
90010-657-010 |
— | ||
|
15
|
15
90022-PE0-000 BoltFLANGE, 8X10 |
90022-PE0-000 |
US $1.96 |
||
|
16
|
16
90065-PC1-300 BoltSTUD, 10X34.5 |
90065-PC1-300 |
US $9.77 |
||
|
17
|
17
90217-657-000 Nut, SPECIAL, 8MM |
90217-657-000 |
from US $1.68 |
||
|
18
|
18
90402-PD6-000
Washer
|
90402-PD6-000 |
— | ||
|
19
|
19
90451-657-000
Washer
|
90451-657-000 |
— | ||
|
20
|
20
90653-689-000
Circlip
|
90653-689-000 |
— |
