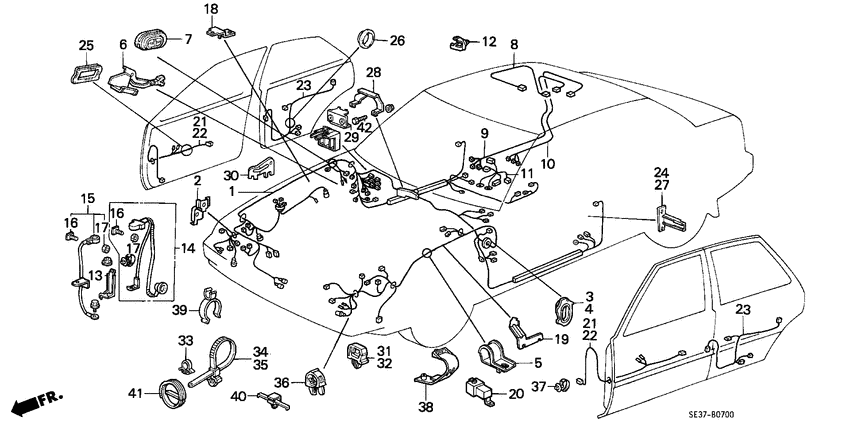

Wire harness (1) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A16A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX 1600
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SE3-W02
Harness
|
32100-SE3-W02 |
— | ||
|
2
|
2
32103-SE3-000
Stay
|
32103-SE3-000 |
— | ||
|
3
|
3
32104-SE3-000
Protector
|
32104-SE3-000 |
— | ||
|
4
|
4
32105-SE3-000
Protector
|
32105-SE3-000 |
— | ||
|
5
|
5
32108-SE0-000
Clamp
|
32108-SE0-000 |
— | ||
|
6
|
6
32123-SE0-A01
Bracket
|
32123-SE0-A01 |
— | ||
|
7
|
7
32129-SE3-000
Protector
|
32129-SE3-000 |
— | ||
|
10
|
10
32159-SE3-G00
Cord b
|
32159-SE3-G00 |
— | ||
|
13
|
13
32401-SE0-000
Holder
|
32401-SE0-000 |
— | ||
|
14
|
14
32410-SE0-E07
Cable assy
|
32410-SE0-E07 |
— | ||
|
14
|
14
32410-SE0-E08
Cable assy
|
32410-SE0-E08 |
— | ||
|
15
|
15
32600-SE0-A03
Cable assy
|
32600-SE0-A03 |
— | ||
|
15
|
15
32600-SE0-A05 Cable assyEARTH (YAZAKI) |
32600-SE0-A05 |
US $30.72 |
||
|
15
|
15
32600-SE0-A04 Cable assyEARTH (FURUKAWA) |
32600-SE0-A04 |
US $30.72 |
||
|
16
|
16
32601-SA5-003 BoltBATTERY TERMINAL (SUMITOMO) |
32601-SA5-003 |
from US $3.50 |
||
|
16
|
16
32601-SA5-004 BoltBATTERY TERMINAL (FURUKAWA) |
32601-SA5-004 |
US $3.43 |
||
|
17
|
17
32602-SA5-004 NutBATTERY TERMINAL (FURUKAWA) |
32602-SA5-004 |
US $2.24 |
||
|
17
|
17
32602-SA5-003 NutBATTERY TERMINAL (SUMITOMO) |
32602-SA5-003 |
from US $2.24 |
||
|
20
|
20
32725-SE0-G00
Bracket
|
32725-SE0-G00 |
— | ||
|
21
|
21
32751-SE3-A01
Harness
|
32751-SE3-A01 |
— | ||
|
22
|
22
32752-SE3-A01
Harness
|
32752-SE3-A01 |
— | ||
|
28
|
28
32802-SE0-000
Bracket
|
32802-SE0-000 |
— | ||
|
29
|
29
32803-SE0-000
Bracket b
|
32803-SE0-000 |
— | ||
|
30
|
30
32804-SE0-000
Bracket
|
32804-SE0-000 |
— | ||
|
32
|
32
90651-SB2-003 ClipWIRE HARNESS, 13MM (GRAY) |
90651-SB2-003 |
from US $1.61 |
||
|
33
|
33
90654-SA4-003 ClipWIRE HARNESS, 6MM (WHITE) |
90654-SA4-003 |
from US $0.34 |
||
|
34
|
34
90672-SA0-003 StrapCABLE, 118MM(BLACK) |
90672-SA0-003 |
from US $3.26 |
||
|
35
|
35
90676-SA8-003 BandWIRE HARNESS, 150MM (BLUE) |
90676-SA8-003 |
from US $2.24 |
||
|
37
|
37
91550-SE0-003 ClipWIRE HARNESS (GRAY) |
91550-SE0-003 |
from US $3.26 |
||
|
38
|
38
91550-SE3-000
Clip
|
91550-SE3-000 |
— | ||
|
39
|
39
91554-SE0-003
Clamp
|
91554-SE0-003 |
— | ||
|
40
|
40
91558-SE0-003
Clip
|
91558-SE0-003 |
— | ||
|
41
|
41
91559-SE0-003 ClipWIRE HARNESS (23.2MM) |
91559-SE0-003 |
US $3.15 |
||
|
42
|
42
95900-060-121-2 BoltFLANGE, 6X12 |
95900-060-121-2 |
US $0.74 |
