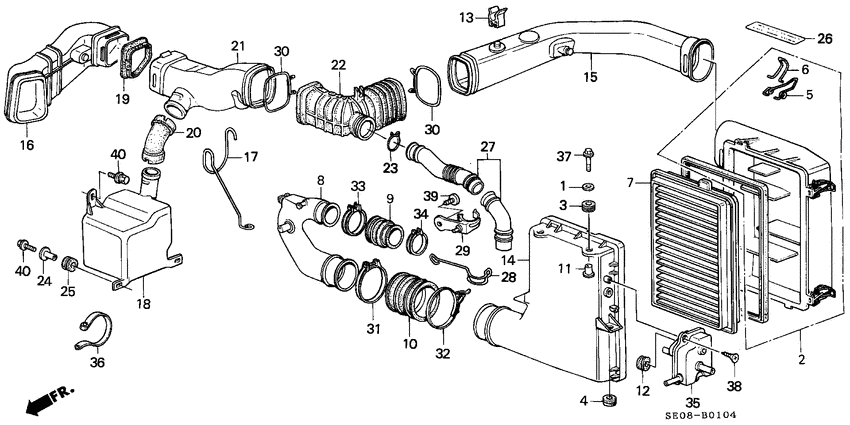

Air cleaner (PGM-FI) Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0SI
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17208-PC6-000
Washer
|
17208-PC6-000 |
— | ||
|
2
|
2
17210-PH3-010
Cover assy.
0C200001 - |
17210-PH3-010 |
— | ||
|
3
|
3
17213-PH3-000
Rubber a
|
17213-PH3-000 |
— | ||
|
4
|
4
17214-PH3-000
Rubber b
|
17214-PH3-000 |
— | ||
|
5
|
5
17216-671-000
Clip A
|
17216-671-000 |
— | ||
|
6
|
6
17217-PH3-000
Clip b
|
17217-PH3-000 |
— | ||
|
7
|
7
17220-PH3-000 Element assy.AIR CLEANER (TOYO) |
17220-PH3-000 |
US $33.92 |
||
|
8
|
8
17225-PJ0-600
Tube comp
|
17225-PJ0-600 |
— | ||
|
9
|
9
17226-PH3-000
Tube a
|
17226-PH3-000 |
— | ||
|
10
|
10
17227-PH3-000
Tube b
|
17227-PH3-000 |
— | ||
|
11
|
11
17233-PH3-000
Collar
|
17233-PH3-000 |
— | ||
|
12
|
12
17234-PH3-000
Grommet
|
17234-PH3-000 |
— | ||
|
13
|
13
17237-PH3-003
Clamp
|
17237-PH3-003 |
— | ||
|
14
|
14
17241-PH3-000
Case comp.
|
17241-PH3-000 |
— | ||
|
15
|
15
17242-PH3-000
Tube comp
|
17242-PH3-000 |
— | ||
|
16
|
16
17243-PH2-000 Duct assyAIR INTAKE |
17243-PH2-000 |
US $34.43 |
||
|
17
|
17
17244-PH3-010
Stay
0C200001 - 0C200369 |
17244-PH3-010 |
— | ||
|
17
|
17
17244-PH3-J00
Stay
0C200370 - |
17244-PH3-J00 |
— | ||
|
18
|
18
17246-PH3-000
Chamber
|
17246-PH3-000 |
— | ||
|
19
|
19
17247-PH2-000
Seal
|
17247-PH2-000 |
— | ||
|
20
|
20
17247-PJ0-660
Tube
|
17247-PJ0-660 |
— | ||
|
21
|
21
17248-PH3-010
Tube b
0C200001 - 0C200369 |
17248-PH3-010 |
— | ||
|
21
|
21
17248-PH3-J00
Tube b
0C200370 - |
17248-PH3-J00 |
— | ||
|
22
|
22
17249-PH3-J00
Tube
0C200370 - |
17249-PH3-J00 |
— | ||
|
22
|
22
17249-PH3-010
Tube
0C200001 - 0C200369 |
17249-PH3-010 |
— | ||
|
23
|
23
17254-PD6-010 ClipCONNECTING TUBE |
17254-PD6-010 |
US $3.78 |
||
|
24
|
24
17255-PD6-000 CollarRESONATOR |
17255-PD6-000 |
US $2.10 |
||
|
25
|
25
17256-PD6-000 RubberRESONATOR MOUNTING |
17256-PD6-000 |
US $2.59 |
||
|
26
|
26
17273-PH1-640
Plate
0C200001 - |
17273-PH1-640 |
— | ||
|
27
|
27
17281-PH3-010
Tube
00000000 - 0C300000 |
17281-PH3-010 |
— | ||
|
29
|
29
17282-PH3-000
Clamp a
00000000 - 0C300000 |
17282-PH3-000 |
— | ||
|
30
|
30
17284-PH3-000
Clip
|
17284-PH3-000 |
— | ||
|
31
|
31
17312-PH3-003
Clamp
|
17312-PH3-003 |
— | ||
|
32
|
32
17314-PH3-003
Clamp
|
17314-PH3-003 |
— | ||
|
33
|
33
17315-PH3-003 ClampAIR FLOW TUBE (74) |
17315-PH3-003 |
US $4.34 |
||
|
34
|
34
17316-PH3-003 ClampAIR FLOW TUBE (70) |
17316-PH3-003 |
US $4.06 |
||
|
35
|
35
36177-PH3-000
Chamber comp
|
36177-PH3-000 |
— | ||
|
37
|
37
90216-PH3-000
Bolt
|
90216-PH3-000 |
— | ||
|
38
|
38
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
||
|
39
|
39
93904-26280 ScrewTAPPING, 6X16 00000000 - 0C300000 |
93904-26280 |
US $0.44 |
||
|
40
|
40
95700-060-200-8
Bolt
0C300001 - |
95700-060-200-8 |
— | ||
| replacement | |||||
|
40
|
40
95701-060-200-8 BoltFLANGE, 6X20 0C300001 - |
95701-060-200-8 |
from US $0.52 |
||
|
40
|
40
95700-060-160-8 BoltFLANGE, 6X16 00000000 - 0C300000 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
40
|
40
95701-060-160-8 BoltFLANGE, 6X16 00000000 - 0C300000 |
95701-060-160-8 |
from US $0.52 |
||
