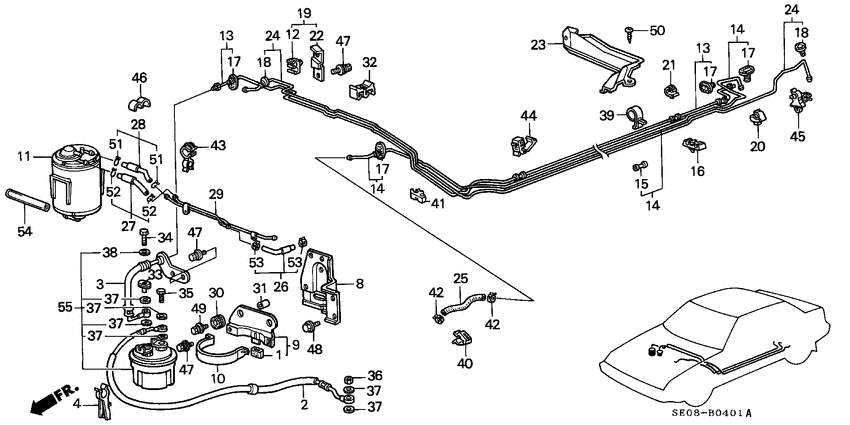

Fuel pipe (PGM-FI) Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0SI
- area code
- KQ
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16712-SD7-930
Cushion
|
16712-SD7-930 |
— | ||
|
2
|
2
16720-PH3-014
Hose comp. b
0C200001 - |
16720-PH3-014 |
— | ||
|
3
|
3
16721-SE0-931
Hose
00000000 - 0C300000 |
16721-SE0-931 |
— | ||
|
4
|
4
16724-PH3-000
Clamp a
|
16724-PH3-000 |
— | ||
|
8
|
8
16916-SE0-930
Bracket
|
16916-SE0-930 |
— | ||
|
9
|
9
16918-SE0-930
Stay
|
16918-SE0-930 |
— | ||
|
10
|
10
16919-SB2-930
Band
00000000 - 0C300000 |
16919-SB2-930 |
— | ||
|
11
|
11
17300-SE0-A40 Canister assy0C203495 - 0C300000 |
17300-SE0-A40 |
US $166.40 |
||
|
11
|
11
17300-SF1-A31
Canister assy
0C200001 - 0C203494 |
17300-SF1-A31 |
— | ||
|
13
|
13
17700-SE0-010
Pipe comp
00000000 - 0C300000 |
17700-SE0-010 |
— | ||
|
14
|
14
17700-SE0-930
Pipe comp
00000000 - 0C300000 |
17700-SE0-930 |
— | ||
|
17
|
17
17710-SE0-931
Grommet
|
17710-SE0-931 |
— | ||
|
18
|
18
17712-SA0-000 GrommetFUEL PIPE 00000000 - 0C300000 |
17712-SA0-000 |
US $8.14 |
||
|
19
|
19
17712-SE0-010
Clip assy.
0C200001 - |
17712-SE0-010 |
— | ||
|
20
|
20
91598-SE0-003 ClampFUEL VENT PIPE 0C200001 - |
91598-SE0-003 |
US $1.89 |
||
|
21
|
21
17713-SE0-003 ClampFUEL PIPE |
17713-SE0-003 |
US $2.03 |
||
|
22
|
22
17714-SE0-010
Bracket
0C200001 - |
17714-SE0-010 |
— | ||
|
23
|
23
17715-SE0-000
Protector
|
17715-SE0-000 |
— | ||
|
24
|
24
17720-SE3-020 Pipe compVENT 0C200001 - 0C330518 |
17720-SE3-020 |
US $47.10 |
||
|
25
|
25
17723-SE0-Q30
Hose
0C200001 - |
17723-SE0-Q30 |
— | ||
|
26
|
26
17725-SE0-Q30
Hose assy
|
17725-SE0-Q30 |
— | ||
|
27
|
27
17727-SE0-Q30
Tube assy
|
17727-SE0-Q30 |
— | ||
|
28
|
28
17728-SE0-Q31
Tube assy
0C200001 - |
17728-SE0-Q31 |
— | ||
|
29
|
29
17730-SE0-Q31
Pipe
0C200001 - |
17730-SE0-Q31 |
— | ||
|
30
|
30
38608-692-000 RubberMOUNTING |
38608-692-000 |
US $3.29 |
||
|
31
|
31
38609-692-000 CollarDISTANCE |
38609-692-000 |
from US $2.66 |
||
|
32
|
32
46392-SB2-014 Clip bBRAKE PIPE |
46392-SB2-014 |
US $2.80 |
||
|
33
|
33
90008-PD6-000
Bolt
|
90008-PD6-000 |
— | ||
|
34
|
34
90009-PE2-010
Bolt
|
90009-PE2-010 |
— | ||
| replacement | |||||
|
34
|
34
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
35
|
35
90020-PD6-000 BoltSEALING, 12MM 00000000 - 0C300000 |
90020-PD6-000 |
from US $7.99 |
||
|
36
|
36
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2.15 |
||
|
37
|
37
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.59 |
||
|
38
|
38
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
39
|
39
90665-SB2-931
Clamp
|
90665-SB2-931 |
— | ||
|
40
|
40
90684-SE0-003
Clip
|
90684-SE0-003 |
— | ||
|
42
|
42
91406-SA7-931
Clamp
|
91406-SA7-931 |
— | ||
| replacement | |||||
|
42
|
42
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
43
|
43
91594-SE0-931
Clip
0C200001 - 0C300000 |
91594-SE0-931 |
— | ||
|
44
|
44
91591-SH3-931
Clip
0C200001 - |
91591-SH3-931 |
— | ||
|
45
|
45
91593-SE0-013
Clip
0C200001 - |
91593-SE0-013 |
— | ||
|
46
|
46
91599-SE0-A31
Clip
00000000 - 0C300000 |
91599-SE0-A31 |
— | ||
|
47
|
47
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
US $0.59 |
||
| replacement | |||||
|
47
|
47
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
48
|
48
93495-060-160-8
Bolt-washer
|
93495-060-160-8 |
— | ||
| replacement | |||||
|
48
|
48
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
49
|
49
93495-060-250-8 Bolt-washer6X25 |
93495-060-250-8 |
US $0.74 |
||
|
50
|
50
93903-26020 ScrewTAPPING, 6X10 |
93903-26020 |
US $0.44 |
||
|
51
|
51
95002-02084 ClipTUBE (B8) |
95002-02084 |
US $0.44 |
||
|
52
|
52
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
53
|
53
95002-408-000-4 ClampTUBE(D8) |
95002-408-000-4 |
from US $0.74 |
||
|
54
|
54
95003-400-096-0 TubeVINYL, 12X16X90 (95003-40001-60M) |
95003-400-096-0 |
US $1.04 |
||
|
55
|
55
16010-SE0-G32
Strainer set
0C100000 - |
16010-SE0-G32 |
— | ||
