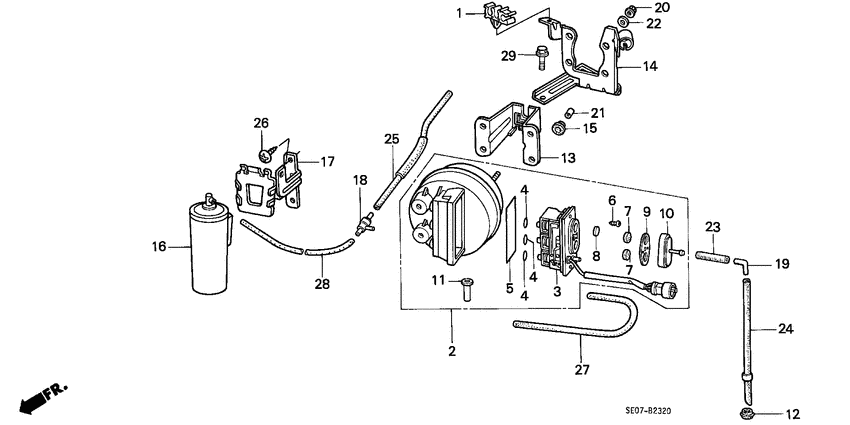

Auto cruise (LH) Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- abs
- +
- power steering
- +
- area code
- KX
- left-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36061-PB1-000
Clamp b
|
36061-PB1-000 |
— | ||
|
2
|
2
36520-PH4-662
Actuator assy
|
36520-PH4-662 |
— | ||
|
3
|
3
36521-PH4-661
Valve comp
|
36521-PH4-661 |
— | ||
|
4
|
4
36522-PC1-004
O-ring
|
36522-PC1-004 |
— | ||
|
5
|
5
36523-PC1-004 PackingHITACHI |
36523-PC1-004 |
US $5.32 |
||
|
6
|
6
36524-PC1-004
Screw
|
36524-PC1-004 |
— | ||
|
7
|
7
36525-PC1-004
Filter
|
36525-PC1-004 |
— | ||
|
8
|
8
36526-PC1-004
Paper
|
36526-PC1-004 |
— | ||
|
9
|
9
36527-PC1-004 PackingFILTER (HITACHI) |
36527-PC1-004 |
US $3.57 |
||
|
10
|
10
36528-PC1-004
Cover
|
36528-PC1-004 |
— | ||
|
11
|
11
36529-PC1-014
Drain
|
36529-PC1-014 |
— | ||
|
12
|
12
36600-PD2-000
Grommet
|
36600-PD2-000 |
— | ||
|
13
|
13
36612-PC6-000
Support comp
|
36612-PC6-000 |
— | ||
|
14
|
14
36613-PH4-660
Stay
|
36613-PH4-660 |
— | ||
|
15
|
15
36619-PC6-004 RubberMOUNTING |
36619-PC6-004 |
US $2.52 |
||
|
16
|
16
36625-PH4-661
Tank comp.
|
36625-PH4-661 |
— | ||
|
17
|
17
36626-PJ0-660
Stay
|
36626-PJ0-660 |
— | ||
|
18
|
18
36627-PC1-004
Valve
|
36627-PC1-004 |
— | ||
| replacement | |||||
|
18
|
18
36627-PC1-014
Valve
|
36627-PC1-014 |
— | ||
|
19
|
19
36645-PC1-000
Joint
|
36645-PC1-000 |
— | ||
|
20
|
20
90301-PC1-000 NutHEX., 6MM |
90301-PC1-000 |
US $2.87 |
||
|
21
|
21
90526-PC1-000 CollarDISTANCE |
90526-PC1-000 |
US $2.24 |
||
|
22
|
22
90528-PC1-000
Washer
|
90528-PC1-000 |
— | ||
|
23
|
23
91426-PB3-000
Tube
|
91426-PB3-000 |
— | ||
|
24
|
24
91426-PH4-660
Tube
|
91426-PH4-660 |
— | ||
|
25
|
25
91441-PH4-740
Tube comp
|
91441-PH4-740 |
— | ||
|
26
|
26
93902-25220 ScrewTAPPING, 5X12 00000000 - 0C037390 |
93902-25220 |
US $0.37 |
||
|
26
|
26
93901-36120 ScrewTAPPING, 6X12 0C037391 - |
93901-36120 |
US $0.44 |
||
|
27
|
27
95005-451-301-0 Tube4.5X130 (95005-45001-10M) |
95005-451-301-0 |
US $2.66 |
||
|
28
|
28
95005-452-251-0 Tube4.5X225 (95005-45001-10M) |
95005-452-251-0 |
US $4 |
||
|
29
|
29
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
29
|
29
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
