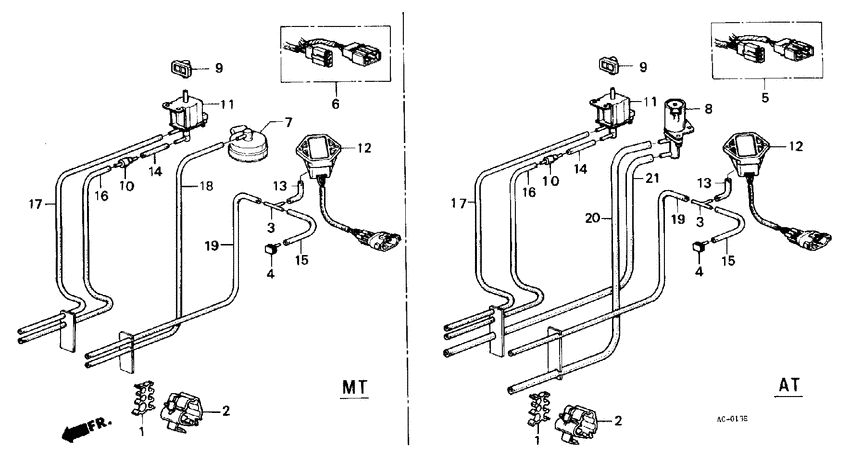

Control box tubing (X; PGM-FI) Diagram Honda ACCORD
- Year
- 1986
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX-2.0I
- power steering
- +
- area code
- KX
- left-hand drive
- +
- sunroof
- +
- auto cruise
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17433-PJ0-741
Clamp a
|
17433-PJ0-741 |
— | ||
|
2
|
2
17434-PJ0-741
Clamp b
|
17434-PJ0-741 |
— | ||
|
3
|
3
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
4
|
4
36034-PD1-000
Plug
|
36034-PD1-000 |
— | ||
| replacement | |||||
|
4
|
4
36034-PM6-901 PlugSEALING |
36034-PM6-901 |
from US $1.93 |
||
|
6
|
6
36041-PJ0-751
Cord assy
|
36041-PJ0-751 |
— | ||
|
7
|
7
36100-PD1-004
Filter assy
|
36100-PD1-004 |
— | ||
|
9
|
9
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
10
|
10
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
10
|
10
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
11
|
11
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
12
|
12
37830-PH3-003 Sensor assy. 1MAP |
37830-PH3-003 |
US $308.48 |
||
|
13
|
13
95005-350-401-0
Tube
00000000 - 0C000539 |
95005-350-401-0 |
— | ||
|
13
|
13
36013-PE0-661 HolderSOLENOID, 3.5MM 0C000540 - |
36013-PE0-661 |
US $6.44 |
||
|
14
|
14
95005-350-351-0 Tube3.5X35(95005-35001-10M) 0C000540 - |
95005-350-351-0 |
US $0.89 |
||
|
14
|
14
95005-350-451-0 Tube3.5X45 (95005-35001-10M) 00000000 - 0C000539 |
95005-350-451-0 |
US $0.89 |
||
|
15
|
15
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
15
|
15
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
16
|
16
95005-355-001-C Tube3.5X500 (95005-35001-10M) 0C000540 - |
95005-355-001-C |
US $5.03 |
||
|
16
|
16
95005-354-701-C Tube3.5X470 (95005-35001-10M) 00000000 - 0C000539 |
95005-354-701-C |
US $5.03 |
||
|
17
|
17
95005-355-201-F Tube3.5X520 (95005-35001-10M) 00000000 - 0C000539 |
95005-355-201-F |
US $5.33 |
||
|
17
|
17
95005-355-401-F Tube3.5X540 (95005-35001-10M) 0C000540 - |
95005-355-401-F |
US $5.33 |
||
|
18
|
18
95005-355-301-6 Tube3.5X530 (95005-35001-10M) |
95005-355-301-6 |
US $5.33 |
||
|
19
|
19
95005-356-001-M Tube3.5X600 (95005-35001-10M) 00000000 - 0C000539 |
95005-356-001-M |
US $6.07 |
||
|
19
|
19
95005-355-701-M Tube3.5X570 (95005-35001-10M) 0C000540 - |
95005-355-701-M |
US $6.07 |
||
