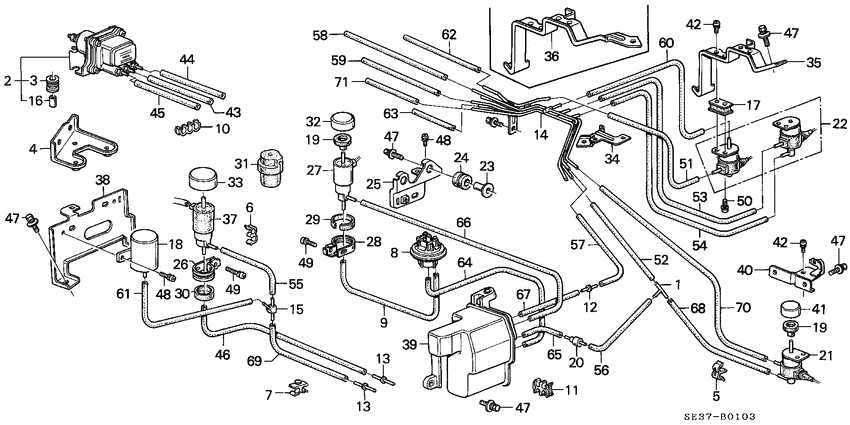

Install pipe/tubing Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- EX
- abs
- +
- power steering
- +
- area code
- KW
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
8
|
8
17290-PH4-661
Valve assy.
|
17290-PH4-661 |
— | ||
|
9
|
9
17291-PH4-660
Tube
|
17291-PH4-660 |
— | ||
|
11
|
11
17363-PD2-660
Clamp
|
17363-PD2-660 |
— | ||
|
12
|
12
17397-PH4-661
Joint
|
17397-PH4-661 |
— | ||
|
14
|
14
17450-PH4-660
Pipe assy. c
|
17450-PH4-660 |
— | ||
|
17
|
17
36085-PB1-004
Spacer
|
36085-PB1-004 |
— | ||
|
20
|
20
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
20
|
20
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
22
|
22
36165-PH4-661
Valve assy.
|
36165-PH4-661 |
— | ||
|
23
|
23
36174-PH4-660
Collar
|
36174-PH4-660 |
— | ||
|
24
|
24
36175-PH4-661
Rubber
|
36175-PH4-661 |
— | ||
|
25
|
25
36176-PH4-661
Stay comp
|
36176-PH4-661 |
— | ||
|
27
|
27
36190-PH4-661
Valve assy. b
|
36190-PH4-661 |
— | ||
|
28
|
28
36191-PD2-661
Clamp b
|
36191-PD2-661 |
— | ||
|
29
|
29
36192-PD2-661
Rubber
|
36192-PD2-661 |
— | ||
|
31
|
31
36193-PD2-661
Rubber
|
36193-PD2-661 |
— | ||
|
32
|
32
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
34
|
34
36195-PH4-660
Stay
|
36195-PH4-660 |
— | ||
|
35
|
35
36196-PH4-660
Stay
|
36196-PH4-660 |
— | ||
|
39
|
39
36351-PH4-661
Tank comp.
|
36351-PH4-661 |
— | ||
|
42
|
42
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
48
|
48
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
|
49
|
49
93891-050-160-8 Screw-washer5X16 |
93891-050-160-8 |
from US $0.44 |
||
|
50
|
50
93892-040-081-8 Screw-washer4X8 |
93892-040-081-8 |
US $0.44 |
||
| replacement | |||||
|
50
|
50
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
51
|
51
95005-350-501-H Tube3.5X50 (95005-35001-10M) |
95005-350-501-H |
US $0.89 |
||
|
52
|
52
95005-350-501-W Tube3.5X50 (95005-35001-10M) |
95005-350-501-W |
US $0.89 |
||
|
53
|
53
95005-350-551-X Tube3.5X55 (95005-35001-10M) |
95005-350-551-X |
US $1.18 |
||
|
54
|
54
95005-350-601-W Tube3.5X60 (95005-35001-10M) |
95005-350-601-W |
US $1.18 |
||
|
56
|
56
95005-350-801-W Tube3.5X80 (95005-35001-10M) |
95005-350-801-W |
US $1.18 |
||
|
57
|
57
95005-350-851-Y Tube3.5X85 (95005-35001-10M) |
95005-350-851-Y |
US $1.18 |
||
|
58
|
58
95005-351-001-X Tube3.5X100 (95005-35001-10M) |
95005-351-001-X |
US $1.18 |
||
|
59
|
59
95005-351-051-W Tube3.5X105 (95005-35001-10M) |
95005-351-051-W |
US $1.55 |
||
|
60
|
60
95005-351-201-Y Tube3.5X120 (95005-35001-10M) |
95005-351-201-Y |
US $1.55 |
||
|
62
|
62
95005-351-601-H Tube3.5X160 (95005-35001-10M) |
95005-351-601-H |
US $2.37 |
||
|
63
|
63
95005-351-751-Y Tube3.5X175 (95005-35001-10M) |
95005-351-751-Y |
US $2.37 |
||
|
64
|
64
95005-352-601-Z Tube3.5X260 (95005-35001-10M) |
95005-352-601-Z |
US $3.26 |
||
|
65
|
65
95005-352-651-W Tube3.5X265 (95005-35001-10M) |
95005-352-651-W |
US $3.26 |
||
|
66
|
66
95005-352-701-W Tube3.5X270 (95005-35001-10M) |
95005-352-701-W |
US $3.26 |
||
|
67
|
67
95005-353-201-Y Tube3.5X320 (95005-35001-10M) |
95005-353-201-Y |
US $3.85 |
||
|
71
|
71
95005-451-051-0 Tube4.5X105 (95005-45001-10M) |
95005-451-051-0 |
US $2.66 |
||
