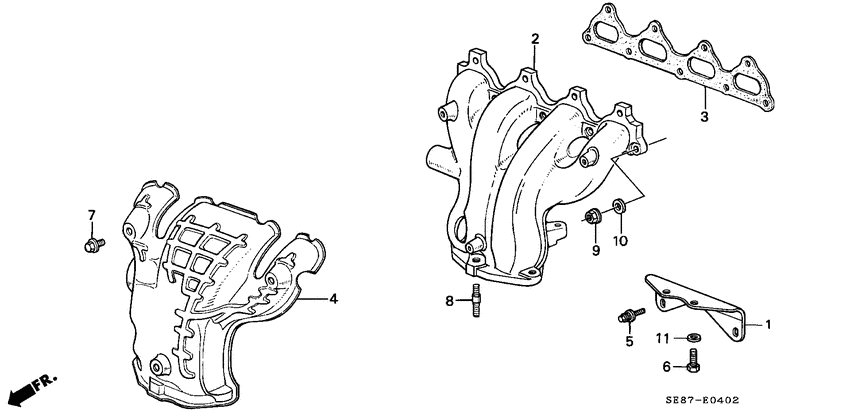

Exhaust manifold (3) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I-16
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11940-PH3-J00
Stay
|
11940-PH3-J00 |
— | ||
|
2
|
2
18100-PH3-600 ManifoldEX. |
18100-PH3-600 |
US $348.16 |
||
|
3
|
3
18115-PH3-000
Gasket
|
18115-PH3-000 |
— | ||
|
4
|
4
18120-PH3-740
Cover
|
18120-PH3-740 |
— | ||
|
5
|
5
90001-PH3-003
Bolt-washer
|
90001-PH3-003 |
— | ||
|
6
|
6
90010-657-010
Bolt
|
90010-657-010 |
— | ||
|
7
|
7
90022-PE0-000 BoltFLANGE, 8X10 |
90022-PE0-000 |
US $1.96 |
||
|
8
|
8
90065-PC6-300
Bolt
|
90065-PC6-300 |
— | ||
|
9
|
9
90217-657-000 Nut, SPECIAL, 8MM |
90217-657-000 |
from US $1.68 |
||
|
10
|
10
90402-PD6-000
Washer
|
90402-PD6-000 |
— | ||
|
11
|
11
90451-657-000
Washer
|
90451-657-000 |
— |
