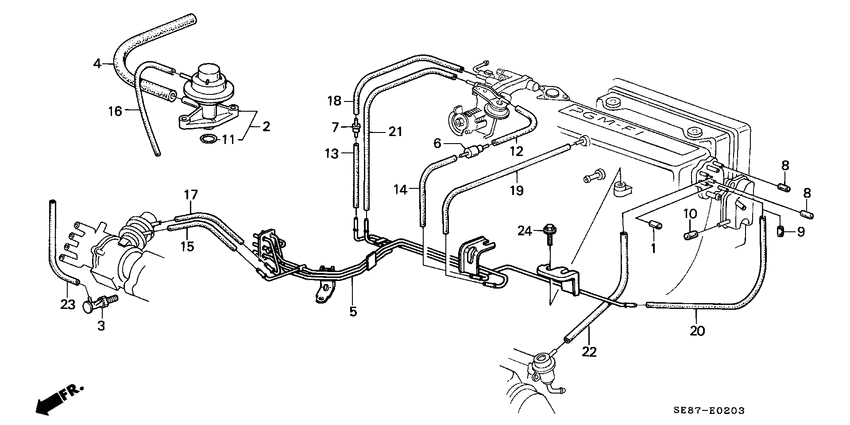

Install pipe/tubing (DOHC,PGM-FI) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I-16
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16216-676-690
Cap
|
16216-676-690 |
— | ||
|
2
|
2
17332-PH3-003
Valve assy.
|
17332-PH3-003 |
— | ||
|
4
|
4
17393-PH3-000
Tube
|
17393-PH3-000 |
— | ||
|
5
|
5
17430-PH3-620
Pipe assy.
|
17430-PH3-620 |
— | ||
|
6
|
6
36135-PH3-004 ValveDASHPOT CHECK |
36135-PH3-004 |
US $63.46 |
||
|
7
|
7
36136-PH3-000
Chamber
|
36136-PH3-000 |
— | ||
|
8
|
8
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $2.37 |
||
|
9
|
9
90634-PA5-910 CapSEALING, 5.5MM |
90634-PA5-910 |
US $1.68 |
||
|
10
|
10
90634-PJ0-600 CapSEALING, 6.5MM |
90634-PJ0-600 |
US $1.96 |
||
|
11
|
11
91307-PH3-003
O-ring
|
91307-PH3-003 |
— | ||
|
12
|
12
95005-350-351-6 Tube3.5X35 (95005-35001-10M) |
95005-350-351-6 |
US $0.89 |
||
|
13
|
13
95005-350-501-6 Tube3.5X50 (95005-35001-10M) |
95005-350-501-6 |
US $0.89 |
||
|
14
|
14
95005-350-701-6 Tube3.5X70 (95005-35001-10M) |
95005-350-701-6 |
US $1.18 |
||
|
15
|
15
95005-351-001-2 Tube3.5X100 (95005-35001-10M) |
95005-351-001-2 |
US $1.18 |
||
|
16
|
16
95005-351-001-E Tube3.5X100 (95005-35001-10M) |
95005-351-001-E |
US $1.18 |
||
|
17
|
17
95005-351-001-F Tube3.5X100 (95005-35001-10M) |
95005-351-001-F |
US $1.18 |
||
|
18
|
18
95005-351-001-6 Tube3.5X100 (95005-35001-10M) |
95005-351-001-6 |
US $1.18 |
||
|
19
|
19
95005-351-101-2 Tube3.5X110 (95005-35001-10M) |
95005-351-101-2 |
US $1.55 |
||
|
21
|
21
95005-351-301-M Tube3.5X130 (95005-35001-10M) |
95005-351-301-M |
US $1.55 |
||
|
22
|
22
95005-351-701-0
Tube
|
95005-351-701-0 |
— | ||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.32 |
