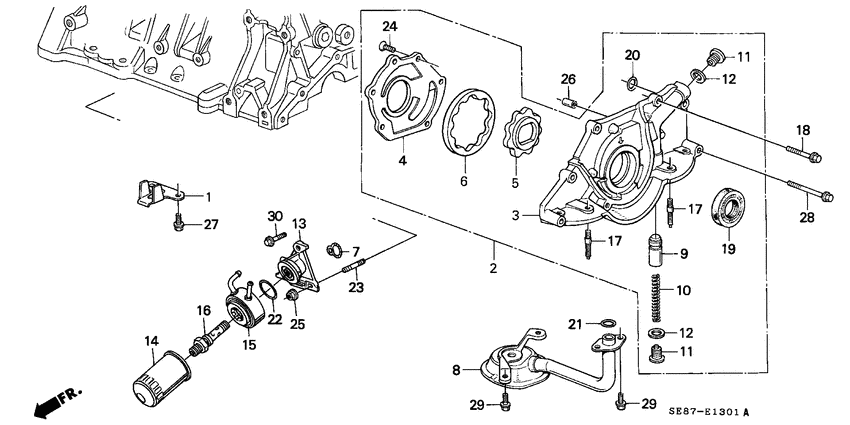

Oil pump (DOHC) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I-16
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11104-PH3-000
Separator
|
11104-PH3-000 |
— | ||
|
2
|
2
15100-PJ5-020
Pump assy.
|
15100-PJ5-020 |
— | ||
|
3
|
3
15111-PH3-020
Body
|
15111-PH3-020 |
— | ||
|
4
|
4
15112-PH3-020
Cover
|
15112-PH3-020 |
— | ||
|
5
|
5
15131-PH3-023
Rotor
|
15131-PH3-023 |
— | ||
|
6
|
6
15132-PH3-013
Rotor
|
15132-PH3-013 |
— | ||
|
7
|
7
15205-PH3-004
Gasket
|
15205-PH3-004 |
— | ||
|
7
|
7
15205-PH3-003
Gasket
|
15205-PH3-003 |
— | ||
|
8
|
8
15220-PH3-000
Strainer comp.
|
15220-PH3-000 |
— | ||
|
9
|
9
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
10
|
10
15232-PG6-000 SpringRELIEF VALVE |
15232-PG6-000 |
from US $2.65 |
||
|
11
|
11
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
12
|
12
15234-PC6-000 WasherSEALING, 18MM |
15234-PC6-000 |
US $9.67 |
||
|
13
|
13
15301-PH3-000
Base
|
15301-PH3-000 |
— | ||
|
14
|
14
15400-PH1-014
Cartridge
|
15400-PH1-014 |
— | ||
| replacement | |||||
|
14
|
14
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $17.95 |
||
|
14
|
14
15400-PH1-F02
Cartridge
|
15400-PH1-F02 |
— | ||
|
14
|
14
15400-PK1-003 CartridgeOIL FILTER (TOKYO ROKI) |
15400-PK1-003 |
US $16 |
||
|
15
|
15
15500-PH3-005
Cooler
|
15500-PH3-005 |
— | ||
|
15
|
15
15500-PH3-014
Cooler
|
15500-PH3-014 |
— | ||
|
16
|
16
15570-PH3-003
Bolt assy
|
15570-PH3-003 |
— | ||
|
17
|
17
90041-PA5-000 BoltSTUD, 6X28 |
90041-PA5-000 |
from US $2.52 |
||
|
18
|
18
90052-PK1-000 BoltFLANGE, 6X25 |
90052-PK1-000 |
US $2.49 |
||
|
19
|
19
91212-PJ5-013
Oil seal
|
91212-PJ5-013 |
— | ||
|
20
|
20
91307-PE0-010 O-ring25X2.4 |
91307-PE0-010 |
from US $3.03 |
||
|
21
|
21
91310-PH3-003 O-ring18X2.4 |
91310-PH3-003 |
from US $1.70 |
||
|
22
|
22
91316-PE7-730 O-ring62.4X3.1 |
91316-PE7-730 |
from US $5.03 |
||
|
23
|
23
92900-08028-1B BoltSTUD, 8X28 |
92900-08028-1B |
from US $0.74 |
||
|
24
|
24
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
25
|
25
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
27
|
27
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
27
|
27
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
28
|
28
95700-060-500-8 BoltFLANGE, 6X50 |
95700-060-500-8 |
from US $0.74 |
||
| replacement | |||||
|
28
|
28
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
30
|
30
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.74 |
||
