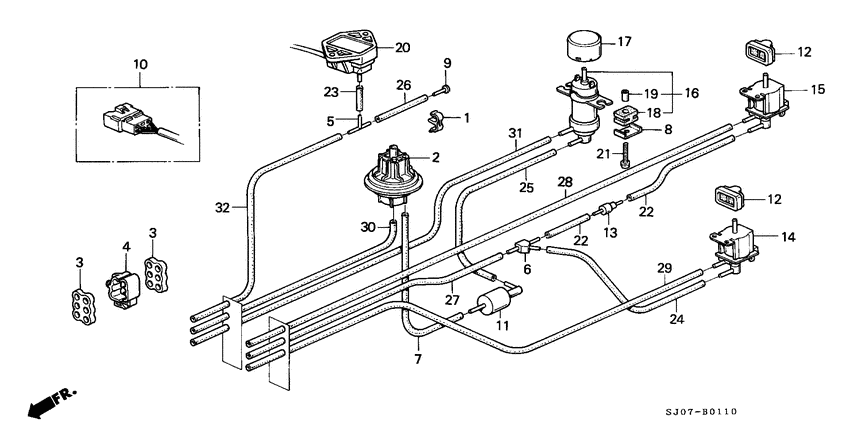

Control box tubing (2) Diagram Honda ACCORD
- Year
- 1988
- Model code
- ACCORD
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I-16
- abs
- +
- power steering
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
- power door lock
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
17290-PD6-661
Valve assy.
|
17290-PD6-661 |
— | ||
|
3
|
3
17433-PJ0-A01
Clamp
|
17433-PJ0-A01 |
— | ||
|
4
|
4
17437-PJ0-661
Clamp b
|
17437-PJ0-661 |
— | ||
|
5
|
5
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
6
|
6
36010-PE0-004 JointTHREE WAY |
36010-PE0-004 |
US $6.30 |
||
|
7
|
7
36013-PE0-004
Holder
|
36013-PE0-004 |
— | ||
|
8
|
8
36017-PG7-004
Washer
|
36017-PG7-004 |
— | ||
|
9
|
9
36034-PD1-000
Plug
|
36034-PD1-000 |
— | ||
| replacement | |||||
|
9
|
9
36034-PM6-901 PlugSEALING |
36034-PM6-901 |
from US $1.93 |
||
|
10
|
10
36041-PH3-X01
Cord assy
|
36041-PH3-X01 |
— | ||
|
11
|
11
36134-PH7-004
Chamber comp
|
36134-PH7-004 |
— | ||
|
12
|
12
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
13
|
13
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
13
|
13
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
14
|
14
36160-PH2-004
Valve assy.
|
36160-PH2-004 |
— | ||
|
15
|
15
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
16
|
16
36190-PH3-005
Valve assy. b
|
36190-PH3-005 |
— | ||
|
17
|
17
36194-PD2-661 Filter assyAIR |
36194-PD2-661 |
US $12.93 |
||
|
18
|
18
36195-PG7-005
Rubber
|
36195-PG7-005 |
— | ||
|
19
|
19
36199-PG7-005
Collar
|
36199-PG7-005 |
— | ||
|
20
|
20
37830-PH3-003 Sensor assy. 1MAP |
37830-PH3-003 |
US $308.48 |
||
|
21
|
21
93892-040-200-8 Screw-washer, 4X204X20 |
93892-040-200-8 |
US $0.44 |
||
|
22
|
22
95005-350-351-0 Tube3.5X35(95005-35001-10M) |
95005-350-351-0 |
US $0.89 |
||
|
23
|
23
95005-350-401-0
Tube
|
95005-350-401-0 |
— | ||
|
24
|
24
95005-350-551-0 Tube3.5X55(95005-35001-10M) |
95005-350-551-0 |
US $1.18 |
||
|
25
|
25
95005-350-701-0 Tube3.5X70 (95005-35001-10M) |
95005-350-701-0 |
US $1.18 |
||
|
26
|
26
95005-351-001-0 Tube3.5X100 (95005-35001-10M) |
95005-351-001-0 |
US $1.18 |
||
| replacement | |||||
|
26
|
26
95005-351-0010S Tube 35x100 |
95005-351-0010S |
US $1.18 |
||
|
27
|
27
95005-354-401-5 Tube3.5X440 (95005-35001-10M) |
95005-354-401-5 |
US $4.74 |
||
|
28
|
28
95005-355-351-F Tube3.5X535 (95005-35001-10M) |
95005-355-351-F |
US $5.33 |
||
|
29
|
29
95005-355-451-E Tube3.5X545 (95005-35001-10M) |
95005-355-451-E |
US $5.33 |
||
|
30
|
30
95005-355-601-Q Tube3.5X560 (95005-35001-10M) |
95005-355-601-Q |
US $6.07 |
||
|
31
|
31
95005-355-701-G Tube3.5X570 (95005-35001-10M) |
95005-355-701-G |
US $6.07 |
||
|
32
|
32
95005-355-851-M Tube3.5X585 (95005-35001-10M) |
95005-355-851-M |
US $6.07 |
||
