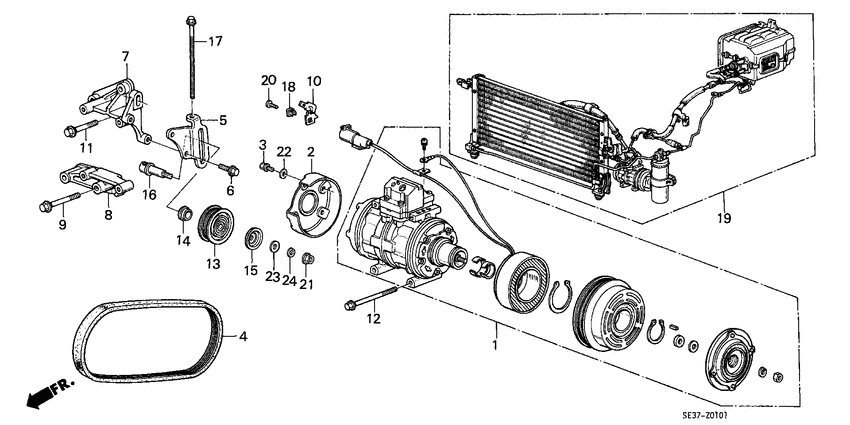

Air conditioner (DOHC; COMPRESSOR; PGM-FI; ND) Diagram Honda ACCORD
- Year
- 1987
- Model code
- ACCORD
- Sales region
- General
- Engine
- B20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 2.0I-16
- abs
- +
- power steering
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- auto cruise
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38800-PH3-003 Compressor assy10P15C) (DENSO |
38800-PH3-003 |
US $1,231.36 |
||
|
2
|
2
38885-PH3-013
Insulator
|
38885-PH3-013 |
— | ||
|
3
|
3
38886-PH1-602
Bolt-washer
|
38886-PH1-602 |
— | ||
|
4
|
4
38920-PH3-003 BeltCOMPRESSOR (DENSO) |
38920-PH3-003 |
US $28.16 |
||
|
5
|
5
38926-PH3-003
Stay
|
38926-PH3-003 |
— | ||
|
6
|
6
38927-PH3-003 BoltFLANGE, 8X20 (DENSO) |
38927-PH3-003 |
US $2.66 |
||
|
7
|
7
38930-PH3-003
Bracket a
|
38930-PH3-003 |
— | ||
|
8
|
8
38931-PH3-003
Bracket b
|
38931-PH3-003 |
— | ||
|
9
|
9
38932-PH3-003
Bolt
|
38932-PH3-003 |
— | ||
|
10
|
10
38933-PH2-000
Stay
|
38933-PH2-000 |
— | ||
|
11
|
11
38935-PH1-003 BoltFLANGE, 10X50 |
38935-PH1-003 |
US $3.71 |
||
|
12
|
12
38935-PH3-003
Bolt
|
38935-PH3-003 |
— | ||
|
13
|
13
38942-PH3-003
Pulley comp
|
38942-PH3-003 |
— | ||
|
14
|
14
38944-PH3-003
Collar
|
38944-PH3-003 |
— | ||
|
15
|
15
38945-PH3-003
Cover
|
38945-PH3-003 |
— | ||
|
16
|
16
38946-PH3-003
Shaft comp.
|
38946-PH3-003 |
— | ||
|
17
|
17
38948-PH3-003
Bolt
|
38948-PH3-003 |
— | ||
|
18
|
18
75521-611-000 GrommetSCREW, 6MM |
75521-611-000 |
US $3.71 |
||
|
19
|
19
80000-SE3-E20
Conditioner assy.
|
80000-SE3-E20 |
— | ||
|
20
|
20
93901-26020 ScrewTAPPING, 6X10 |
93901-26020 |
US $0.44 |
||
|
21
|
21
94002-100-800-S NutHEX., 10MM |
94002-100-800-S |
from US $0.52 |
||
|
22
|
22
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
23
|
23
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
24
|
24
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
