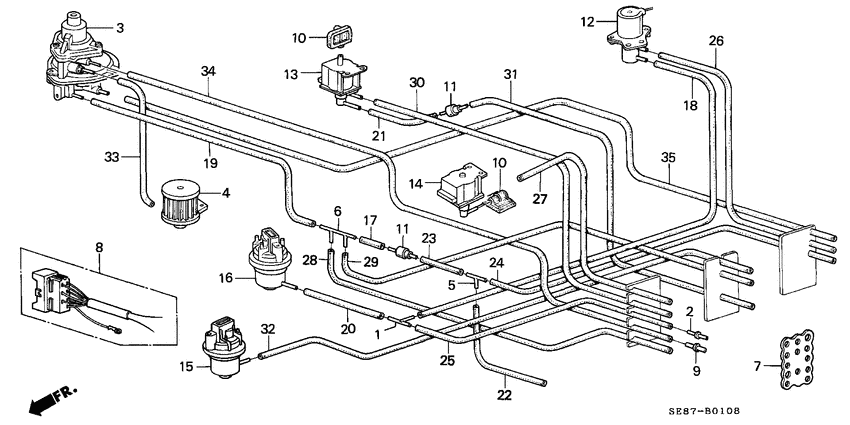

Control box tubing (1) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- abs
- +
- power steering
- +
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17321-PC7-660
Joint
|
17321-PC7-660 |
— | ||
|
2
|
2
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
3
|
3
18740-PD2-671
Valve assy.
|
18740-PD2-671 |
— | ||
|
4
|
4
18850-PH4-661
Filter assy
|
18850-PH4-661 |
— | ||
|
5
|
5
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
6
|
6
36010-PH4-661
Joint
|
36010-PH4-661 |
— | ||
|
7
|
7
36032-PH4-662
Clamp
|
36032-PH4-662 |
— | ||
|
8
|
8
36041-PH4-662
Cord assy
|
36041-PH4-662 |
— | ||
|
9
|
9
36057-PH4-660
Joint
|
36057-PH4-660 |
— | ||
|
10
|
10
36138-PE0-004
Filter assy
|
36138-PE0-004 |
— | ||
|
11
|
11
36145-PA6-661
Valve
|
36145-PA6-661 |
— | ||
| replacement | |||||
|
11
|
11
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
12
|
12
36155-PE0-661
Valve assy.
|
36155-PE0-661 |
— | ||
|
13
|
13
36161-PH2-004
Valve assy.
|
36161-PH2-004 |
— | ||
|
14
|
14
36166-PH2-004
Valve assy.
|
36166-PH2-004 |
— | ||
|
15
|
15
36183-PH2-004
Switch assy
|
36183-PH2-004 |
— | ||
|
16
|
16
36183-PH4-661
Switch assy
|
36183-PH4-661 |
— | ||
|
17
|
17
95005-350-351-0 Tube3.5X35(95005-35001-10M) |
95005-350-351-0 |
US $0.89 |
||
|
18
|
18
95005-350-501-0 Tube3.5X50(95005-35001-10M) |
95005-350-501-0 |
US $0.89 |
||
|
19
|
19
95005-350-601-0 Tube3.5X60(95005-35001-10M) |
95005-350-601-0 |
US $1.18 |
||
|
20
|
20
95005-350-901-0 Tube3.5X90(95005-35001-10M) |
95005-350-901-0 |
US $1.18 |
||
|
21
|
21
95005-350-901-Q Tube3.5X90 (95005-35001-10M) |
95005-350-901-Q |
US $1.18 |
||
|
22
|
22
95005-351-051-K Tube3.5X105 (95005-35001-10M) |
95005-351-051-K |
US $1.55 |
||
|
23
|
23
95005-351-601-K Tube3.5X160 (95005-35001-10M) |
95005-351-601-K |
US $2.37 |
||
|
24
|
24
95005-351-701-K Tube3.5X170 (95005-35001-10M) |
95005-351-701-K |
US $2.37 |
||
|
25
|
25
95005-351-901-2 Tube3.5X190 (95005-35001-10M) |
95005-351-901-2 |
US $2.37 |
||
|
26
|
26
95005-353-251-8 Tube3.5X325 (95005-35001-10M) |
95005-353-251-8 |
US $3.85 |
||
|
27
|
27
95005-353-401-S Tube3.5X340 (95005-35001-10M) |
95005-353-401-S |
US $3.85 |
||
|
28
|
28
95005-353-901-G Tube3.5X390 (95005-35001-10M) |
95005-353-901-G |
US $4.14 |
||
|
29
|
29
95005-353-951-3 Tube3.5X395 (95005-35001-10M) |
95005-353-951-3 |
US $4.14 |
||
|
30
|
30
95005-354-001-5 Tube3.5X400 (95005-35001-10M) |
95005-354-001-5 |
US $4.14 |
||
|
31
|
31
95005-354-201-Q Tube3.5X420 (95005-35001-10M) |
95005-354-201-Q |
US $4.74 |
||
|
32
|
32
95005-354-251-7 Tube3.5X425 (95005-35001-10M) |
95005-354-251-7 |
US $4.74 |
||
|
33
|
33
95005-450-351-0 Tube4.5X35(95005-45001-10M) |
95005-450-351-0 |
US $0.89 |
||
|
34
|
34
95005-453-401-A Tube4.5X340 (95005-45001-10M) |
95005-453-401-A |
US $5.18 |
||
|
35
|
35
95005-454-451-B Tube4.5X445 (95005-45001-10M) |
95005-454-451-B |
US $7.10 |
||
