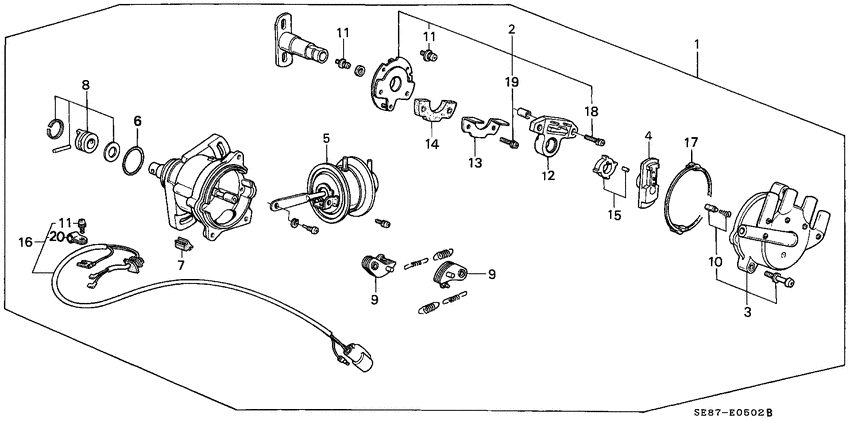

Distributor (HITACHI) Diagram Honda ACCORD
- Year
- 1989
- Model code
- ACCORD
- Sales region
- General
- Engine
- A20A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- abs
- +
- power steering
- +
- area code
- KS
- left-hand drive
- +
- sunroof
- +
- catalyst
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-PH4-665
Distributor assy
|
30100-PH4-665 |
— | ||
|
2
|
2
30101-PH2-005
Plate assy.
|
30101-PH2-005 |
— | ||
|
3
|
3
30102-PC6-005
Cap assy.
|
30102-PC6-005 |
— | ||
|
4
|
4
30103-PA5-005 HeadROTOR |
30103-PA5-005 |
US $11.34 |
||
|
5
|
5
30104-PH4-665
Control assy.
|
30104-PH4-665 |
— | ||
|
6
|
6
30110-PC6-005
O-ring
|
30110-PC6-005 |
— | ||
|
7
|
7
30111-PH2-005
Bush
|
30111-PH2-005 |
— | ||
|
8
|
8
30113-PD2-005
Coupling set
|
30113-PD2-005 |
— | ||
| replacement | |||||
|
8
|
8
30113-P01-005
Coupling set
|
30113-P01-005 |
— | ||
|
9
|
9
30114-PC6-005
Weight
|
30114-PC6-005 |
— | ||
|
10
|
10
30115-634-005
Point assy
|
30115-634-005 |
— | ||
|
11
|
11
30119-PC6-005
Screw kit
|
30119-PC6-005 |
— | ||
|
12
|
12
30120-PH4-005
Igniter unit
|
30120-PH4-005 |
— | ||
|
13
|
13
30121-PA0-661
Stator
|
30121-PA0-661 |
— | ||
|
14
|
14
30123-PC1-005
Magnet set
|
30123-PC1-005 |
— | ||
|
15
|
15
30126-PH4-901
Reluctor set
|
30126-PH4-901 |
— | ||
|
16
|
16
30131-PH4-663
Harness assy
|
30131-PH4-663 |
— | ||
|
17
|
17
30132-PC6-005
Packing
|
30132-PC6-005 |
— | ||
|
18
|
18
30133-PA0-661
Screw-washer
|
30133-PA0-661 |
— | ||
|
19
|
19
30134-PA0-661
Screw-washer
|
30134-PA0-661 |
— | ||
|
20
|
20
30137-PB9-601
Clamp
|
30137-PB9-601 |
— | ||
