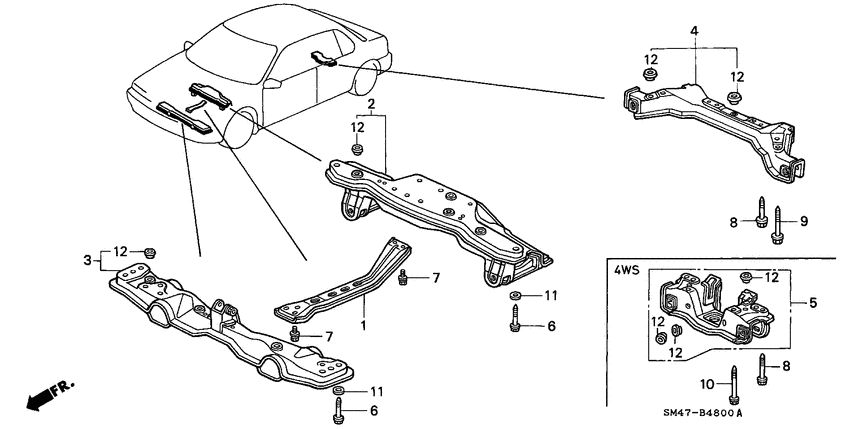

Cross beam Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0
- area code
- KE
- right-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-SM4-000
Beam
|
50100-SM4-000 |
— | ||
|
2
|
2
50200-SM4-E02 BeamRR. |
50200-SM4-E02 |
US $462.08 |
||
|
3
|
3
50250-SM4-A02 BeamFR. |
50250-SM4-A02 |
US $381.44 |
||
|
4
|
4
50300-SM4-G00 BeamRR. SUSPENSION CROSS |
50300-SM4-G00 |
US $276.48 |
||
|
6
|
6
90161-SF1-000
Bolt
|
90161-SF1-000 |
— | ||
|
7
|
7
90166-SF1-010 Bolt-washer10X21 |
90166-SF1-010 |
US $2.66 |
||
|
8
|
8
90176-SM4-000
Bolt
|
90176-SM4-000 |
— | ||
|
9
|
9
90177-SM4-010 BoltFLANGE, 12X136 |
90177-SM4-010 |
US $6.30 |
||
|
11
|
11
90506-SE0-000 WasherPLAIN, 12MM |
90506-SE0-000 |
US $9.54 |
||
|
12
|
12
91613-SE0-003 GrommetSUB FRAME, 15MM |
91613-SE0-003 |
US $3.18 |
