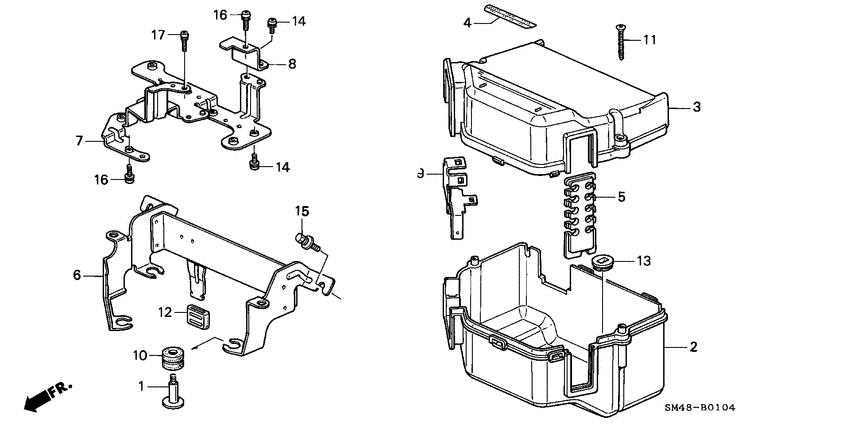

Control box cover (CARB.) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- LX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36017-PM3-004
Bolt
|
36017-PM3-004 |
— | ||
|
2
|
2
36019-PT0-004
Cover
|
36019-PT0-004 |
— | ||
|
3
|
3
36020-PT0-004
Cover
|
36020-PT0-004 |
— | ||
|
4
|
4
36022-PT1-Q01
Label
|
36022-PT1-Q01 |
— | ||
|
5
|
5
36024-PT1-Q01
Holder
|
36024-PT1-Q01 |
— | ||
|
6
|
6
36033-PT1-Q01
Stay comp
|
36033-PT1-Q01 |
— | ||
|
7
|
7
36034-PT0-004
Base
|
36034-PT0-004 |
— | ||
|
8
|
8
36035-PT0-004
Stay
|
36035-PT0-004 |
— | ||
|
9
|
9
36038-PT0-004
Stay
|
36038-PT0-004 |
— | ||
|
10
|
10
36053-PM6-A01
Rubber
|
36053-PM6-A01 |
— | ||
|
11
|
11
36057-PH7-004
Screw
|
36057-PH7-004 |
— | ||
|
12
|
12
36058-PA0-004
Rubber
|
36058-PA0-004 |
— | ||
|
13
|
13
36093-PG6-004
Cap
|
36093-PG6-004 |
— | ||
|
14
|
14
90041-PH2-004 Screw-washer5X8 |
90041-PH2-004 |
US $1.96 |
||
|
15
|
15
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
15
|
15
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
US $0.59 |
||
|
16
|
16
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
17
|
17
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
