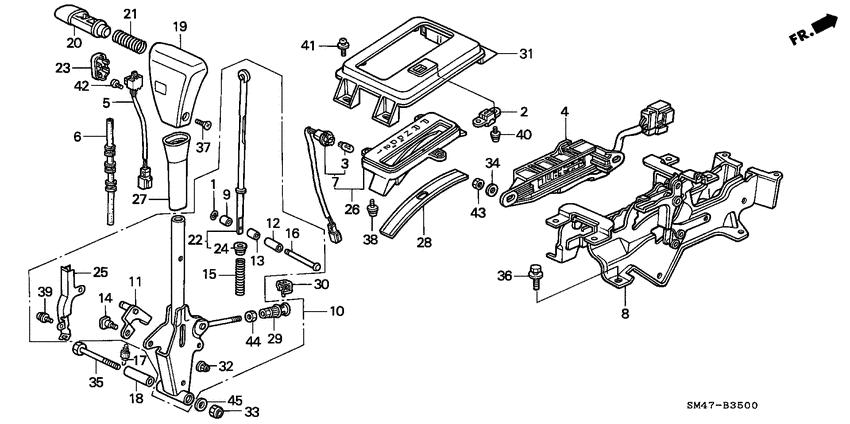

Select lever (LH) Diagram Honda ACCORD
- Year
- 1990
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0I
- area code
- KW
- left-hand drive
- +
- made in japan
- +
- sunroof (glass)
- +
- heated seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
3
|
3
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
4
|
4
35700-SM4-A91
Switch assy
|
35700-SM4-A91 |
— | ||
|
5
|
5
35720-SM4-003ZC
Switch assy
|
35720-SM4-003ZC |
— | ||
|
5
|
5
35720-SM4-003ZF
Switch assy
|
35720-SM4-003ZF |
— | ||
|
5
|
5
35720-SM4-003ZB
Switch assy
|
35720-SM4-003ZB |
— | ||
|
5
|
5
35720-SM4-003ZE
Switch assy
|
35720-SM4-003ZE |
— | ||
|
6
|
6
35721-SM4-980
Tube assy
|
35721-SM4-980 |
— | ||
|
7
|
7
37700-SM4-003
Lamp assy.
|
37700-SM4-003 |
— | ||
|
8
|
8
54020-SM4-G33 Bracket comp.CONTROL |
54020-SM4-G33 |
US $72.32 |
||
|
9
|
9
54026-SJ4-980 CollarLOCK PIN |
54026-SJ4-980 |
US $2.59 |
||
|
10
|
10
54100-SM4-A82
Lever comp
|
54100-SM4-A82 |
— | ||
|
11
|
11
54110-SM4-A80
Stopper comp
|
54110-SM4-A80 |
— | ||
|
12
|
12
54113-SJ4-981 CollarLOCK PIN |
54113-SJ4-981 |
US $3.08 |
||
|
13
|
13
54114-SE0-980 CollarLOCK PIN |
54114-SE0-980 |
US $3.08 |
||
|
14
|
14
54115-SJ4-980 BoltSELECTOR STOPPER |
54115-SJ4-980 |
US $3.50 |
||
|
15
|
15
54117-692-980
Spring
|
54117-692-980 |
— | ||
|
16
|
16
54119-SJ4-980 PinLOCK |
54119-SJ4-980 |
US $6.02 |
||
|
17
|
17
54120-SM4-982
Spring assy
|
54120-SM4-982 |
— | ||
|
18
|
18
54123-SM4-980 CollarSELECT LEVER |
54123-SM4-980 |
US $6.30 |
||
|
19
|
19
54131-SM4-A82ZE
Knob
|
54131-SM4-A82ZE |
— | ||
|
19
|
19
54131-SM4-A82ZA
Knob
|
54131-SM4-A82ZA |
— | ||
|
19
|
19
54131-SM4-A82ZC
Knob
|
54131-SM4-A82ZC |
— | ||
|
19
|
19
54131-SM4-A82ZB
Knob
|
54131-SM4-A82ZB |
— | ||
|
20
|
20
54132-SM4-A80
Knob
|
54132-SM4-A80 |
— | ||
|
21
|
21
54133-SA5-981
Spring
|
54133-SA5-981 |
— | ||
|
22
|
22
54136-SM4-980
Rod comp
|
54136-SM4-980 |
— | ||
|
23
|
23
54139-SM4-932ZB
Plate
|
54139-SM4-932ZB |
— | ||
|
23
|
23
54139-SM4-932ZE
Plate
|
54139-SM4-932ZE |
— | ||
|
23
|
23
54139-SM4-932ZA
Plate
|
54139-SM4-932ZA |
— | ||
|
23
|
23
54139-SM4-932ZC
Plate
|
54139-SM4-932ZC |
— | ||
|
24
|
24
54142-SA5-980 BushGUIDE |
54142-SA5-980 |
from US $3.57 |
||
|
25
|
25
54205-SM4-A81
Guide
|
54205-SM4-A81 |
— | ||
|
26
|
26
54210-SM4-A82
Lamp assy.
|
54210-SM4-A82 |
— | ||
| replacement | |||||
|
26
|
26
54210-SM4-A83
Lamp assy.
|
54210-SM4-A83 |
— | ||
|
27
|
27
54217-SM4-980
Outer
|
54217-SM4-980 |
— | ||
|
28
|
28
54222-SM4-980
Cover
|
54222-SM4-980 |
— | ||
|
29
|
29
54361-SE0-980 PipeCONTROL WIRE ADJUSTING |
54361-SE0-980 |
US $8.68 |
||
|
30
|
30
54363-SE0-980
Pin
|
54363-SE0-980 |
— | ||
|
31
|
31
54711-SM4-G81
Escutcheon
|
54711-SM4-G81 |
— | ||
|
32
|
32
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
33
|
33
90308-SA0-981 NutSELF-LOCK, 6MM |
90308-SA0-981 |
from US $1.82 |
||
|
34
|
34
90438-671-000 WasherSPECIAL, 6MM |
90438-671-000 |
US $7.38 |
||
|
35
|
35
92201-06065-0H BoltHEX., 6X55 |
92201-06065-0H |
US $0.74 |
||
|
36
|
36
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
37
|
37
93700-050-060-G
Screw
|
93700-050-060-G |
— | ||
|
38
|
38
93891-050-080-8 Screw-washer5X8 |
93891-050-080-8 |
from US $0.44 |
||
|
39
|
39
93892-040-060-G Screw-washer4X6 |
93892-040-060-G |
US $0.44 |
||
|
41
|
41
93894-050-100-8 Screw-washer5X10 |
93894-050-100-8 |
from US $0.44 |
||
|
42
|
42
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
43
|
43
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
43
|
43
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
44
|
44
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
45
|
45
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
