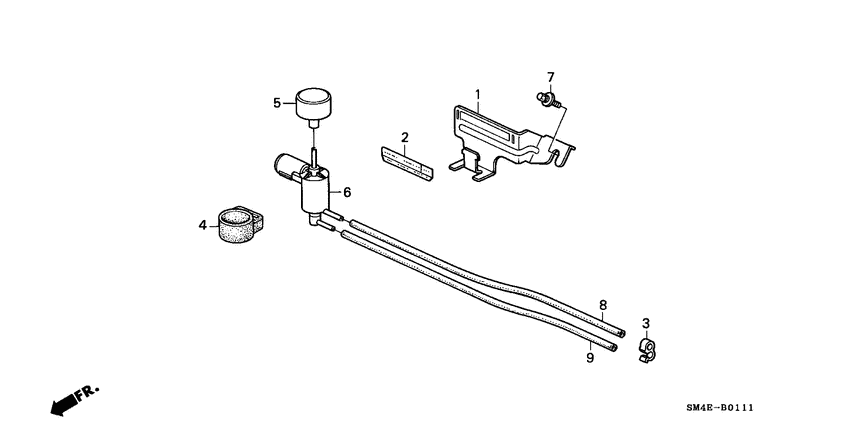

Control device (AT) Diagram Honda ACCORD
- Year
- 1992
- Model code
- ACCORD
- Sales region
- General
- Engine
- F20A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 2.0
- area code
- KB
- left-hand drive
- +
- made in japan
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36001-PT1-F51
Stay
|
36001-PT1-F51 |
— | ||
|
2
|
2
36022-PT1-F51
Label
|
36022-PT1-F51 |
— | ||
|
3
|
3
36024-PM1-G01
Clamp
|
36024-PM1-G01 |
— | ||
|
4
|
4
36053-PT1-E01
Rubber
|
36053-PT1-E01 |
— | ||
|
5
|
5
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
6
|
6
36161-PT1-F01
Valve assy.
|
36161-PT1-F01 |
— | ||
|
7
|
7
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
7
|
7
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
US $0.59 |
||
|
8
|
8
95005-351-701-L Tube3.5X170 (95005-35001-10M) |
95005-351-701-L |
US $2.37 |
||
|
9
|
9
95005-351-701-2 Tube3.5X170 (95005-35001-10M) |
95005-351-701-2 |
US $2.37 |
||
